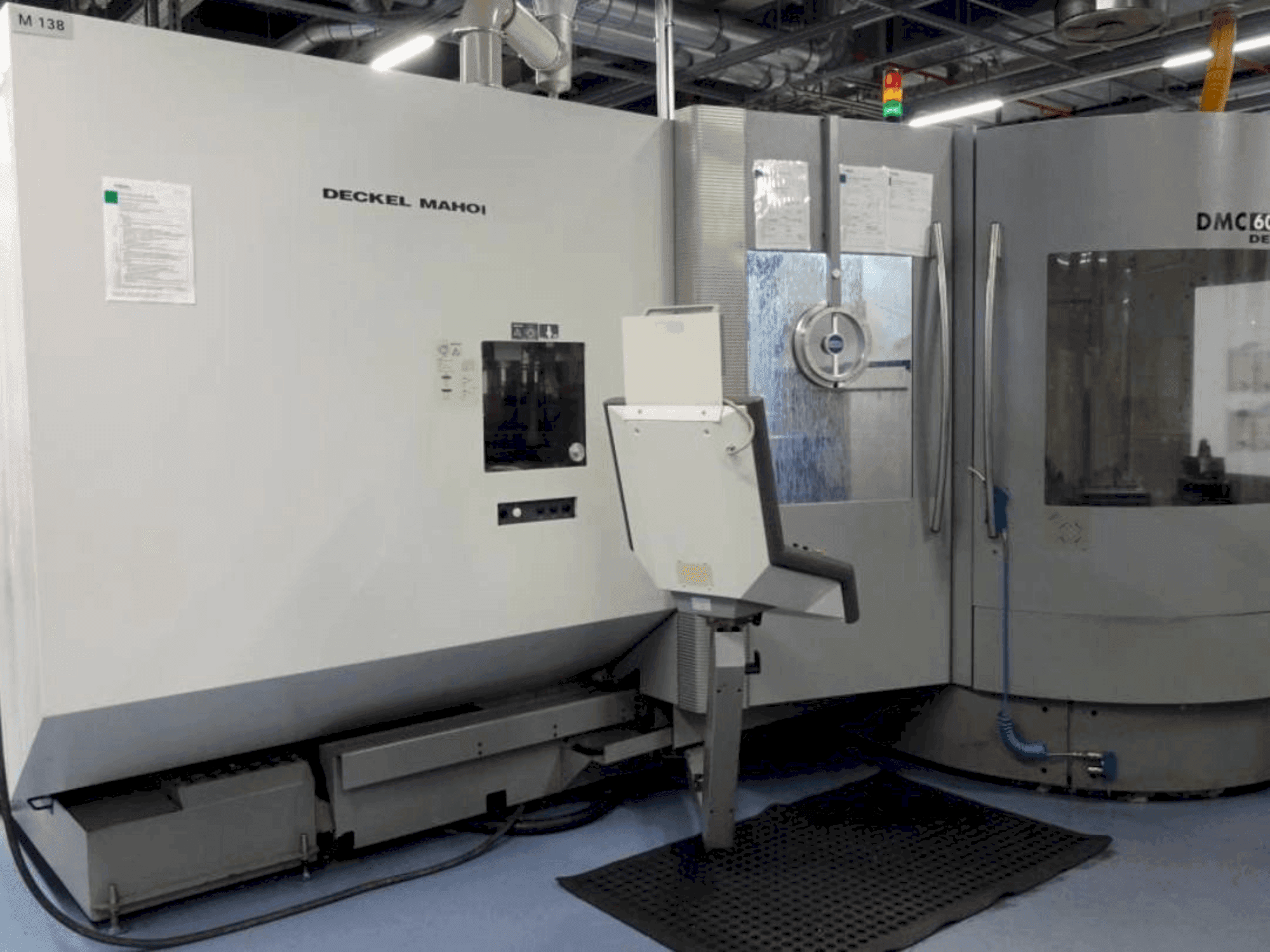

Front view of DECKEL DMC 60 T RS3  machine

DECKEL - DMC 60 T RS3DE-MIL-DEC-2006-00005

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis DECKEL DMC 60 T RS3 was manufactured in 2006. It features a HEIDENHAIN ITNC 530 control unit, a spindle speed range up to 18000 1/min, and a robust tool magazine with 180 tools HSK63. The machine dimensions are 5700 mm in width, 6500 mm in depth, and 2400 mm in height, weighing 9800 kg. Ideal for complex machining tasks, the DECKEL DMC 60 T RS3 machine we have for sale. Contact us for more information.

Overview

  • brand: DECKEL
  • year: 2006
  • MODEL: DMC 60 T RS3
  • production hours: 63996
  • application type: Milling
  • Location: Germany
  • machine type: Universal Machining Centre
  • availability: Sold
  • control unit brand: HEIDENHAIN

Technical Information - DECKEL DMC 60 T RS3

General Data

  • Measurements width: 6500 mm
  • Measurements depth: 5700 mm
  • Measurements height: 2400 mm
  • Machine weight: 9800 kg

Control Unit

  • Model: ITNC 530
  • Brand: HEIDENHAIN

Main drive

  • Spindle speed range: 18000 rpm 1/MIN
  • Number of axis: 5

Movement

  • X-AXIS Movement: 780 mm
  • Y-AXIS Movement: 560 mm
  • Z-AXIS Movement: 560 mm

Tools

  • Number of index: 180

Media

  • Power consumption: 64.2 kW

    Additional equipment

    • - Tool magazine with 180 tools (HSK63)
    • - Tool monitoring (external)
    • - Coolant tank with 980 liters volume

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Tapper size: hsk 63a - din69893
        • - Control model: itnc 530
        • - Ikz (yes/no): yes, 40 bar
        • - Tool places: 180
        • - Pallet dimensions: 500 x 630 mm
        • - Recommendations: manual / technical documentation available
      • Qualitative Machine Benefits:
        • - All maintenance has been performed according to the manufacturer

      Extra information

      • - The machine is not under power anymore

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
