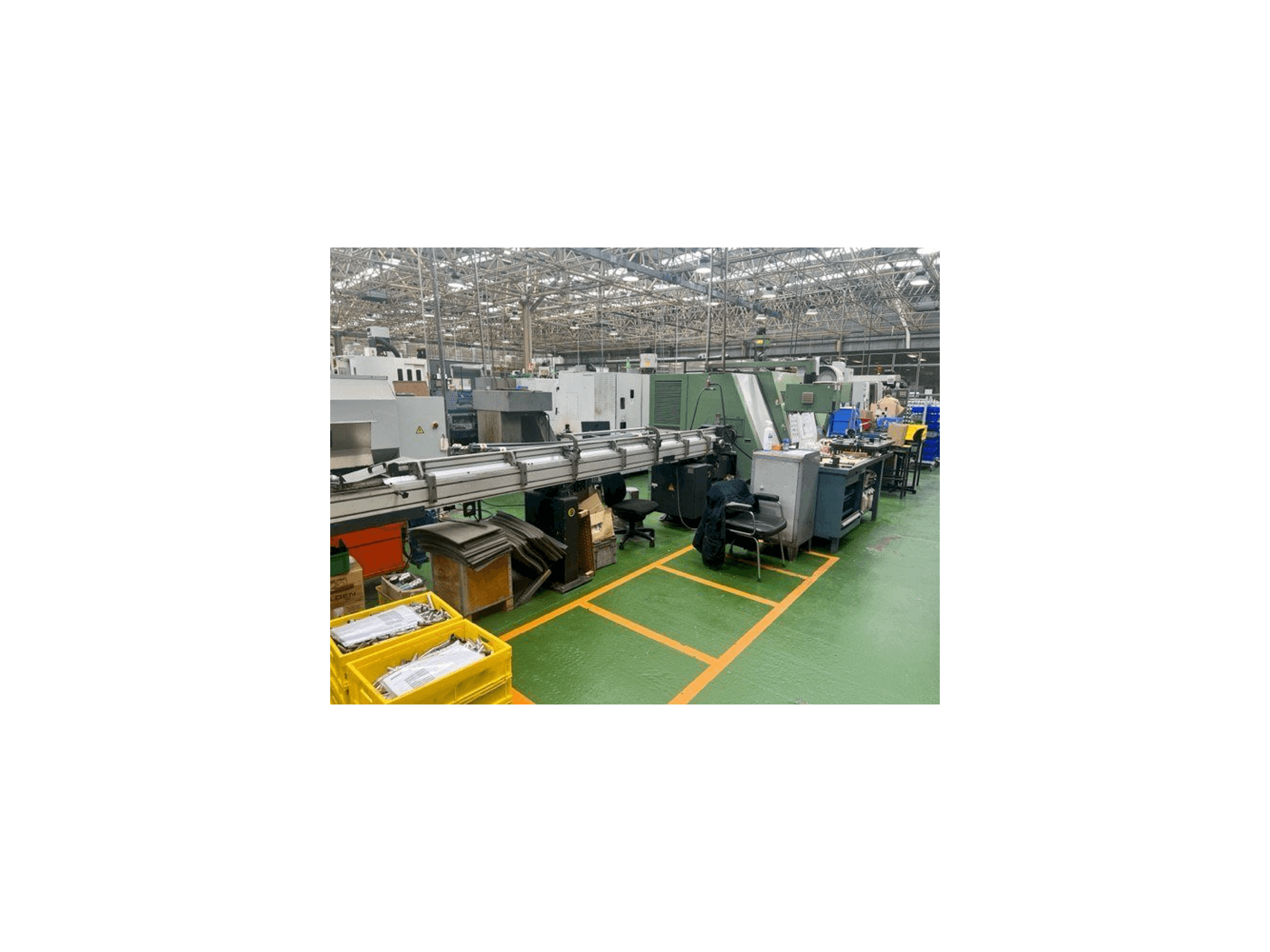

Front view of DANOBAT Danumeric 650 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DANOBAT Danumeric 650

Photo Gallery

DANOBAT - Danumeric 650ES-TUR-DAN-1989-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Danobat Danumeric 650 Lathe

Show in original language

This Danobat Danumeric 650 Lathe was manufactured in the year 1989. It is equipped with a Fagor 8025 T control unit and has 2 axis. The machine has a spindle speed of 25-4500 rpm.

Overview

brand: DANOBAT
year: 1989
MODEL: Danumeric 650
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
control unit brand: FAGOR

Technical Information - DANOBAT Danumeric 650

Control Unit

Control Brand: FAGOR
Control Model: 8025 T

Movement

Number of Axes: 2
X-axis Travel: 250 mm
Z-axis Travel: 650 mm

Technical Specification

Spindle Speed: 4500 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Diameter admitted on bench 500 mm.
Maximum diameter to be machined 300 mm.
Height at the center of the head 1000 mm.
Inner diameter of main shaft bearings 110 mm
Main shaft drilled to 79 mm
Shaft nose diameter 170 mm.
Shank diameter 90 mm.
Rod travel 120 mm.
Cone cm no. 4
Maximum thrust force 1000 kg.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
