DAEWOO ACE-V400
DAEWOO - ACE-V400
1998
Do you have further questions? Contact us.
Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DAEWOO ACE-V400 Vertical Machining Center

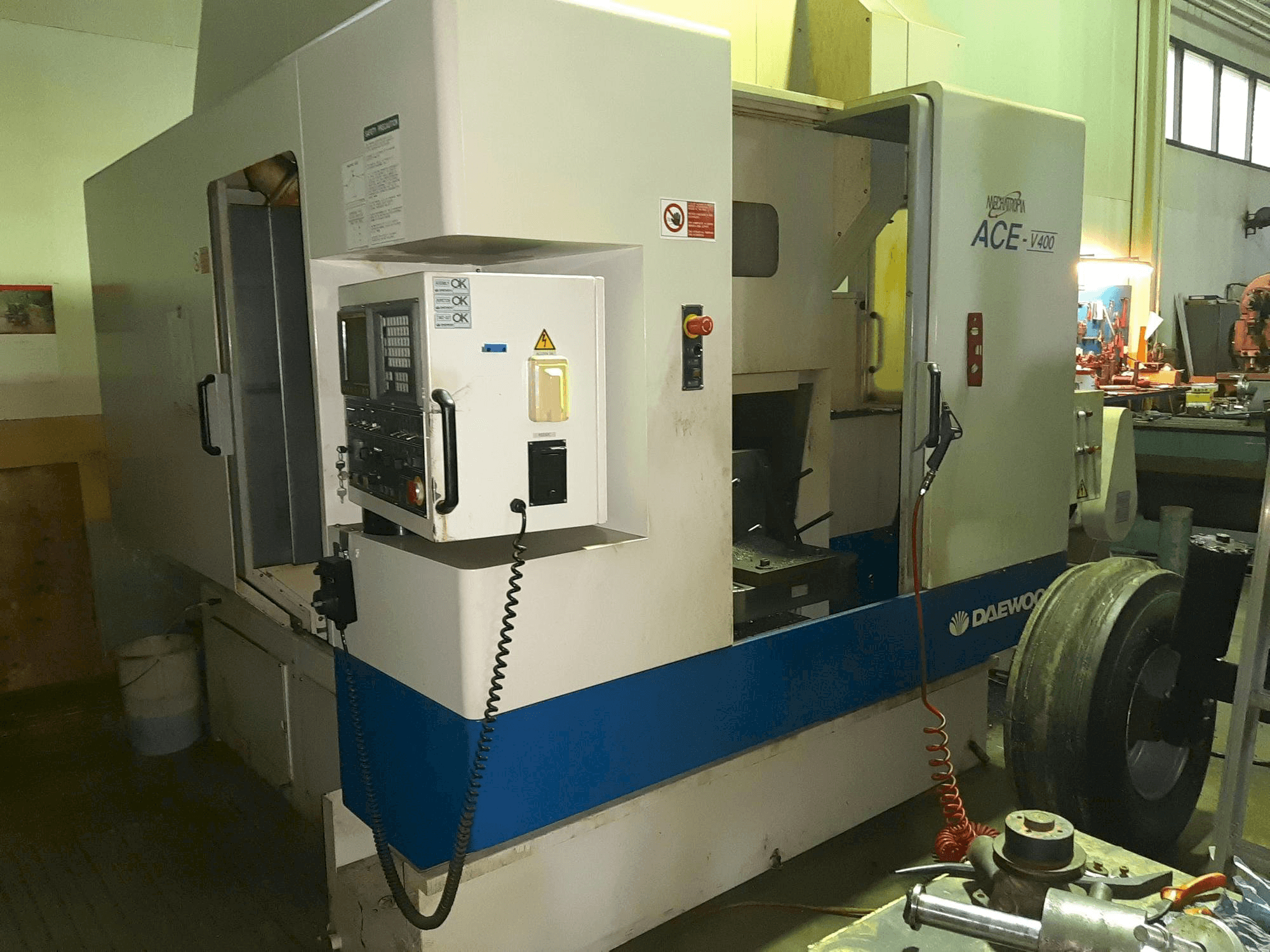

This DAEWOO ACE-V400 Vertical Machining Center was built in 1998 in Korea. Equipped with a FANUC Series O-M Control unit, this machine can operate with a spindle speed up to 8000 rpm.
Overview
- brand: DAEWOO
- year: 1998
- MODEL: ACE-V400
- application type: Milling
- Location: Finland
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: FANUC
- GINDUMAC ID: FI-MIL-DAE-1998-00001
Technical Information
General Data
- Measurements width: 2670 mm
- Measurements depth: 2200 mm
- Measurements height: 2950 mm
- Machine weight: 6000 kg
Control Unit
- Brand: FANUC
- Model: Series O-M
Main drive
- Spindle speed range: 8000 rpm 1/MIN
Movement
- X-AXIS Movement: 560 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 170 mm
Tools
- Slots in storage: 30
Media
- Main electronic connection: 220 V
- Chip conveyor: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
