Colgar PI 316/21

Photo Gallery

Colgar - PI 316/21IE-BEN-COL-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Colgar PI 316/21 Bending Machine

Show in original language

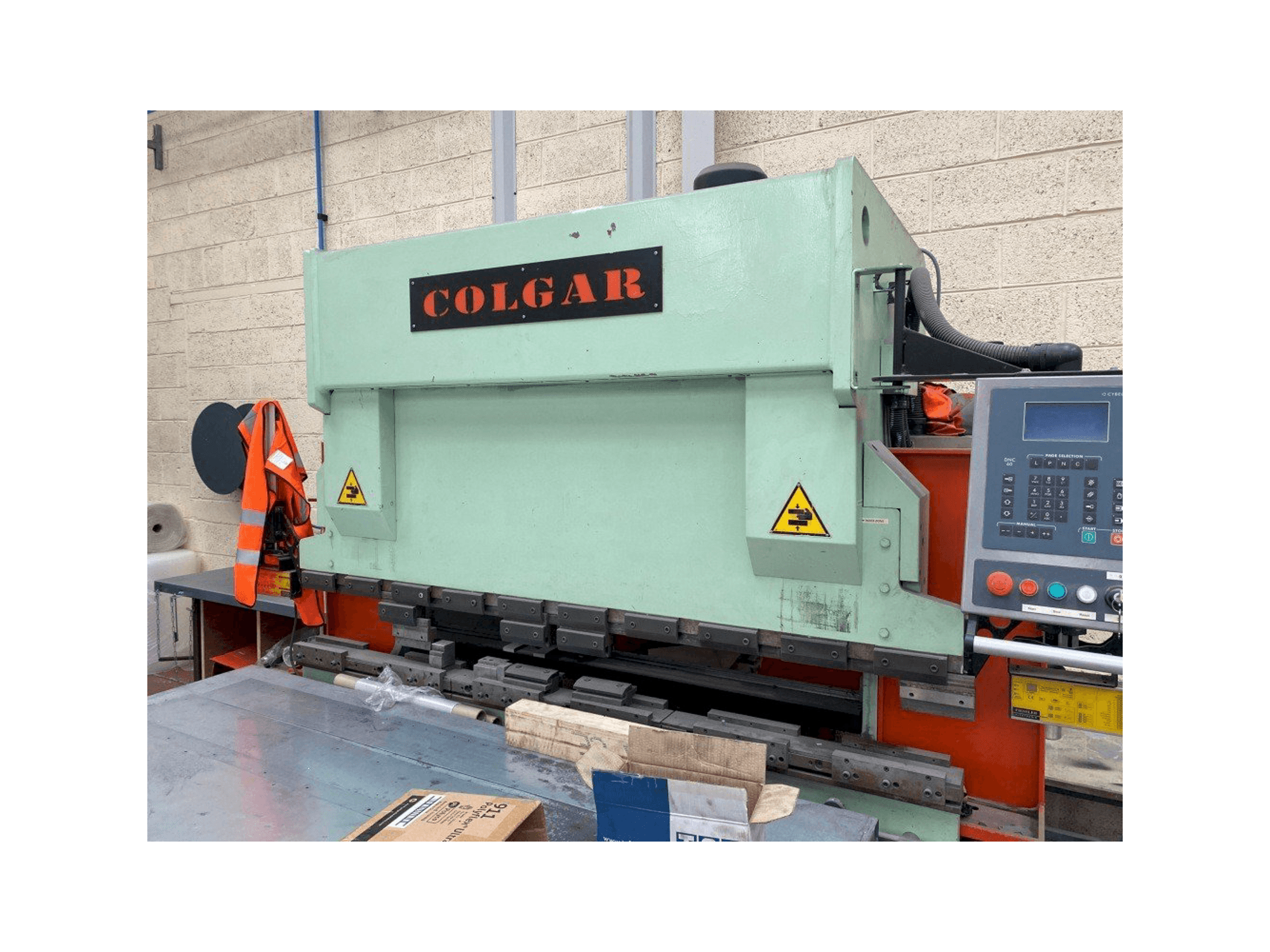

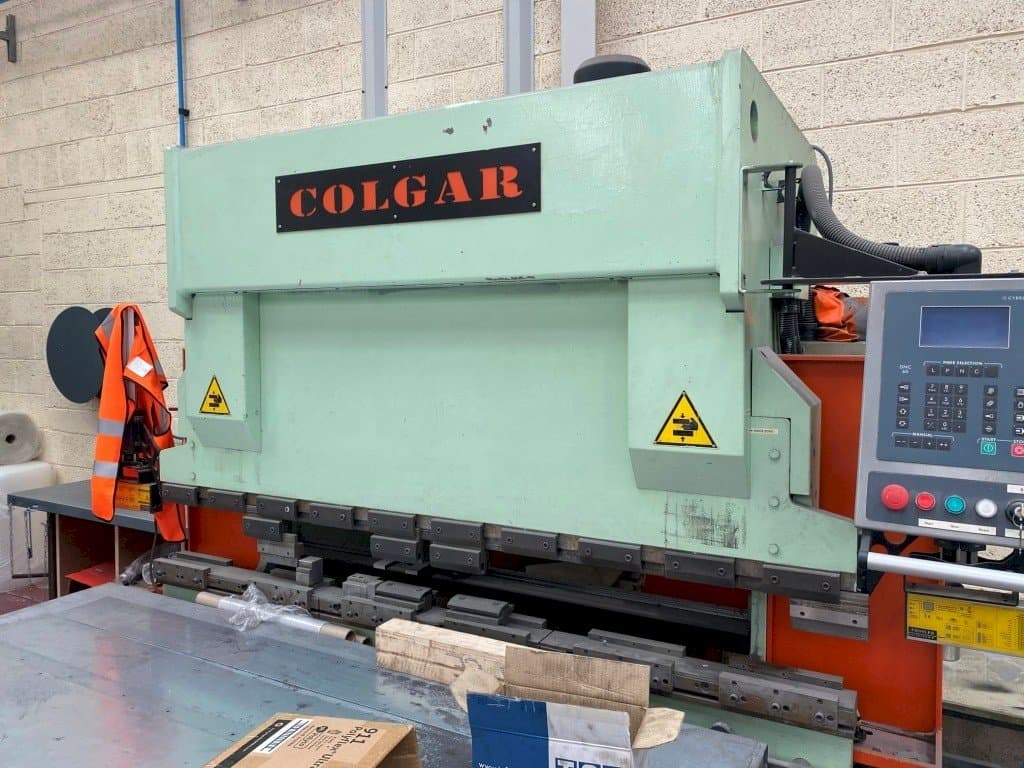

This Colgar PI 316/21 Bending Machine was built in Italy in the year 1999. It is equipped with a Cybelec DNC 60 control unit. This machine can works with a pressing force of 320 kN, and a bending length 2100 mm. It includes a full length of Eurostyle top tool, and a full length of EuroStyle Single Vee bottom tool.

Overview

brand: Colgar
year: 1999
MODEL: PI 316/21
application type: Bending
Location: Ireland
machine type: Hydraulic Press
control unit brand: CYBELEC

Technical Information - Colgar PI 316/21

Control Unit

Control Brand: CYBELEC
Control Model: DNC 60

Dimensions

Machine Depth: 1300 mm
Machine Height: 2150 mm
Machine Weight: 2200 kg

Technical Specification

Bending Length: 2100 mm
Pressing Force: 320 Kn

Additional Information

Additional equipment

Full Length of Eurostyle Top Tool
Full Length of EuroStyle Single Vee Bottom Tool

Machine Benefits

Qualitative Machine Benefits

Well maintained machine

Technical Machine Benefits

Back gauge with powered x & r axes. Manual z1 & z2 axes
2 x back gauge fingers
Footpedal with emergency stop
Fiesler light guards
Working stroke: 20-100mm
Approach speed: 110mm/s
Working speed: 5-22mm/s
Return speed: 140mm/sec
Installed power: 5kw

Machine History

Industries

Electrical panel builders

End product

Electrical panels

Material thickness

3 mm

Material type

Mildsteel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
