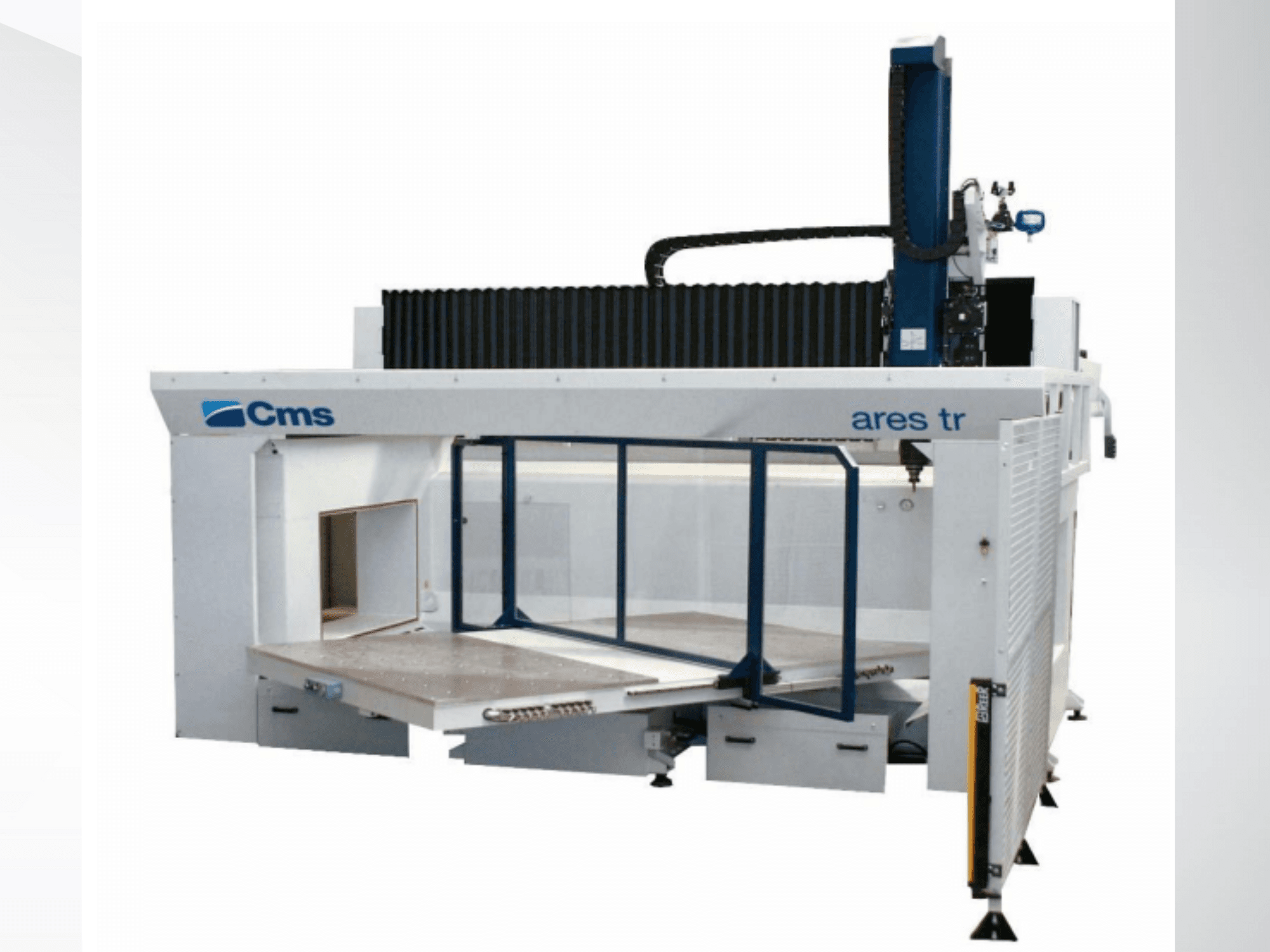

CMS - ARES-3618-TR-PX5-Z1200US-MIL-CMS-2022-00001

Addtional information

• Axes: 5

• Type: 5-Axis High-Speed Gantry Machining Center

• Structure: Movable bridge design; fixed table; all 5 axes interpolated

• Controller: FANUC 31i-B5

• Features: Dual Check Safety, High-Speed Smooth TCP, 3D cutter compensation, helical interpolation, tilted working plane, scaling, etc.

• PC: HP industrial PC, Windows 7 (32-bit), 2 GB RAM, 250 GB HDD

• Spindle power: 15 kW (S1) / 19 kW (S6-40%)

• Max speed: 24000 rpm

• Torque: 12.1 Nm (S1) / 15.4 Nm (S6)

• Cooling: Liquid (closed circuit)

• Tool interface: HSK 63F

• Bearings: Ceramic (front and rear)

• Rapid traverse: 80 m/min (X, Y) / 70 m/min (Z)

• Acceleration: 3 m/s²

• Accuracy (VDI-DGQ 3441):

• X: ±0.055 mm | Repeatability ±0.027 mm

• Y: ±0.040 mm | Repeatability ±0.020 mm

• Z: ±0.080 mm | Repeatability ±0.040 mm

• Tool Magazine:

• Type: 8-station automatic tool changer

• Tool weight: 3 kg (max 20 kg total)

• Max tool diameter: 200 mm

• Max tool length: 265 mm (rear) / 165 mm (front)

• Rotary table: Dual-table NC-controlled platform (rotation time ~7 s)

• Table size: 2 × (2400 × 1115 mm)

• Vacuum tables: 2 × (1900 × 1100 mm), aluminum, 28 mm thick

• Vacuum system: 2 × dry rotary pumps, 100 m³/h each, 3 kW per pump, 10 connections per manifold, 2 manifolds total

• Minimum lubrication unit: Oil mist with 3 L tank

• Alignment system: RENISHAW TS27R + calibrated bar

• De-ionized air blower for static removal

• Bellows protection: X/Y bellows + Z double scrapers

• Electrical cabinet: IP54, air-conditioned

• Compressed air system: 6 bar (90 PSI)

• Machine colors: RAL 7035 (light grey) & RAL 7037 (dust grey)

• Power Requirements:

• Voltage: 480 V ±5%, 3 phases, 60 Hz (UL transformer included)

• Installed power: approx. 50 kW

• Included Accessories:

• 8 × HSK 63F toolholders

• 8 × ETS 32/40 collets

• Tool presetting device

• Standard spanners and keys

• CD manuals (machine and control)
