Citizen Cincom A20 VII

Citizen - Cincom A20 VIIPL-TUR-CIT-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
CITIZEN Cincom A20 VII Lathe

Show in original language

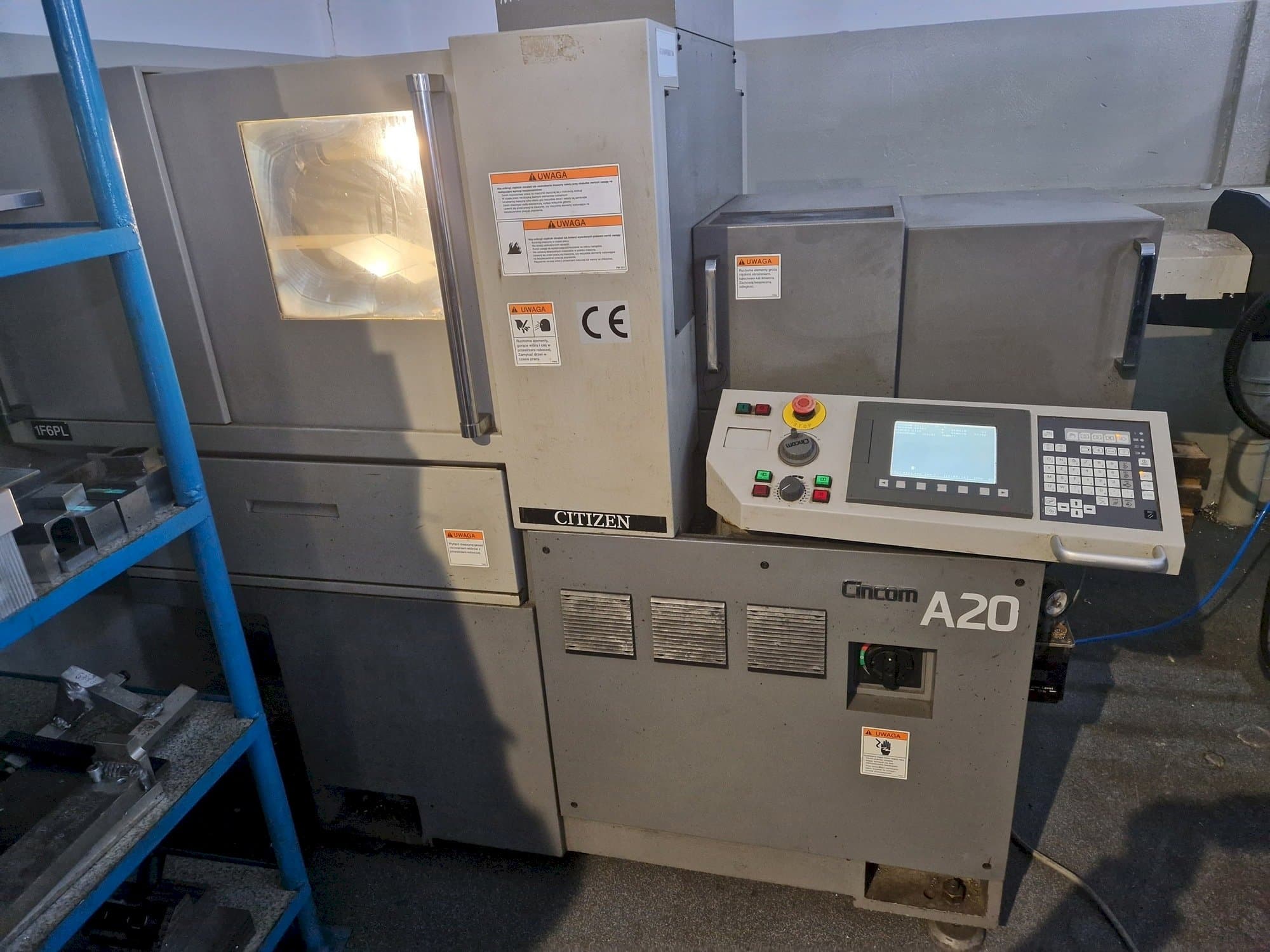

This CITIZEN Cincom A20 VII Lathe was made in 2006 in Japan and has 163 production hours. It is equipped with a Fanuc Series 32i control unit and has 5 axis. The machine has a spindle speed of 8000 rpm. And is in perfect and like new condition, it has never been used in production.

Overview

brand: Citizen
year: 2006
MODEL: Cincom A20 VII
production hours: 163
application type: Turning
Location: Poland
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Citizen Cincom A20 VII

Control Unit

Control Brand: FANUC
Control Model: Series 32i

Dimensions

Machine Depth: 1240 mm
Machine Height: 1750 mm
Machine Weight: 2400 kg

Movement

Number of Axes: 5

Technical Specification

Spindle Power: 2.2 kW
Spindle Speed: 8000 RPM

Additional Information

Additional equipment

Bar feeder LNS Express 220 with capability for bars: 2-20 mm. YOM: 2007

Machine Benefits

Qualitative Machine Benefits

The machine is in perfect and like new condition. It has never been used in production. For several years unused but well protected. It can be connected with the possibility of testing. All documentation available.

Technical Machine Benefits

Max. Machining diameter: 20 mm
Max. Machining length without re-chucking: 165 mm
Through-hole diameter: 31 mm
Index of spindle c- axis: 0. 001 deg
Sub spindle: max. Machining diameter: 20 mm max. Machining length: 80 mm
Rotary tools at vertical holder: number of tools: 4 pcs
Motor output (ac servo motor) 0. 75 kw
Turning tools: 5 pcs drilling tools front: 4 pcs drilling tools back: 8 pcs

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
