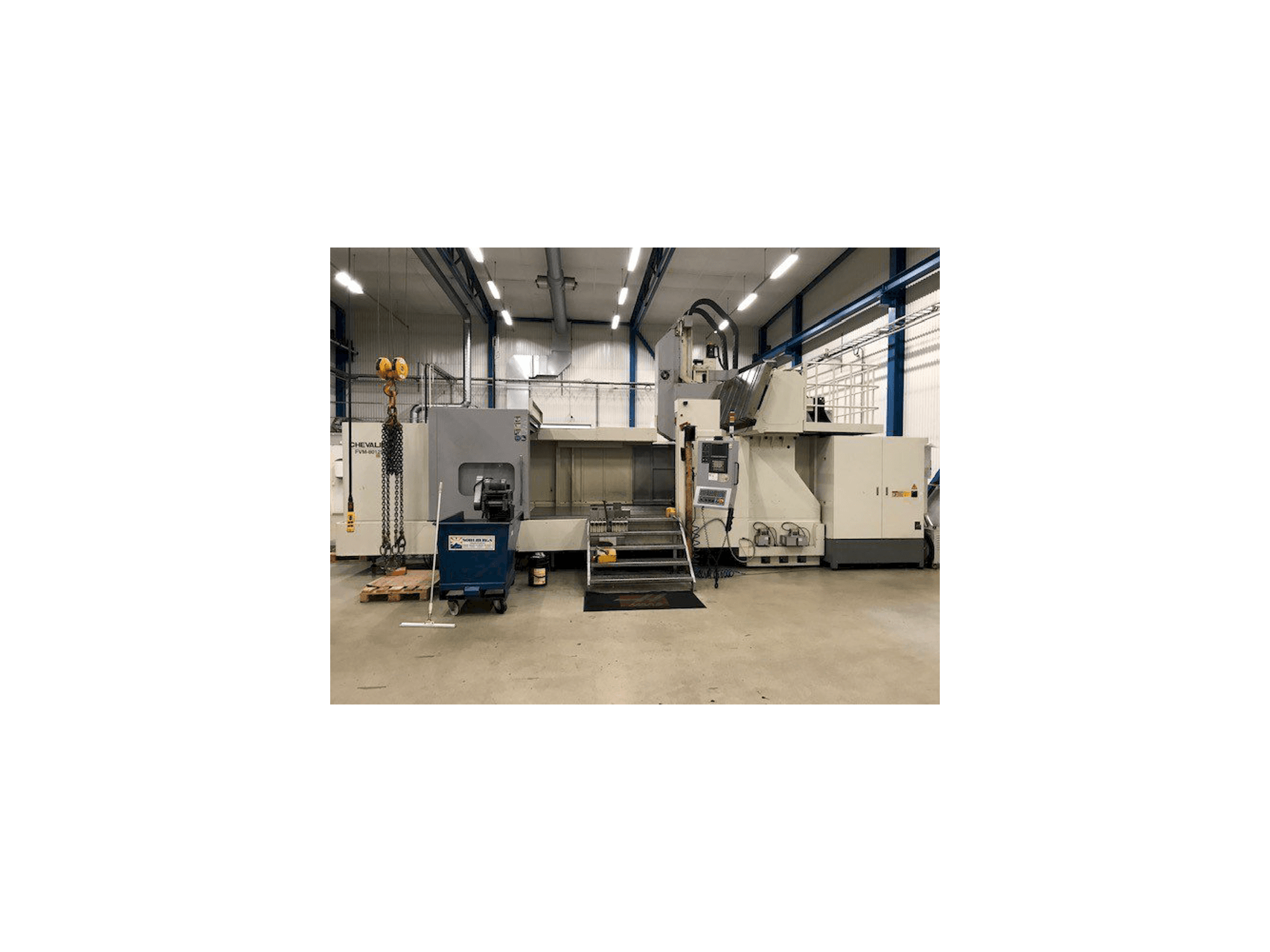

Front view of Chevalier FVM-80125DC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Chevalier FVM-80125DC

Photo Gallery

Chevalier - FVM-80125DCSE-MIL-CHE-2010-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Chevalier FVM-80125DC Milling Machine

Show in original language

This Chevalier FVM-80125DC Milling Machine was built in Taiwan in 2010. It is operated through a FANUC OiM Control unit. This heavy duty, double column, mould making machining centre is capable of working with a spindle speed up to 6000 rpm.

Overview

brand: Chevalier
year: 2010
MODEL: FVM-80125DC
application type: Milling
Location: Sweden
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Chevalier FVM-80125DC

Control Unit

Control Brand: FANUC
Control Model: OiM

Dimensions

Machine Depth: 5300 mm
Machine Height: 5700 mm
Machine Weight: 37000 kg
Table Length: 3200 mm
Table Width: 1800 mm

Movement

X-axis Travel: 3200 mm
Y-axis Travel: 2100 mm
Z-axis Travel: 1000 mm

Technical Specification

Max. Tool Weight: 20 kg
Number of Tools: 60
Spindle Power: 26 kW
Spindle Speed: 6000 RPM
Through-spindle Coolant: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Fanuc manual guide control option
Automatic lubrication system

Technical Machine Benefits

Remote jog handle
Through spindle coolant 30 bar
Coolant jet arround spindle with side cooling
X/y c3 class hollow ball screws with oil coolant system
Chain type chip conveyor in y-axis
Spindle oil cooling system
Dual screw type chip conveyor on x-axis
Box way y / z: 175/70
Linear guides in x: 5,800 x 55
Feed rate: 1-7,000mm/min

Machine History

Industries

Mould making industry

End product

Moulds

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
