Chevalier 1418 VMC-40

Photo Gallery

Chevalier - 1418 VMC-40CZ-MIL-CHE-2009-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

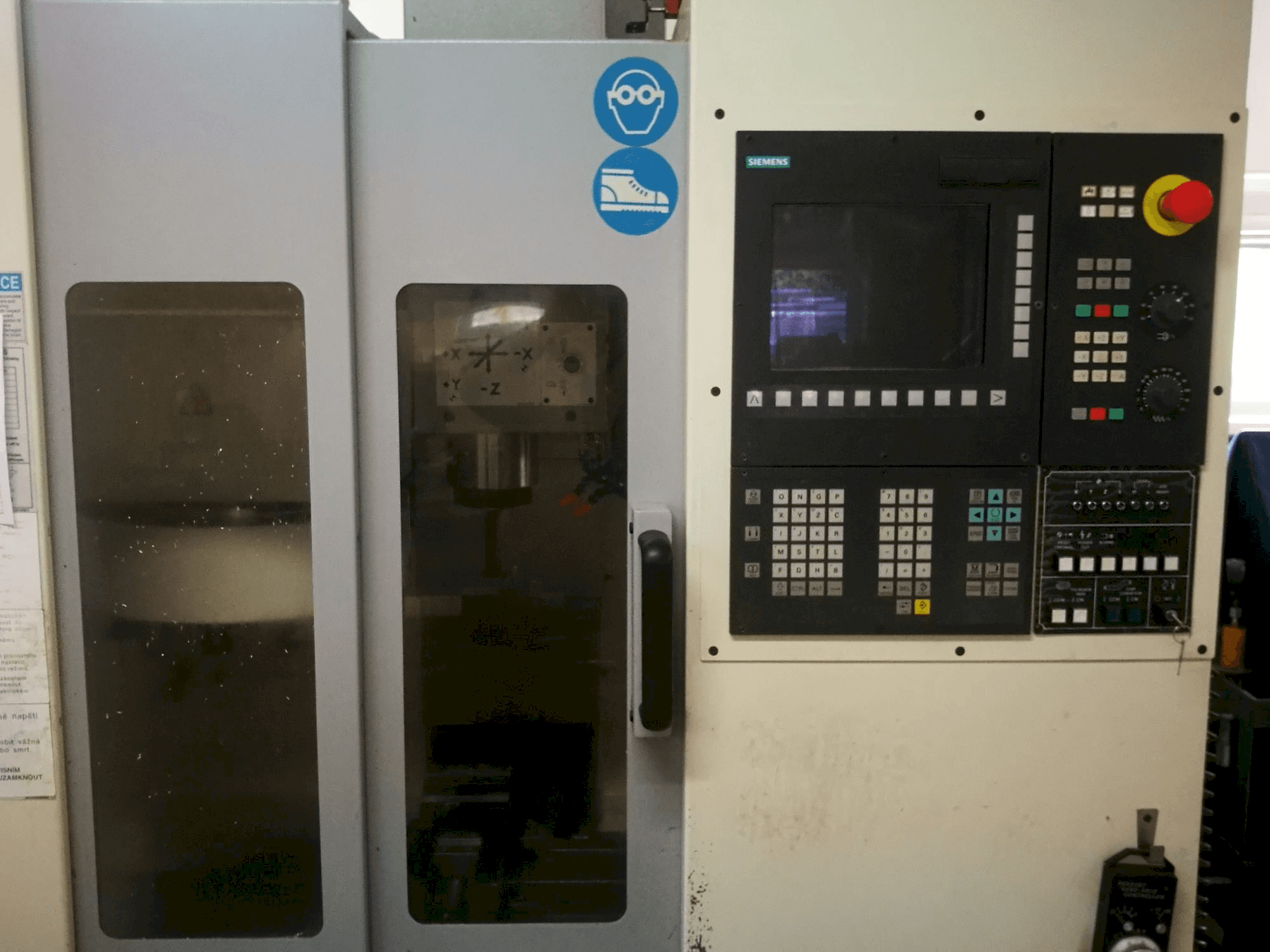

Chevalier 1418 VMC-40 Vertical Machining Center

Show in original language

This Chevalier 1418 VMC-40 Vertical Machining Center was manufactured in the year 2009 in Taiwan. It has a production history of approximately 18000 working hours. It is operated through a Siemens 802 DSL control unit. It can work with a spindle speed up to 10000 rpm. It includes a chip conveyor, and a 10 tool holders.

Overview

brand: Chevalier
year: 2009
MODEL: 1418 VMC-40
production hours: 18000
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Chevalier 1418 VMC-40

Control Unit

Control Brand: SIEMENS
Control Model: 802 DSL

Dimensions

Machine Depth: 1500 mm
Machine Height: 2110 mm
Machine Weight: 2000 kg
Table Length: 700 mm
Table Width: 320 mm

Movement

X-axis Travel: 450 mm
Y-axis Travel: 350 mm
Z-axis Travel: 380 mm

Technical Specification

Max. Tool Weight: 3 kg
Spindle Power: 8.5 kW
Spindle Speed: 10000 RPM
Tool Stations: 12

Additional Information

Additional equipment

10 tool holders

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

4th axis ready
Handwheel
Rapid feedrate on x, y, z axes 36/36/36 m/min.
Cutting feedrate 10000 mm/min.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
