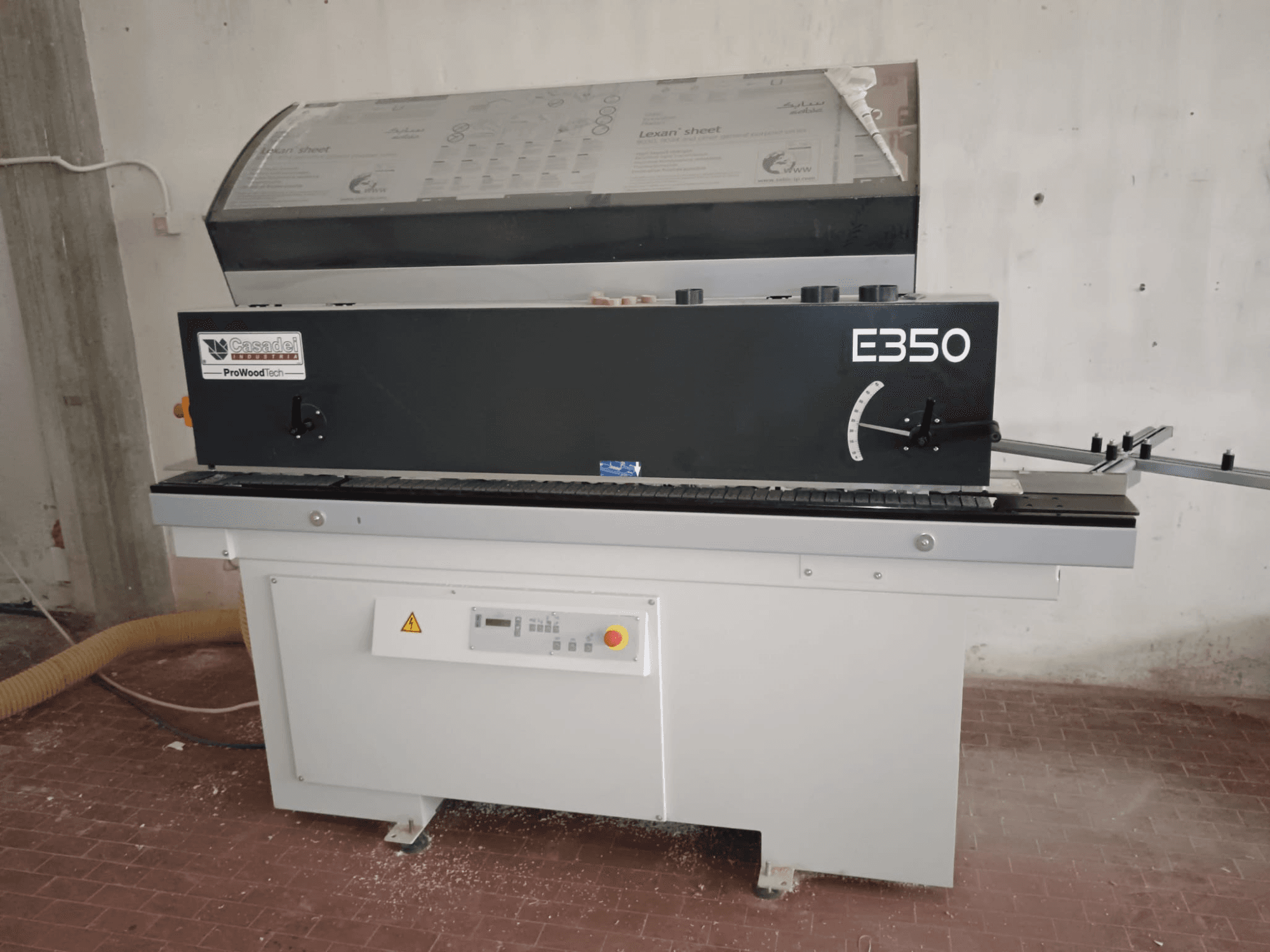

This CASADEI Bordatrice E350PM was manufactured in 2022. It features a panel height range of 10-45 mm and supports edge band thickness from 0.4 to 2 mm. The machine operates at a feed belt speed of 7 m/min, with a glue pot heating power of 1490 W. Consider the opportunity to buy this CASADEI Bordatrice E350PM edgebander. Contact us for more information.
Overview
- brand: CASADEI
- year: 2022
- MODEL: Bordatrice E350PM
- application type: Edge Banding
- Location: Italy
- machine type: Edgebander
Technical Information - CASADEI Bordatrice E350PM
Dimensions
- Machine Height: 1445 mm
- Machine Length: 2740 mm
Additional Information
Panel height: 10–45 mm
Feed belt speed: 7 m/min
Edge band thickness: 0.4–2 mm
Minimum panel width: 210 mm
Minimum panel length: 600 mm
Minimum distance between panels: 95 mm
Extendable panel support opening: 310 mm
Operating pneumatic pressure: 0.65 MPa (6.5 bar)
Average air consumption: 320 Nl/cycle
Glue pot heating power: 1490 W
Machine overall dimensions (operating mode): 2740 x 1445 x 945 mm (L x H x D)
Extraction air speed: 30 m/s
Extraction air consumption: 950 m³/h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
