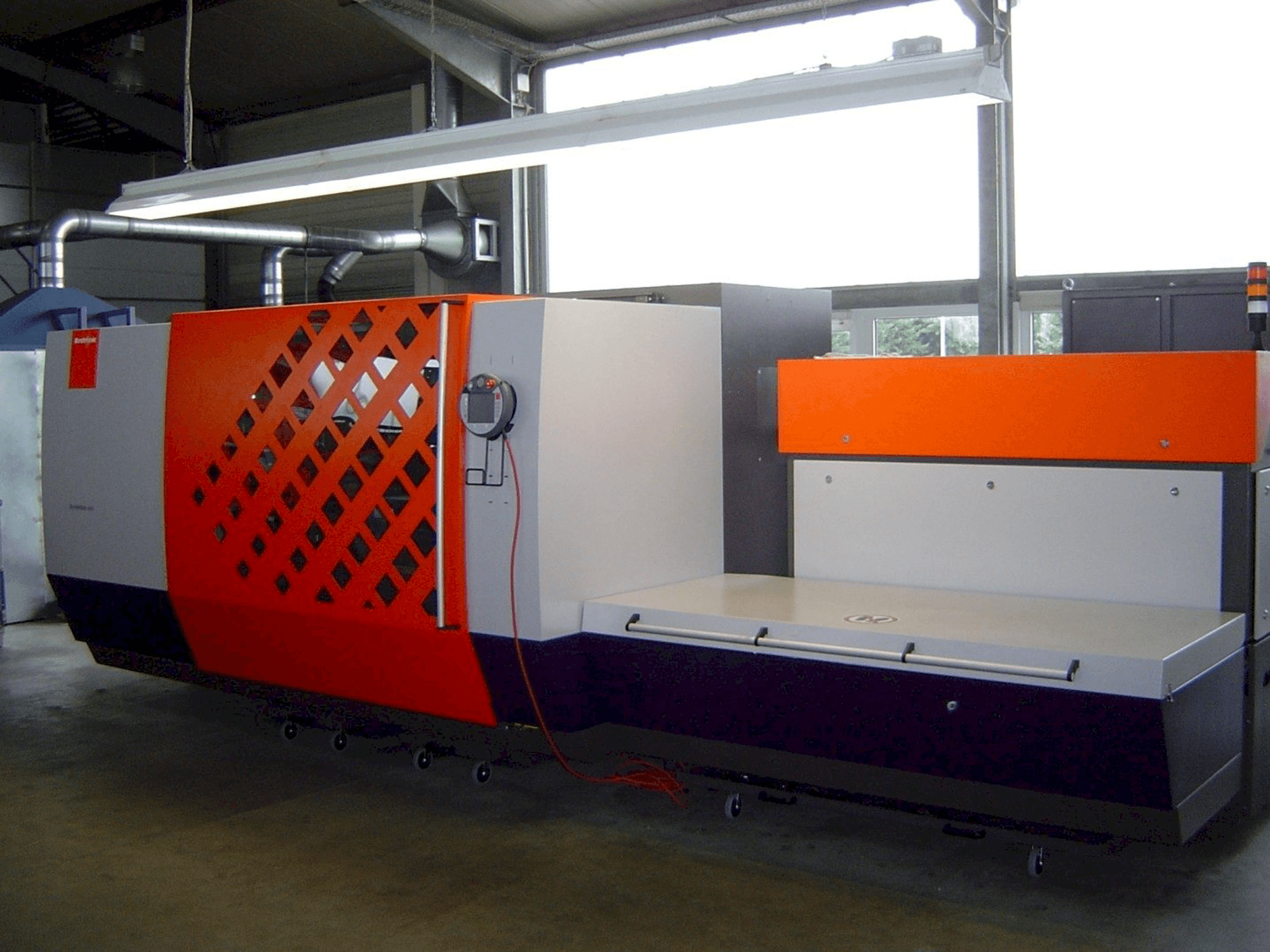

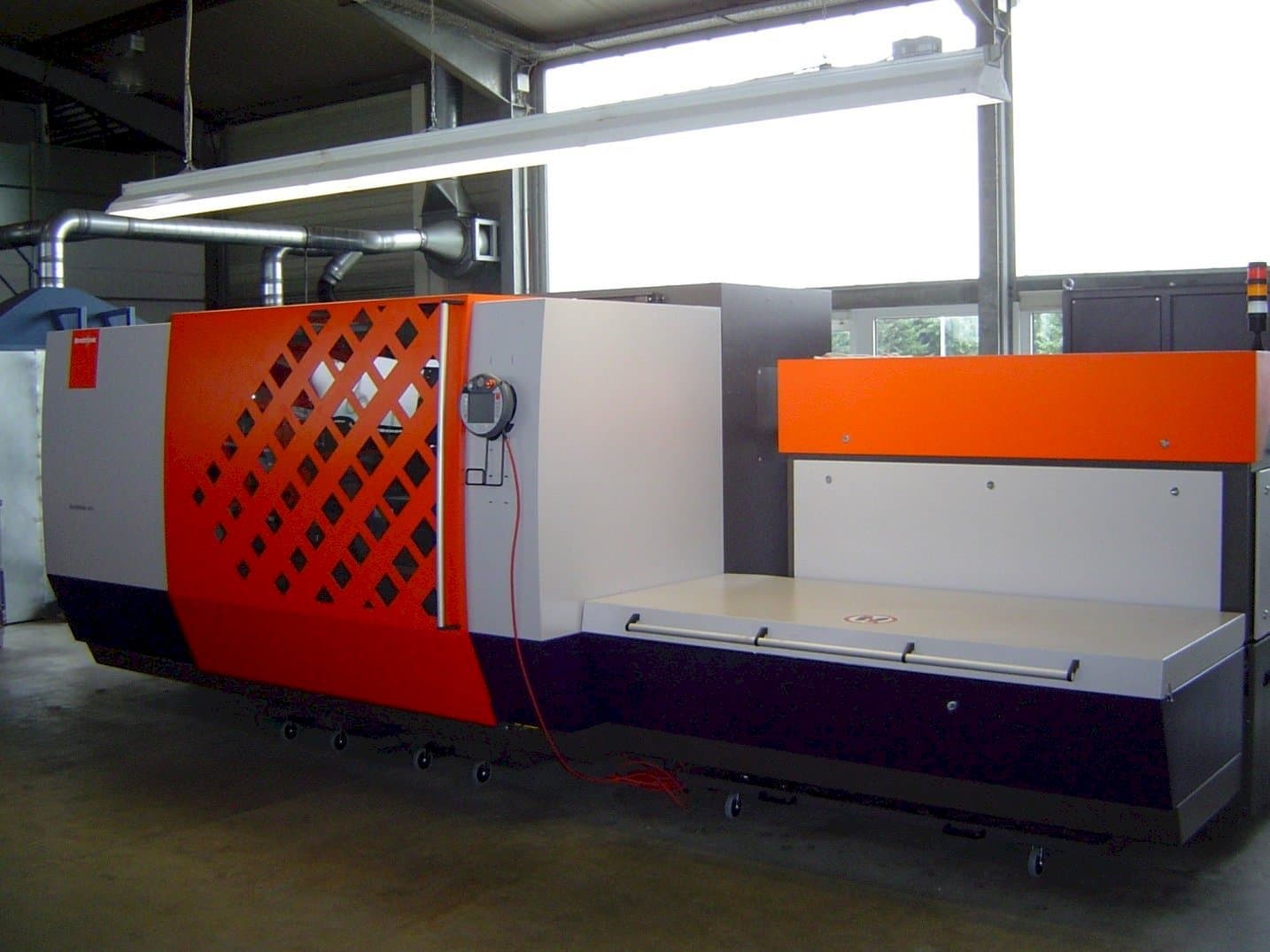

Front view of Bystronic ByVention 3015 machine
Front view of Bystronic ByVention 3015 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Bystronic - ByVention 3015DE-LAS-BYS-2007-00004

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Bystronic ByVention 3015 Laser Cutting Machine was manufactured in 2007 and has 25983 hours of which 19511 are cutting hours. It is operated through a Bystronic control panel with a touch screen. This machine has a laser power of 2,2 kW.

Overview

  • brand: Bystronic
  • year: 2007
  • MODEL: ByVention 3015
  • production hours: 25983
  • application type: Cutting
  • Location: Germany
  • machine type: CO2 Laser Cutting Machine
  • availability: Sold
  • control unit brand: BYSTRONIC

Technical Information - Bystronic ByVention 3015

General Data

  • Measurements width: 6000 mm
  • Measurements depth: 6000 mm
  • Measurements height: 2150 mm
  • Machine weight: 13500 kg

Control Unit

  • Model: control panel with touch screen
  • Brand: BYSTRONIC

Main drive

  • Laserpower: 2,2 kw

Movement

  • X-AXIS Movement: 1562 mm
  • Y-AXIS Movement: 772 mm
  • Z-AXIS Movement: 100 mm

Max Material thickness

  • Steel: 8 mm
  • Stainless steel: 6 mm
  • Aluminum: 4 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Nominal sheet size: 3000x1500 mm, 2500x1250mm, 2000x1000mm
    • Qualitative Machine Benefits:
      • - In 2017, a major glass overhaul was performed
      • - 2018 bearing cartridges incl. Maintenance was replaced at 20,000 operating hours.
      • - 2019 table drive motor replaced
      • - 2021 control panel exchanged

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
