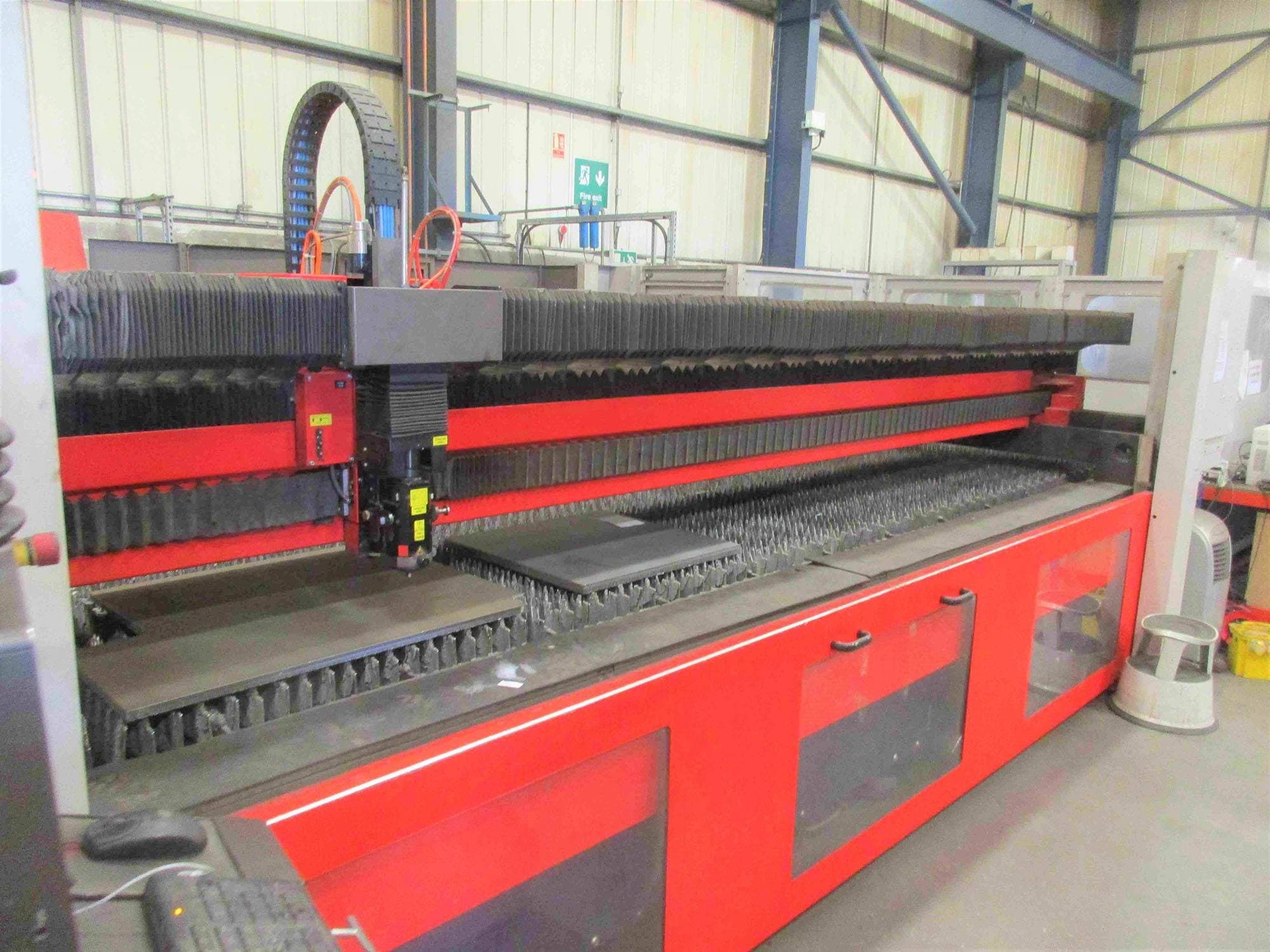

Front view of Bystronic Bystar L 4025-65 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bystronic Bystar L 4025-65

Photo Gallery

Bystronic - Bystar L 4025-65IT-LAS-BYS-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Bystronic Bystar L 4025-65 Laser Cutting Machine

Show in original language

This Bystronic Bystar L 4025-65 Laser Cutting Machine was made in 2007 in Switzerland. It is equipped with a control unit of the same brand. This machine has a production record of approximately 26000 working hours. It stands out due to its potent laser power of 6 kW. During the past, had been working with steel, stainless steel, and aluminium.

Overview

brand: Bystronic
year: 2007
MODEL: Bystar L 4025-65
production hours: 26000
application type: Cutting
Location: Italy
machine type: CO2 Laser Cutting Machine
control unit brand: BYSTRONIC

Technical Information - Bystronic Bystar L 4025-65

General Data

Measurements width: 18700 mm
Measurements depth: 7500 mm
Measurements height: 2350 mm
Machine weight: 33000 kg

Control Unit

Brand: BYSTRONIC

Main drive

Laserpower: 6 kW

Movement

X-AXIS Movement: 6500 mm
Y-AXIS Movement: 2500 mm
Z-AXIS Movement: 170 mm

Max Material thickness

Steel: 25 mm
Stainless steel: 20 mm
Aluminum: 12 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Fast speed: x and y axes 60mt/min- simultaneous axes 85mt/min
- - Repeatability accuracy of the table with repositioning: +/- 0. 02 mm
- - Table change with safety photocells
- - Ethernet rj45 card
- - Sectorial suction system with vacuum cleaner
- - Chiller

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
