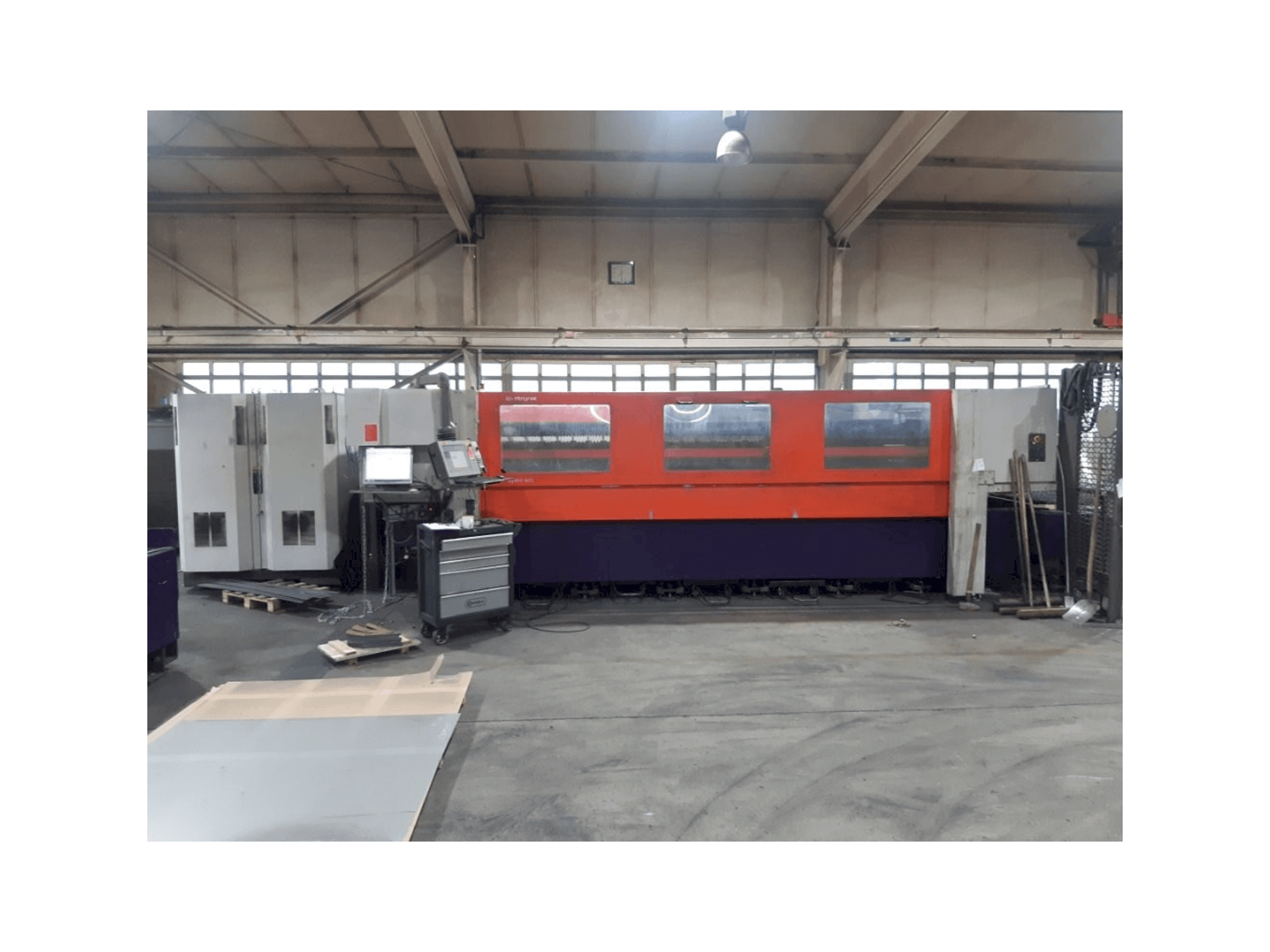

Front view of Bystronic Bystar 4020 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bystronic Bystar 4020

Photo Gallery

Bystronic - Bystar 4020DE-LAS-BYS-2007-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ BYSTRONIC Bystar 4020 Laser Cutting Machine DE-LAS-BYS-2007-00002

Show in original language

This Bystronic Bystar 4020 Laser Cutting Machine was manufactured in the year 2007 and has been operative for 85000 hours. This machine is capable of cutting steel sheets up to 20 mm of thickness with a laser power of 4.4 kW.

Overview

brand: Bystronic
year: 2007
MODEL: Bystar 4020
production hours: 85000
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: BYSTRONIC

Technical Information - Bystronic Bystar 4020

General Data

Measurements width: 16000 mm
Measurements depth: 6700 mm
Measurements height: 2070 mm
Machine weight: 19500 kg

Control Unit

Model: ByVision
Brand: BYSTRONIC

Main drive

Laserpower: 4.4 kW

Movement

X-AXIS Movement: 4048 mm
Y-AXIS Movement: 2024 mm
Z-AXIS Movement: 170 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 15 mm
Aluminum: 10 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Automatic table changer
- - 2 cutting heads with 5" + 7. 5" lenses
- - Cut control
- - Cross jet
- - Dust extraction
Qualitative Machine Benefits:
- - Service through the manufacturer company

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
