Bridgeport VMC 460 Vertical Machining Center

Show in original language

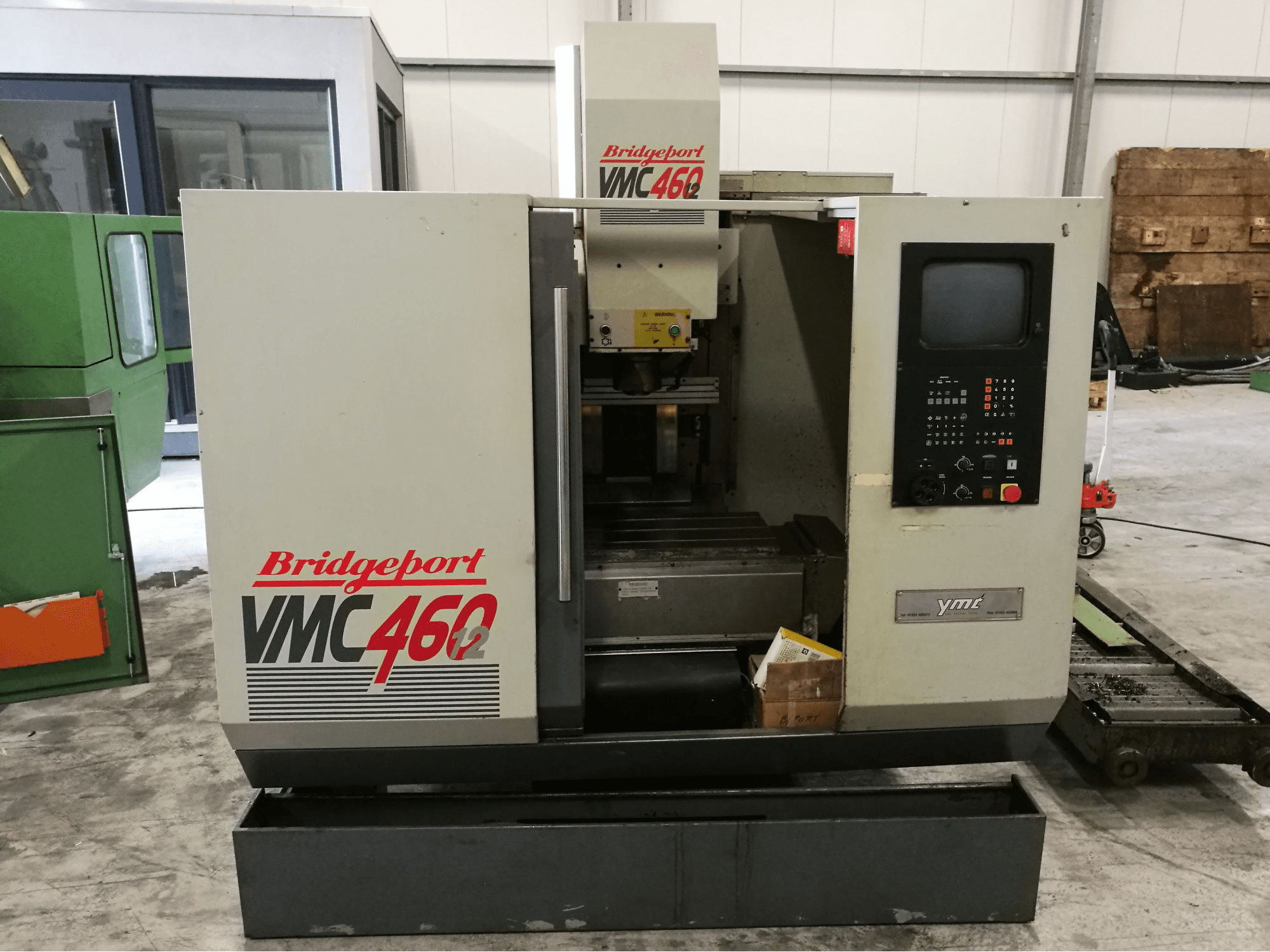

This Bridgeport VMC 460 Vertical Machining Center was manufactured in the United Kingdom in 1994 and has an overall production time of approximately 10500 hours. Operated through a Heidenhain TNC 2500 Control unit, this rigid and reliable machine has mainly worked with steel and stainless steel during the past and stands out due to its heavy duty dual-wound spindle motor as well as robust one-piece cast iron base.

Overview

brand: Bridgeport
year: 1994
MODEL: VMC 460
production hours: 10500
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC 460

General Data

Measurements width: 2750 mm
Measurements depth: 2100 mm
Measurements height: 2500 mm
Machine weight: 2600 kg

Control Unit

Model: TNC 2500
CNC main language: English
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/min

Movement

X-AXIS Movement: 490 mm
Y-AXIS Movement: 340 mm
Z-AXIS Movement: 480 mm

Workpiece

Workpiece drm: 48 mm
Workpiece weight: 500 kg

Table

Outer length: 840 mm
Outer width: 360 mm

Tools

Max weight: 7 kg
Max tool diameter: 75 mm
Max tool length: 250 mm

Media

Main electronic connection: 380 V
Power consumption: 15 kVA
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
