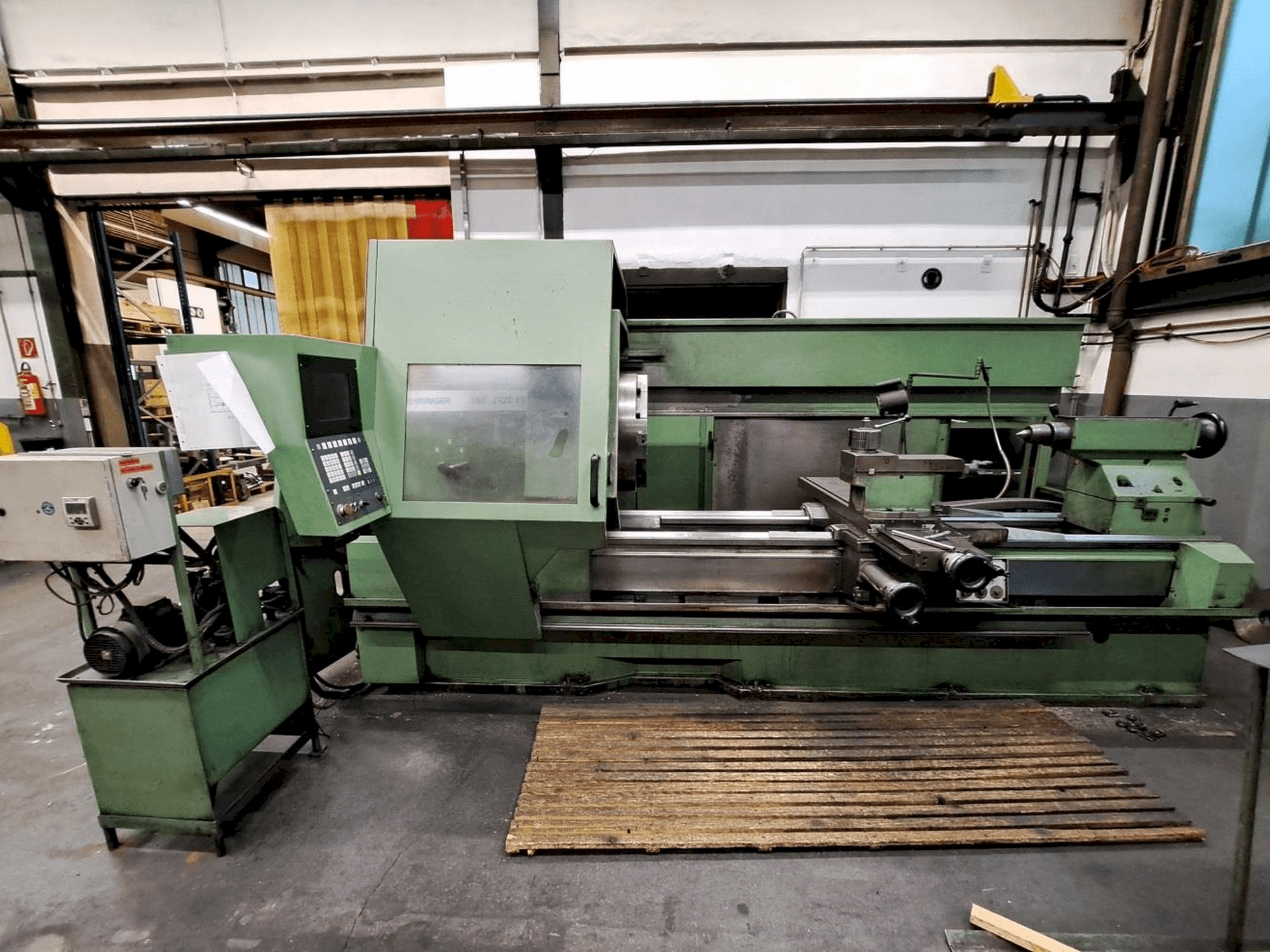

Front view of BOEHRINGER VDF DUS 1000  machine

BOEHRINGER - VDF DUS 1000PL-TUR-BOE-1993-00001

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This BOEHRINGER VDF DUS 1000 lathe was made in the year 1993. It is equipped with a Siemens SINUMERIK control unit. The machine has a turning diameter over bed of 1000 mm and a turning diameter over cross slide of 710 mm.

Overview

  • brand: BOEHRINGER
  • year: 1993
  • MODEL: VDF DUS 1000
  • application type: Turning
  • Location: Poland
  • machine type: Lathe
  • availability: Sold
  • control unit brand: Siemens

Technical Information - BOEHRINGER VDF DUS 1000

General Data

  • Measurements width: 5800 mm
  • Measurements depth: 2050 mm
  • Measurements height: 2250 mm
  • Machine weight: 10000 kg

Control Unit

  • Brand: Siemens
  • Model: SINUMERIK

Media

  • Main electronic connection: 400 V / 50Hz
  • Power consumption: 60 kVA

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Turning diameter over bed: 1000 mm
      • - Turning diameter over cross slide: 710 mm
      • - Length between centers: 3300 mm
      • - Spindle taper: kk 11 din 55027
      • - Spindle bore: 128 mm
      • - Bed width: 560 mm
      • - Turning speed range: 6. 3 - 1600 u/min
      • - Feed rate: 0. 01 - 50 mm/u
      • - Feed rate - longitudinal / frontal : 20 / 12. 5 m/min
      • - 3-jaw chuck diameter: 500 mm
    • Qualitative Machine Benefits:
      • - Quick-change tool holder: multifix type d
      • - Drive power - spindle motor: 46 kw
      • - Drive power, 60 % ed 46 kw
      • - Torque, 60 % ed max nm 5300
      • - Taper: taper in sleeve: mk 6
      • - Tailstock: diameter: 125 mm
      • - Tailstock: pen stroke: 280 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
