Bihler MULTICENTER MC42 Stamping machine

Show in original language

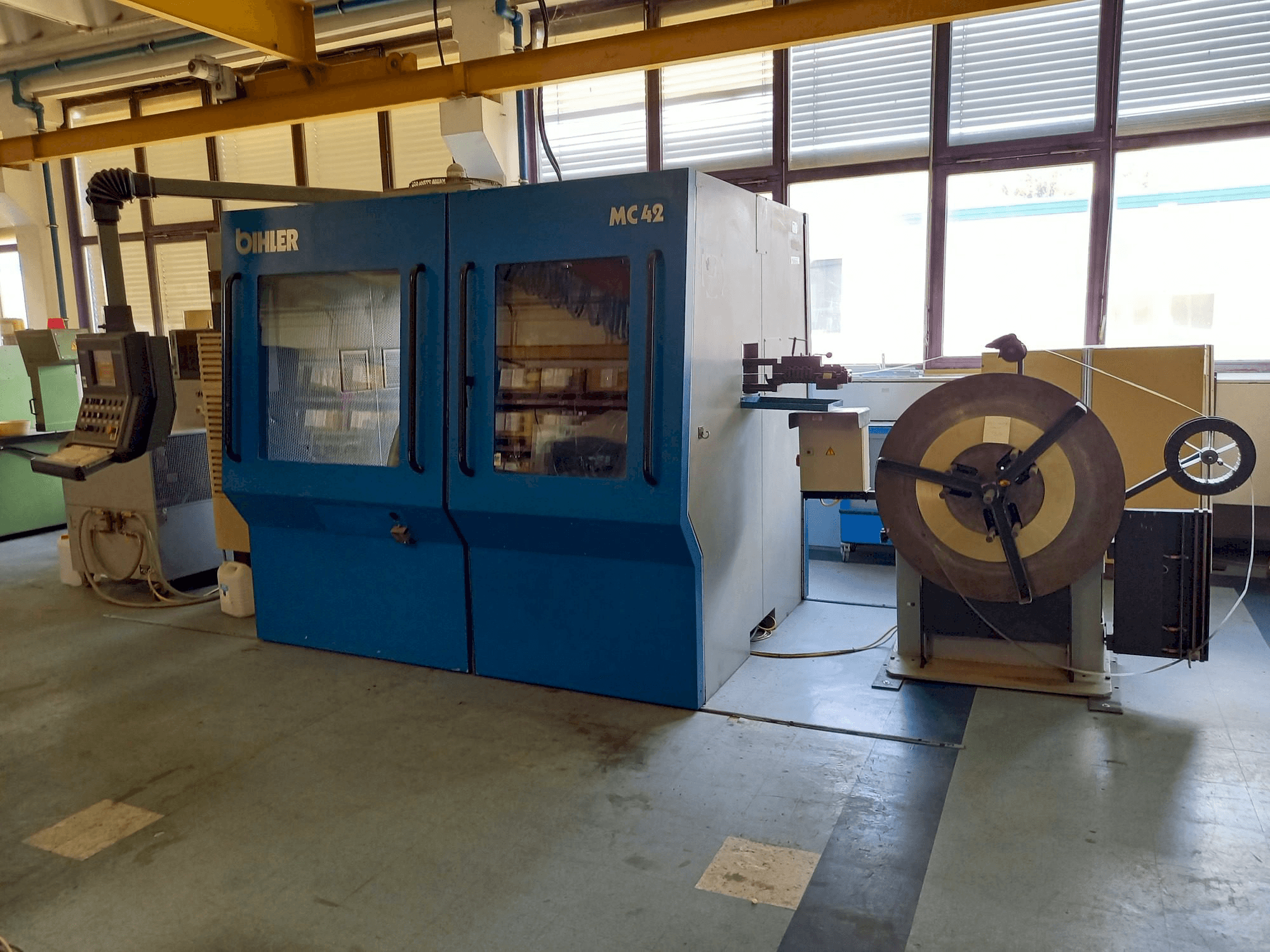

This Bihler MULTICENTER MC42 Stamping machine was built in Germany in 1998. It operates with a high production speeds up to 350 1/min, a nominal stamping capacity of 90 kN, a stroke of 12 mm and a max. nominal forming capacity of 60 kN, max. stroke 40 mm.

Overview

brand: Bihler
year: 1998
MODEL: MULTICENTER MC42
application type: Stamping
Location: Hungary
machine type: Stamping Machine
availability: Sold
GINDUMAC ID: HU-STA-BIH-1998-00001

Technical Information

General Data

Measurements width: 2480 mm
Measurements depth: 2060 mm
Measurements height: 2220 mm
Machine weight: 3000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Stroke rate: variable drive control from 5 to max. 350 1/min
- - Press: nominal stamping capacity 90 kn, stroke 12 mm
- - Slide units: max. Nominal forming capacity 60 kn, max. Stroke 40 mm
- - Feed length: mech. Feed: max. 120 mm or 240 mm,with feed cycle reduction, servo feed: any feed length
- - Material: max. Strip thickness: 4 mm, max. Strip width 60 mm, max. Wire Ø 4 mm
- - Welder machine : bihler b-1000

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
