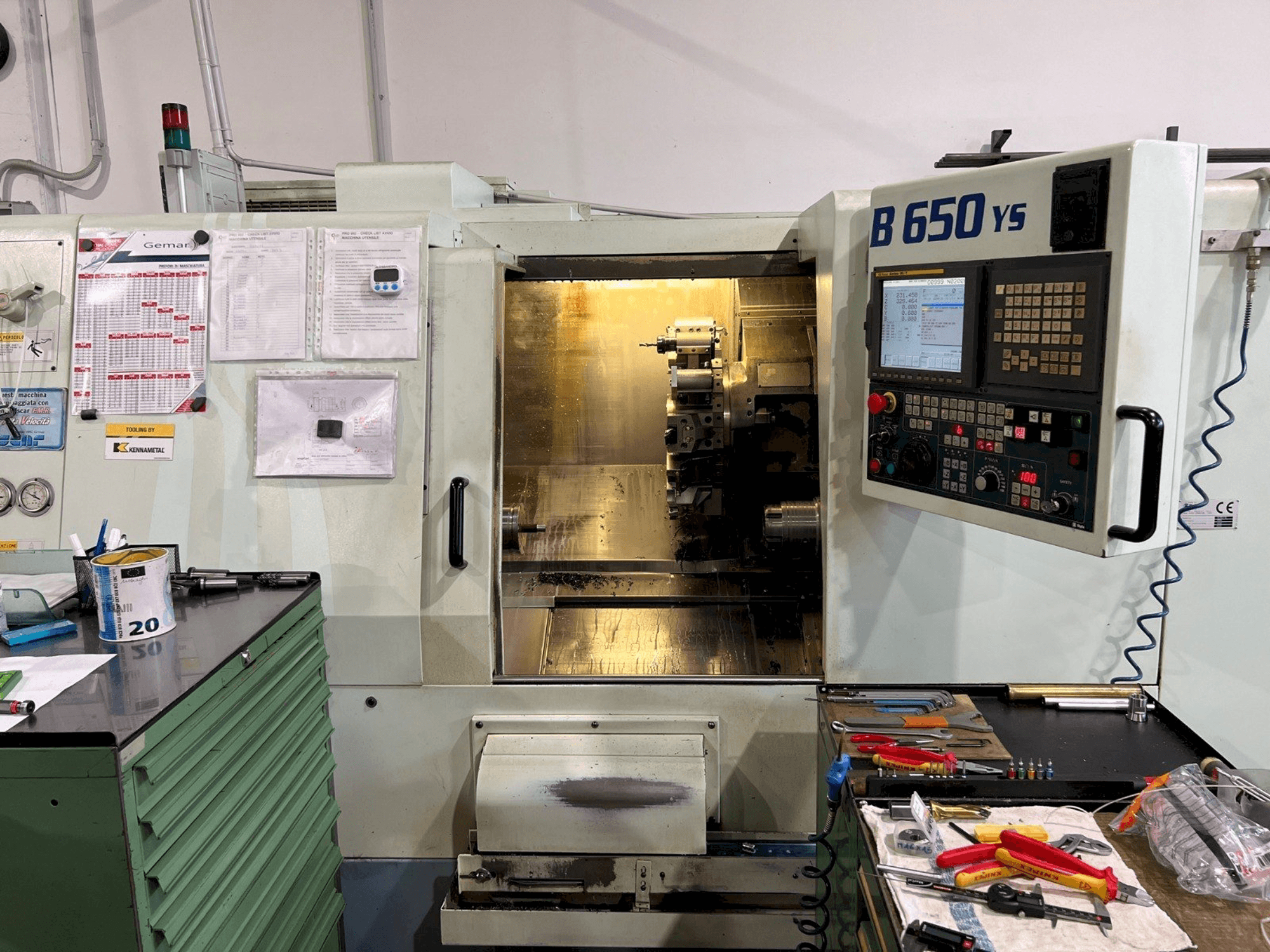

Front view of Biglia B650 YS  machine

Biglia - B650 YSIT-TUR-BIG-2002-00001

Rs. 4,735,250
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Biglia B650 YS Lathe was built in 2002 and has 12238 hours. It is equipped with a Fanuc 18I-Tcontrol unit. The machine has a main spindle speed of 4500 rpm.

Overview

  • brand: Biglia
  • year: 2002
  • MODEL: B650 YS
  • production hours: 12238
  • application type: Turning
  • Location: Italy
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - Biglia B650 YS

General Data

  • Measurements width: 4450 mm
  • Measurements depth: 2000 mm
  • Measurements height: 2100 mm
  • Machine weight: 6500 kg

Control Unit

  • Brand: FANUC
  • Model: 18I-T

Main drive

  • Spindle speed range: 4500 1/MIN
  • Spindle motor power: 15 kw

Movement

  • X-AXIS Movement: 260 mm
  • Y-AXIS Movement: 110 mm (+60 / -50)
  • Z-AXIS Movement: 650 mm
  • B-AXIS Movement: 650 mm

    Additional equipment

    • - Collect chucks max. 70 mm for main spindle
    • - Collects chucks max. 42 mm for sub spindle
    • - Software for monitoring power axis
    • - KIT full for bar feeder
    • - Tool setter
    • - Axial rotary tools
    • - Radial rotary tools

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max turning diameter: 400 mm
        • - Max bar diameter: 65 mm
        • - Spindle nose: asa 6”
        • - Spindle nose: flat diam. 140
        • - Max bar diameter: 38 mm
        • - Sub spindle: 5000 rpm, 11 kw

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
