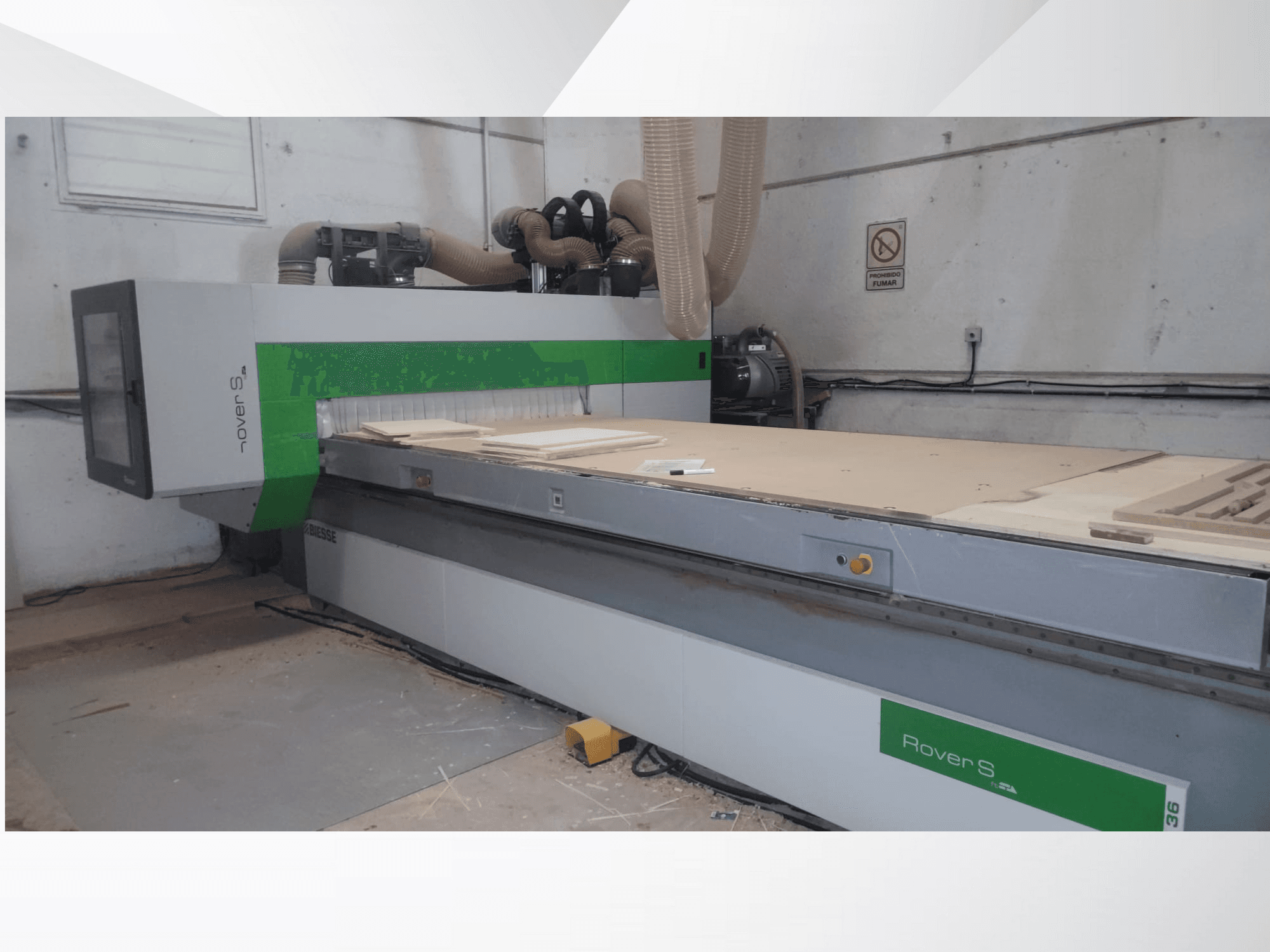

This 4-axis BIESSE Rover S FT 1536 was manufactured in 2018. It features a robust gantry design, a working area of 3765 × 1560 mm, and a main spindle power of 13.2 kW. Equipped with a HSK-F63 tool holder system, 12-position disc-type tool changer, and a BIESSE BH 10 drilling unit with comprehensive vertical and horizontal drilling capabilities. It also includes a grid vacuum table, dual 500 m³/h vacuum pumps, and is DXF file compatible. Contact us for more information about this machine.
Overview
- brand: BIESSE
- year: 2018
- MODEL: Rover S FT 1536
- application type: CNC Wood Machining
- Location: Spain
- machine type: CNC Wood Machining Centre
Additional Information
Weight (kg): 3000
Main Spindle: 1 spindle, 13.2 kW
Axes: 4
Working Area (X × Y): 3765 × 1560 mm
Torque Support: 4th axis (C-axis rotation)
Tool Holder System: HSK-F63
Tool Change Positions: 12 (disc-type changer)
Tool Length Measurement: Yes
Drilling Unit: Vertical Drills: 10, Horizontal Drills: 4 (X direction), 2 (Y direction)
Grooving Saw: In X direction
Vacuum Table: Grid table
Vacuum Pumps: 2 × 500 m³/h
Extraction System: Sweeping arm discharge device
Lubrication: Automatic
Air Blowing Device: Yes
Control System: Interface with DXF file compatibility
CE Marked: Yes
Tools, tool holders, aggregates, and mechanical clamps shown in photos or videos are not included in the scope of delivery.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
