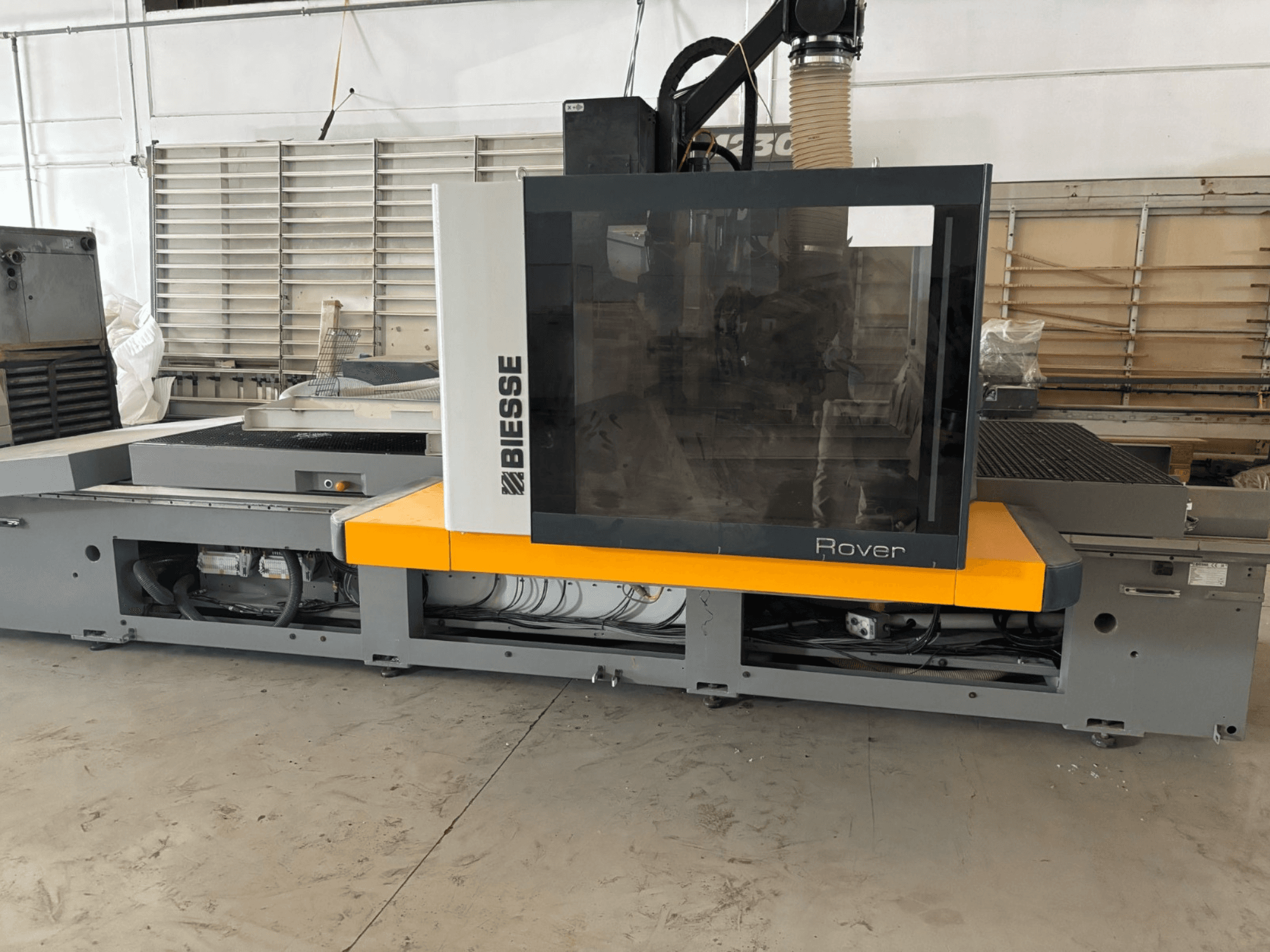

BIESSE - Rover PLAST A FT 1536ES-CNC-BIE-2020-00001

• Maximum piece clearance: 170 mm

• Axis speeds: X 85 m/min, Y 60 m/min, Z 20 m/min

• Base: Electro-welded closed-circuit structure with high-thickness steel plates

• Axis drives: X with two independent brushless motors and helical rack & pinion; Z with preloaded ballscrew, ISO5 precision

• Work table: Phenolic laminate with 30 mm grid vacuum system; vacuum steps every 150 mm; M8 threaded inserts for templates/fixtures

• Main electrospindle: 13.2 kW (17.7 HP), HSK F63, air-cooled, 1,000–24,000 rpm

• Tool magazine: 8-position revolver on Y-carriage; max tool diameter 110 mm; max tool weight 7.5 kg (32 kg total magazine)

• Tool measurement: Digital presetter for tool length measurement up to 130 mm diameter

• Control system: BH660 PC-based with Windows Real Time (WRT); CPU Intel Core i5 or better; 8 GB RAM; 128 GB SSD or better; 21.5" LCD monitor

• Power supply: 380/400/415 V, 50/60 Hz

• Automatic lubrication system for moving parts

• Software: bSolid 3D CAD-CAM for design, simulation, and process management

• Connectivity: Industry 4.0 integration via TCP/IP and OPC-UA

Additional equipment

• Vacuum pump: 250 m³/h, dry-running

• Air conditioner for the electrical cabinet

• Safety guarding: 2 m high protection nets and front vertical photocells
