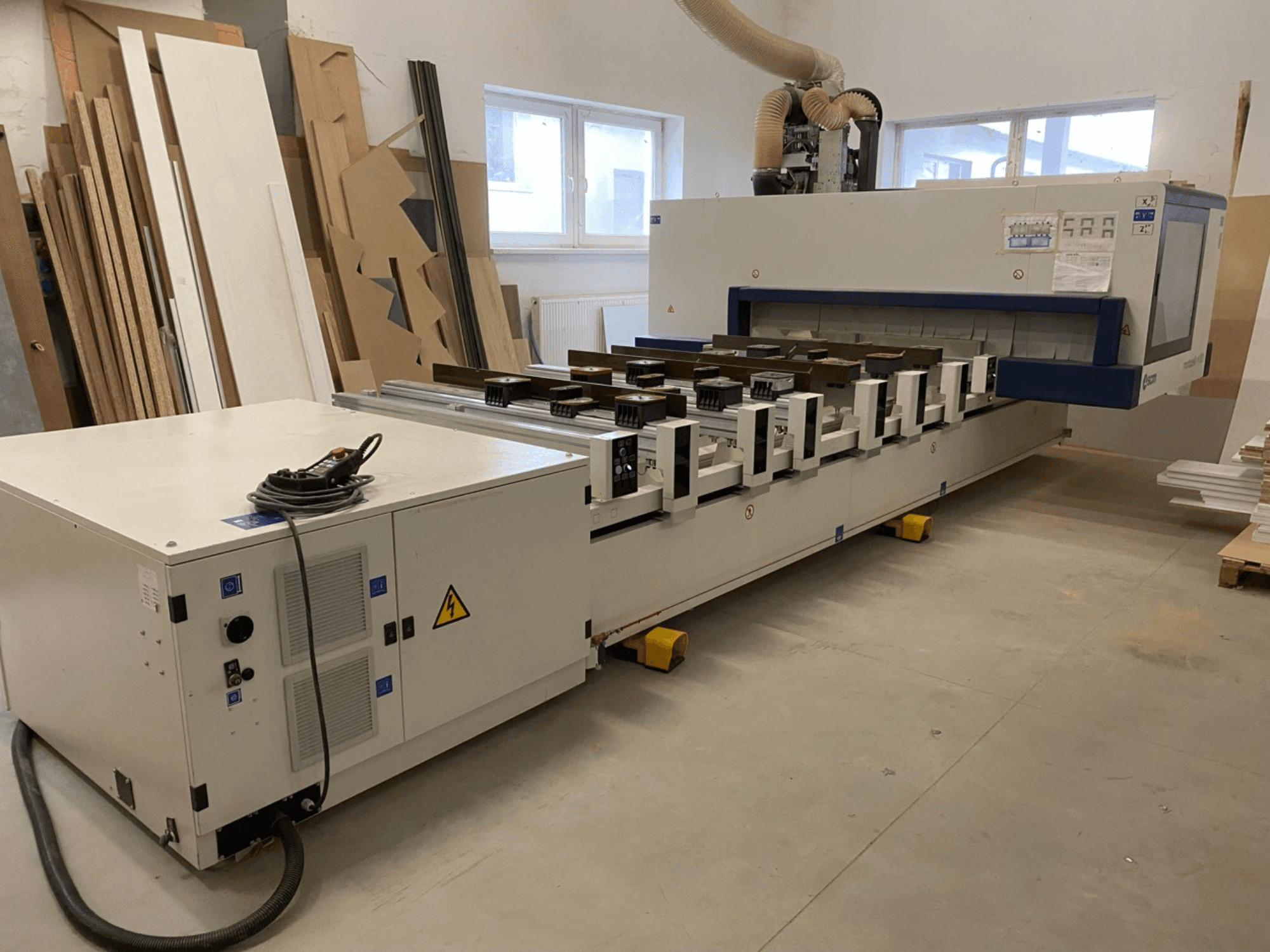

SCM - Morbidelli Author M100HU-CNC-SCM-2018-00001

• Working area / axes:

  • Panel length (Y): 1900 mm (2210 mm)

  • Panel height (Z): 180 mm

  • Panel length for through machining: 1400 mm

  • Vector speed X‑Y: Pro‑Space 56 m/min; Pro‑Speed 78 m/min

• Worktable: 6–12 beams (TV Flex), 12 vacuum pods (145 × 145 × H75 mm); 2 stops per beam; movable beam length 1600 mm.

• Drilling unit (general spec):

  • 21 vertical spindles, 8,000 rpm

  • 10 horizontal spindles, 8,000 rpm

  • Integrated saw Ø125 mm (X), 10,000 rpm

  • Motor power 2.2 kW

• Electrospindle: 10 kW (S6), max 24,000 rpm.

• Installation requirements: installed power 23–28.5 kVA; compressed air 450 NL/min; dust extraction 4500 m³/h, 25 m/s, outlet Ø250 mm.

• Structure and motion:

  • Heavy, stress‑relieved, electro‑welded steel frame; all machining in single setup on CNC metalworking machines.

  • High‑speed four‑row linear guides; three‑circuit recirculating ball systems; X‑axis helical rack‑and‑pinion.

  • Brushless motors, inverters; machining units mounted on mobile gantry for rigidity.

  • Transparent polycarbonate safety enclosure.

• CNC control and software:

  • PC‑Office: Windows 7, 17" color LCD, QWERTY keyboard, mobile control panel, Xilog Maestro.

  • Xilog Maestro features: parametric/graphical/ISO programming; DXF/ASCII import (2D); 3D linear/circular interpolation; spatial linear interpolation; helical interpolation; guided editor; automatic drilling optimization and tool libraries; panel origin offset; simulation; barcode management (software); self‑diagnostics; step‑by‑step manual intervention; graphical unit configuration; machining speed selection; SCM CNC Jerk function.

• Safety: CE; PRO‑SPACE system with safety bumpers (automatic stop on potential collision).

• Table equipment included/mentioned: rear aluminum reference stops H75 per beam; second central reference stops per beam; front reference stops H75 per beam.

• Vacuum system: integrated vacuum pump 90/108 m³/h, 50 Hz.

• F23 L drilling unit (listed configuration):

  • Independent Z‑axis

  • 13 independent vertical spindles (8 X / 5 Y)

  • 6 independent horizontal spindles (quick‑release), incl. 4 in Y

  • 32 mm pitch

  • Speed 4,500–8,000 rpm (inverter)

  • Rear‑panel groove/saw unit Ø125 mm, 5,500–10,000 rpm (inverter)

  • Motor 2.2 kW

  • Increased Z‑pressure

• RO AX advantages: high productivity, precision, finish quality, processing speed; up to 90% reduction in maintenance (approx. 1,000‑hour interval).

Additional equipment

• TRB14 side‑mounted tool magazine (optional), right side:

  • Capacity up to 11 tools; max Ø350 mm

  • Center distance 130 mm

  • Max tool weight 8 kg; total 48 kg

• 4 workpiece lifting supports H75, two lifting levels (above clamps and working level), 20 kg per support

• Additional hardware key with USB port
