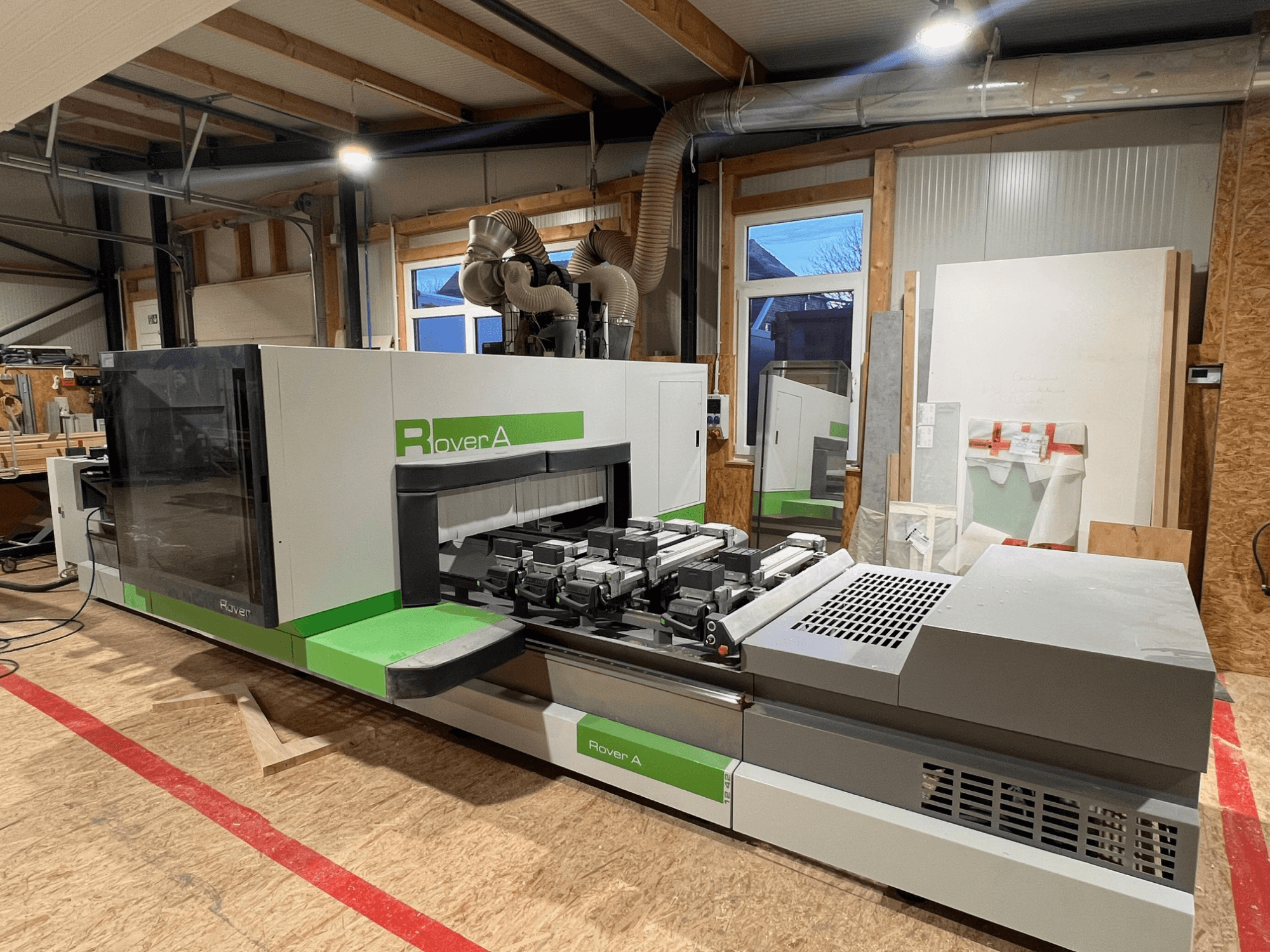

BIESSE - Rover A 1242DE-CNC-BIE-2021-00001

• Working range

  • Y (5-axis): 1270 mm

  • Y (4-axis): 1260 mm

  • Z (with H=74 mm vacuum modules): 230 mm

  • Z (with H=29 mm vacuum modules): 275 mm

• Axes and drives

  • X & Y: Rack and pinion drive; accuracy class 6

  • Z: Ball screw with preloaded nut; accuracy class ISO C7

  • Motors: Brushless motors with digital drives via Mechatrolink system

• Control system and PC hardware

  • Control: BH660 (PC-based) with WRT (Windows Real Time) technology

  • CPU: Intel Core i5 or higher

  • RAM: 16 GB

  • Storage: 256 GB SSD or higher

  • Monitor: 21.5-inch LCD color screen

  • Operating system: Windows with real-time process management extension

  • Connectivity: Ethernet card; USB ports

• Electrical and pneumatic

  • Power supply: 380 / 400 / 415 V – 50/60 Hz

  • Control voltage: 24 V DC (stabilized power supply)

  • Cabinet cooling: Air conditioning system for operation up to 40°C (104°F)

  • UPS (uninterruptible power supply): 7–10 minutes runtime for data protection

• Workpiece support (ATS system)

  • Workpiece supports: 8 ATS aluminum supports on linear guides

  • Module carriers: 24 carriers (132 × 132 × H41.5 mm) with pneumatic clamping

  • Set-Up Assistant (SA): Manual positioning with LED indicators; ±1.5 mm precision

  • Vacuum zones: 2 independent work areas in X; 2 independent clamping areas in X

• Software and licensing

  • Primary software: NC-HOPS 7 MacroCAM

• Safety and maintenance

  • Safety system: Bumper system (front and rear) for immediate stop upon collision

  • Protection: Polycarbonate transparent front plate and sound-absorbing cover

  • Lubrication: Automatic lubrication system for linear guides and rack/pinion

Additional equipment

• Vacuum pumps (supported/optional): Up to two units, 90/100 m³/h or 250 m³/h each
