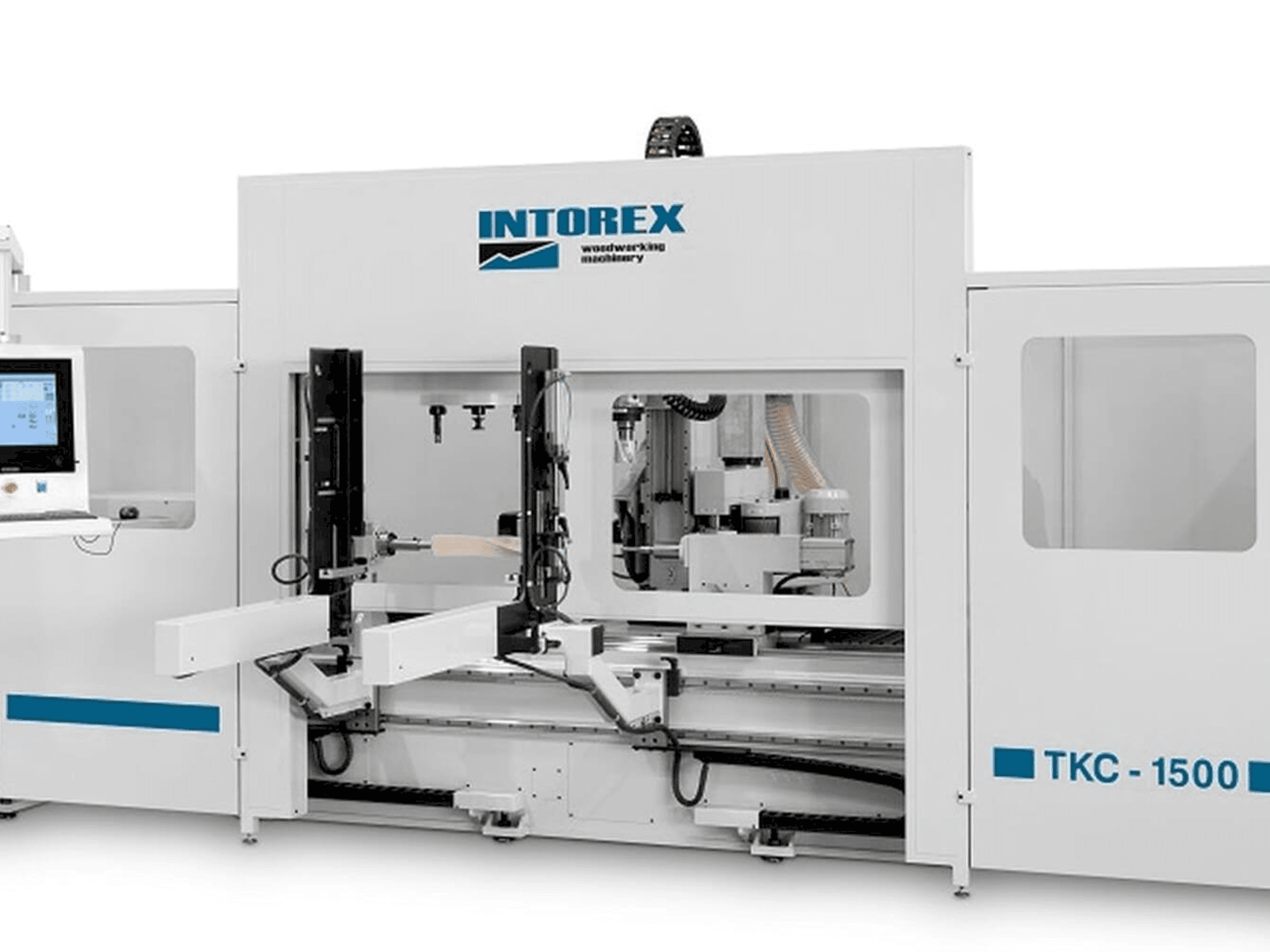

INTOREX - TKC-1500DE-CNC-INT-2025-00001

Additional equipment

• - Unloading unit and part removal via conveyor belt
• - Fully enclosed safety guards with pneumatically operated front door
• - "Anti-shock" pneumatic cylinders for part damage prevention during unloading
• - Headstock support for interchangeable centers
• - Abrasive belts, grit 150, dimensions: 170x1500 mm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Digital osai open 6-axis control system with ethercat interface
  • - Industrial panel pc 15. 6" ip65 front
  • - Fanless 15. 6" resistive touchscreen, 1366x768 resolution
  • - Intel celeron j1900 quad-core 2. 0ghz processor
  • - 60gb solid state drive (ssd)
  • - 4gb ram
  • - Communication ports: 1 x usb front + 3 x usb, 2 x ethernet, 1 x rs-232/422/485, 1 x vga
  • - Audio – input/output
  • - Os: windows 10 iot enterprise – embedded
  • - Intoredit 3d – cad-cam software developed for designing parts and post-processing machining programs
• Qualitative Machine Benefits:
  • - Electrospindle (axis b): electric motor with 7. 5 kw power and rotational speed from 0 to 22000 rpm, controlled by the cnc
  • - Headstock (axis a): 15. 3 kw motor with interpolation and positioning over 360°, continuous rotation speed from 0 to 1500 rpm, cnc-controlled
  • - Turning or milling head with saw blade (axis y, unit y2): equipped with a 9 kw motor, variable speed from 1000 to 4500 rpm
  • - Milling head with milling tool (axis y, unit y3): equipped with a 9 kw motor, variable speed from 1000 to 5000 rpm
  • - Sanding head (axis y, unit y4): with a 2. 2 kw motor and 3000 rpm rotation speed
  • - Rotary tool magazine with 8 tool slots (axis q): includes 6 tool holders with hsk f63 cone type
  • - Maintenance tools, hydraulic oil, and operating manual included

Extra information

• - Machine still under power
