- bielomatik K3216 Vibration welding machine for plastic
Show in original language

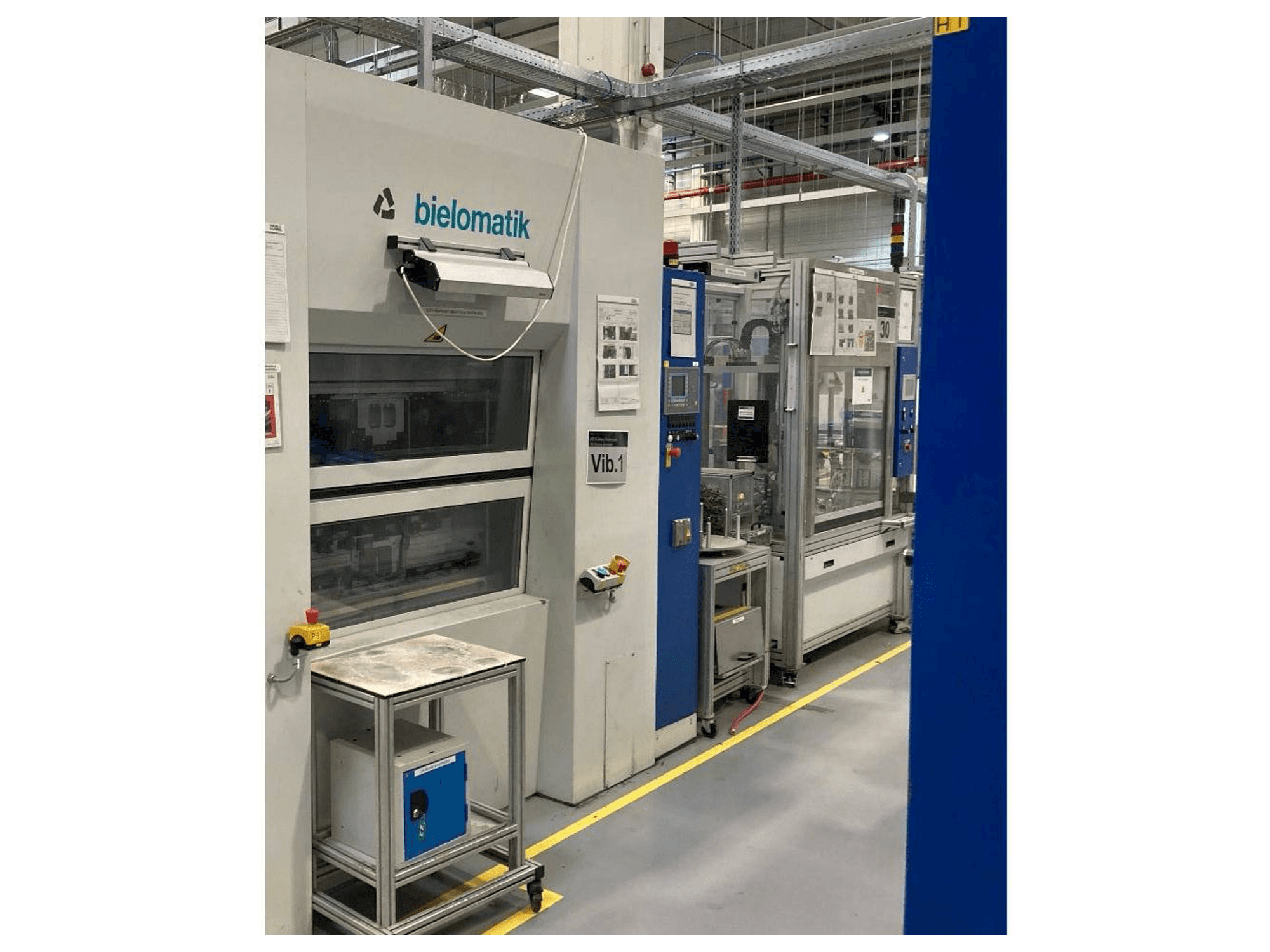

This bielomatik K3216 Vibration welding machine for plastic was manufactured in the year 2014 in Germany. It is equipped with a Siemens S7 with an OP277 control unit.
Overview
- brand: bielomatik
- year: 2014
- MODEL: K3216
- application type: Other (IMM)
- Location: Germany
- machine type: Other
- availability: Sold
- control unit brand: Siemens
- GINDUMAC ID: DE-OTH-BIE-2014-00001
Technical Information
General Data
- Measurements width: 3200 mm
- Measurements depth: 1960 mm
- Measurements height: 2780 mm
- Machine weight: 4500 kg
Control Unit
- Brand: Siemens
- Model: S7 with OP277
Media
- Main electronic connection: 400 V
- Power consumption: 20 kva
Additional Information
- Technical Machine Benefits:
- - Upper vibration head size: 1220 x 530 mm
- - Standard upper tooling plate: 1220 x 530 mm
- - Lower machine table size: 1320 x 540 mm
- - Standard lower tooling plate: 1320 x 540 mm
- - Clearance between the table and the head: 770 mm
- - Table stroke: 550 mm
- - Min. Tooling height: 220 mm
- - Clamp force (machine table): 24800 n
- - Drive force vibration drive: 16500 n
- - Frequency - variable, depending on tool weight: 170 - 240 hz
- Qualitative Machine Benefits:
- - Amplitude - adjustable: max 1. 3 mm
- - Tooling weight: up to 90 kg
- - Positioning accuracy depth measuring: for machine: +/- 0. 05 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
