Berthiez - BM 225ES-TUR-BER-2006-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Berthiez BM 225 Lathe
Show in original language

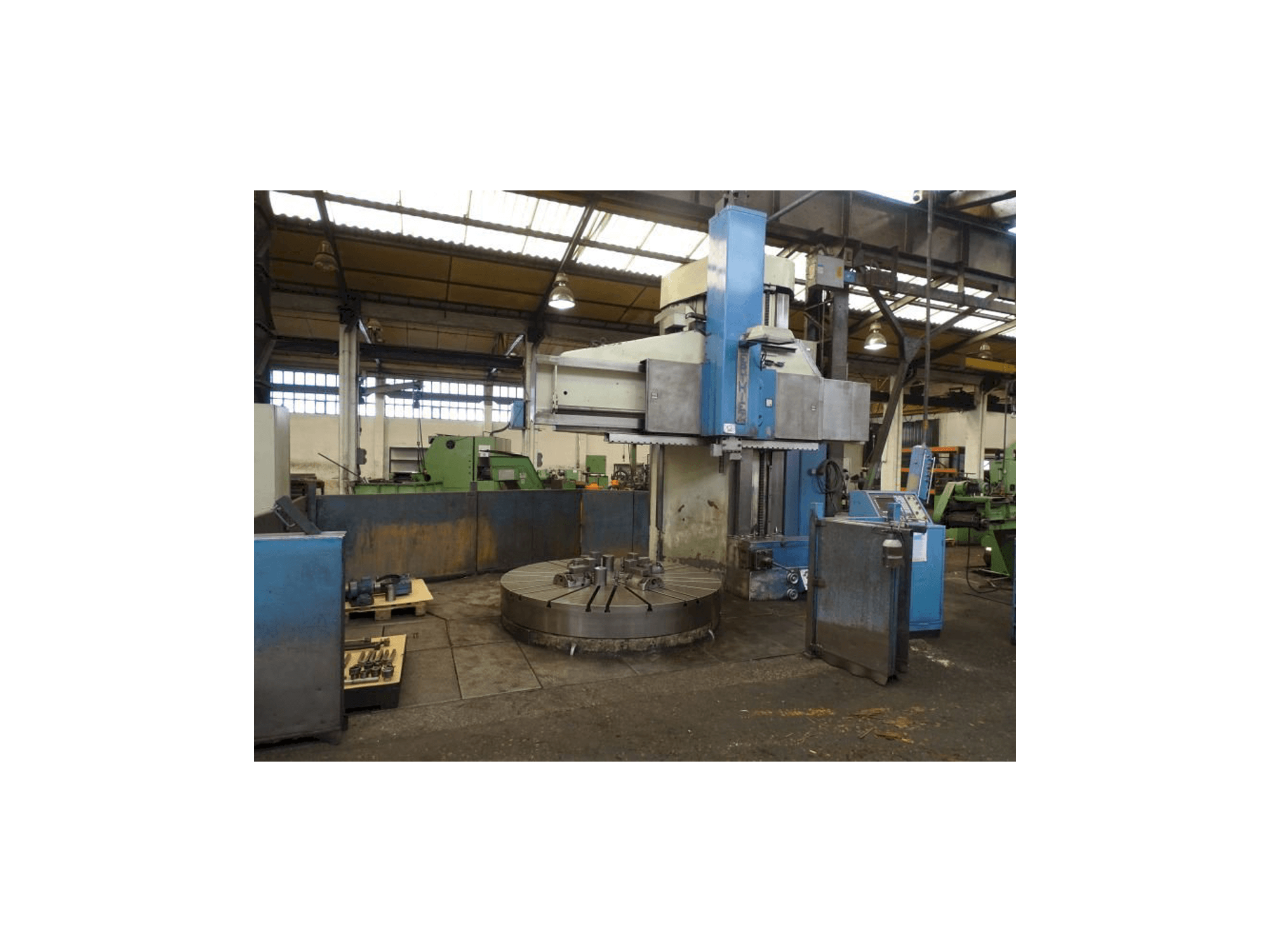

This Berthiez BM 225 Lathe the electrical part was retrofitted in the year 2006. It is equipped with a Fagor 8055 Plus control unit. This machine can work with a spindle speed of 80 rpm.
Overview
- brand: Berthiez
- year: 2006
- MODEL: BM 225
- application type: Turning
- Location: Spain
- machine type: Vertical Turning Machine
- control unit brand: FAGOR
Technical Information - Berthiez BM 225
Control Unit
- Control Brand: FAGOR
- Control Model: 8055 Plus
Dimensions
- Machine Weight: 32000 kg
Technical Specification
- Max. Workpiece Diameter: 4500 mm
- Spindle Speed: 80 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Retrofitting electrical part in 2006
Technical Machine Benefits
- Plate diameter 2250 mm
- Maximum diameter admitted 4500 mm
- Maximum turning diameter 3900 mm
- Maximum height under crossbeam 2000 mm
- Horizontal travel of tool holder 1000 mm
- Tool holder vertical travel 1250 mm
- Vertical and transverse turret
- Engine power 80 hp
- Sandvik capto quick tool change
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
