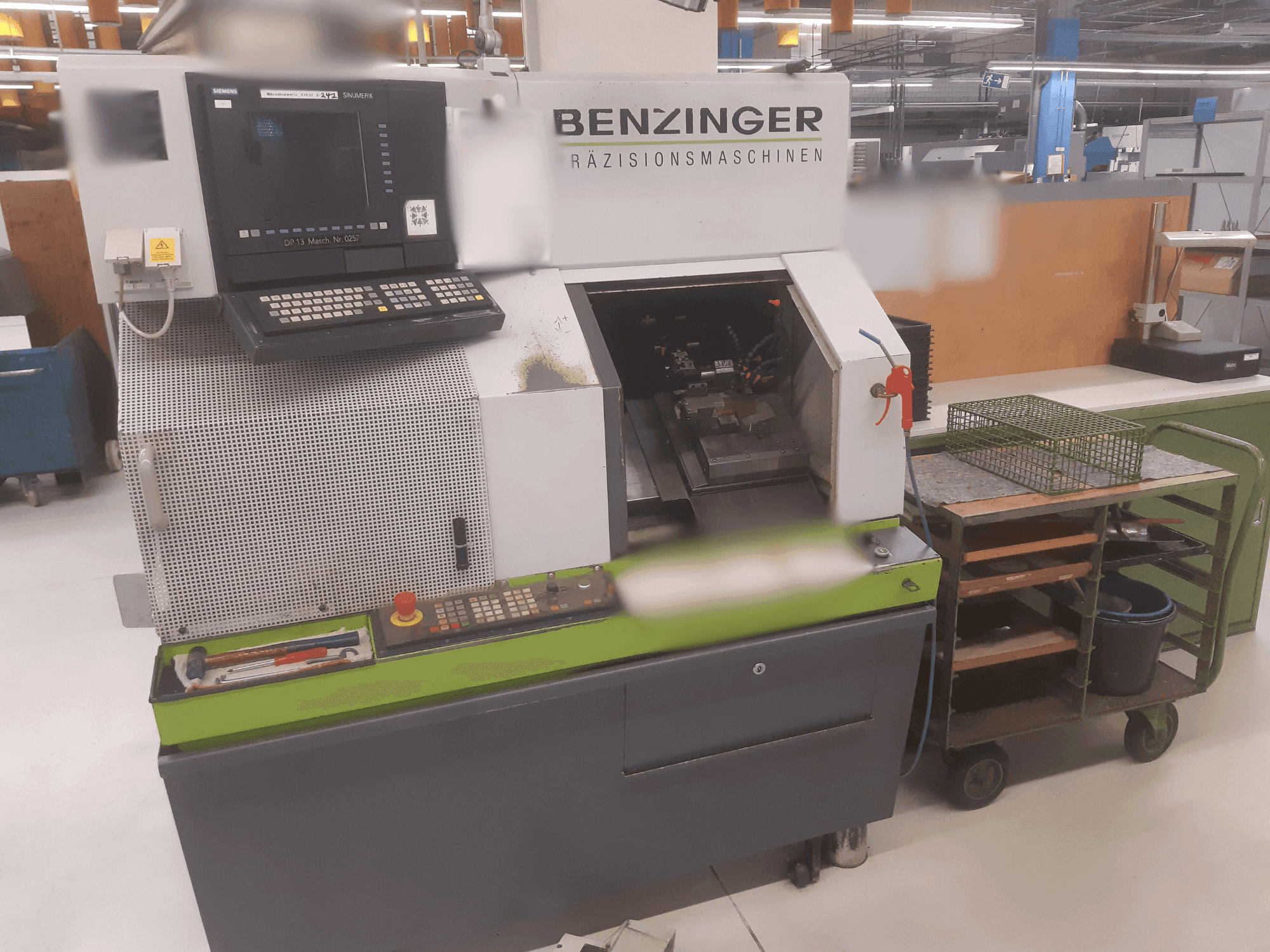

This Benzinger TNC-L was manufactured in 1998. A robust horizontal turning machine featuring a max bar capacity of 26mm, main spindle drive power of 7.5kW, and a speed range up to 6500/min. It includes 35 tool holders and a coolant tank capacity of 120l. Ideal for precision turning with a swing diameter over the longitudinal slide of 380mm. If you are looking to get high-quality turning capabilities consider the Benzinger TNC-L machine we have for sale. Contact us for more information.
Overview
- brand: Benzinger
- year: 1998
- MODEL: TNC-L
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - Benzinger TNC-L
General Data
- Measurements width: 1130 MM
- Measurements depth: 1890 MM
- Measurements height: 1800 MM
- Machine weight: 1600 KG
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 810D
Main drive
- Spindle speed range: 6500 1/MIN
- Spindle motor power: 7.5 kW
- Number of axis: 2
Movement
- X-AXIS Movement: 300 mm
- Y-AXIS Movement: 250 mm
Tools
- Slots in storage: 8
Additional equipment
- - Tool Holders Included: 35
Additional Information
- Technical Machine Benefits:
- - Swing diameter over longitudinal slide: 380 mm
- - Max bar capacity: 26 mm
- - Coolant tank capacity: 120 l
- - Coolant pressure at turret: 6 bar max
- - Tolerance: +6%/-10%
- - Compressed air supply: 6-8bar
- - Bore of spindle bearing: 55mm
- - Spindle nose benzinger factory standard
- Qualitative Machine Benefits:
- - Accuracy according to iso tolerance 6
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
