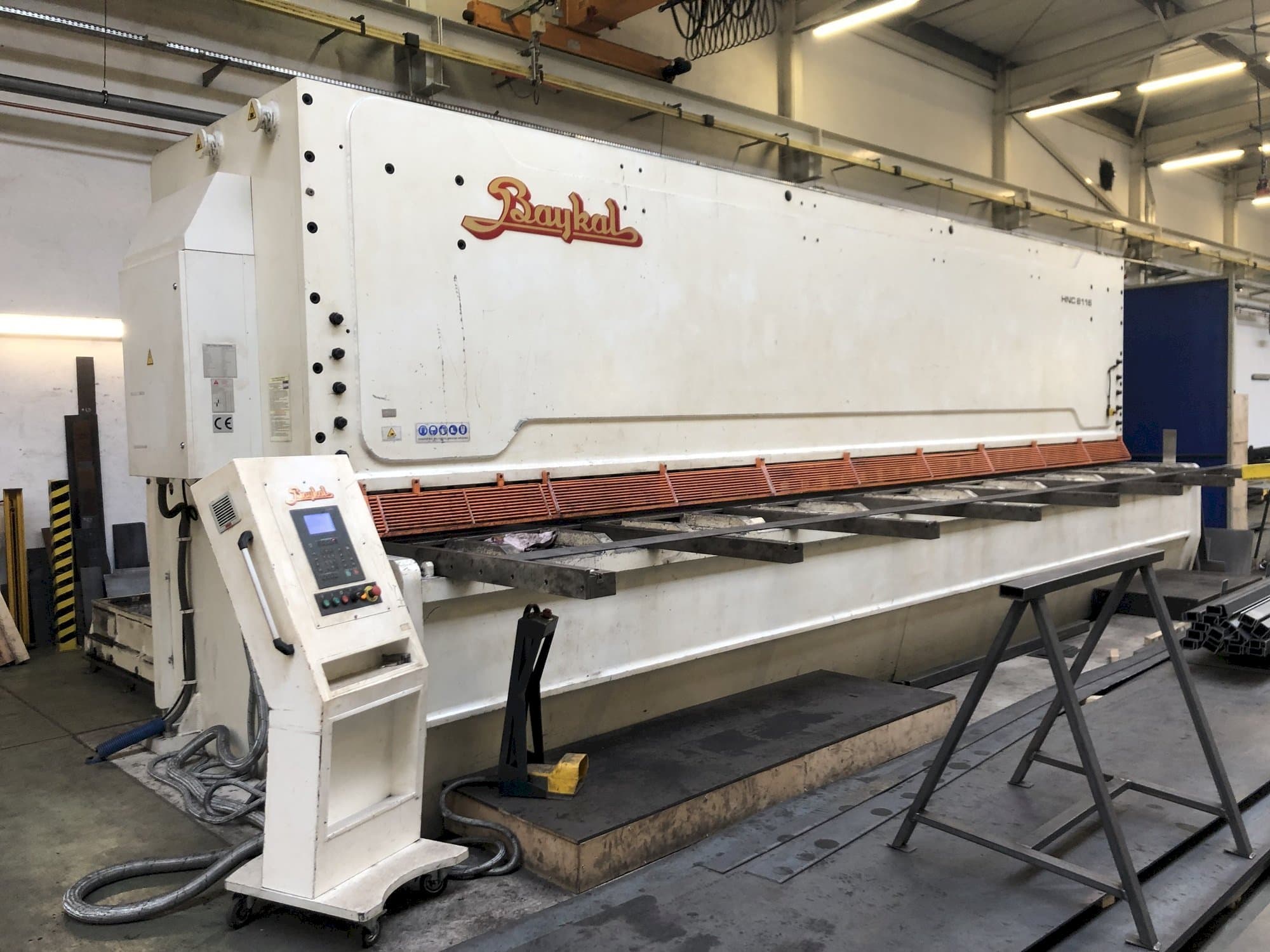

Front view of Baykal HNC 8116  machine

Baykal - HNC 8116PL-SHE-BAY-2014-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Baykal HNC 8116 Shearing machine was manufactured in the year 2014 in Turkiye. It is equipped with a CYBELEC DNC 60 control unit.

Overview

  • brand: Baykal
  • year: 2014
  • MODEL: HNC 8116
  • application type: Shearing
  • Location: Poland
  • machine type: CNC Shearing Machine
  • availability: Sold
  • control unit brand: CYBELEC

Technical Information - Baykal HNC 8116

General Data

  • Measurements width: 9260 mm
  • Measurements depth: 3535 mm
  • Measurements height: 3320 mm
  • Machine weight: 66500 kg

Control Unit

  • Model: DNC 60
  • Brand: CYBELEC

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Cutting capacity: 16 mm
      • - Cutting length: 8060 mm
      • - Front supports with a length of 1000 mm
      • - Side clearance in the frame of 350 mm
      • - Power supply voltage: 380v / 50 hz / 3 phase
      • - Motor power: 37 kw
      • - Strokes per minute: 4-6
      • - Operator finger protection at the front of the machine
      • - Automatic cnc adjustment of blade gap and cutting angle
    • Qualitative Machine Benefits:
      • - Ability to program the backgauge, number of cuts, cutting angle, and blade gap;
      • - Welded steel structure providing the necessary rigidity and durability
      • - Motorized rear backgauge driven by a ball screw with a tilting function to allow cutting of oversized sheets
      • - High-carbon steel blades
      • - Adjustable cutting length
      • - Cutting line illumination
      • - Hydraulic sheet clamping
      • - Portable foot switch, ce mark
      • - Hydraulic overload protection, second set of upper and lower cutting blades
      • - Two independent drawers for the cut material, move along a track

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
