GILARDI - ATHENA 3.10PL-SHE-GIL-2019-00001

Rs. 3,840,136
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

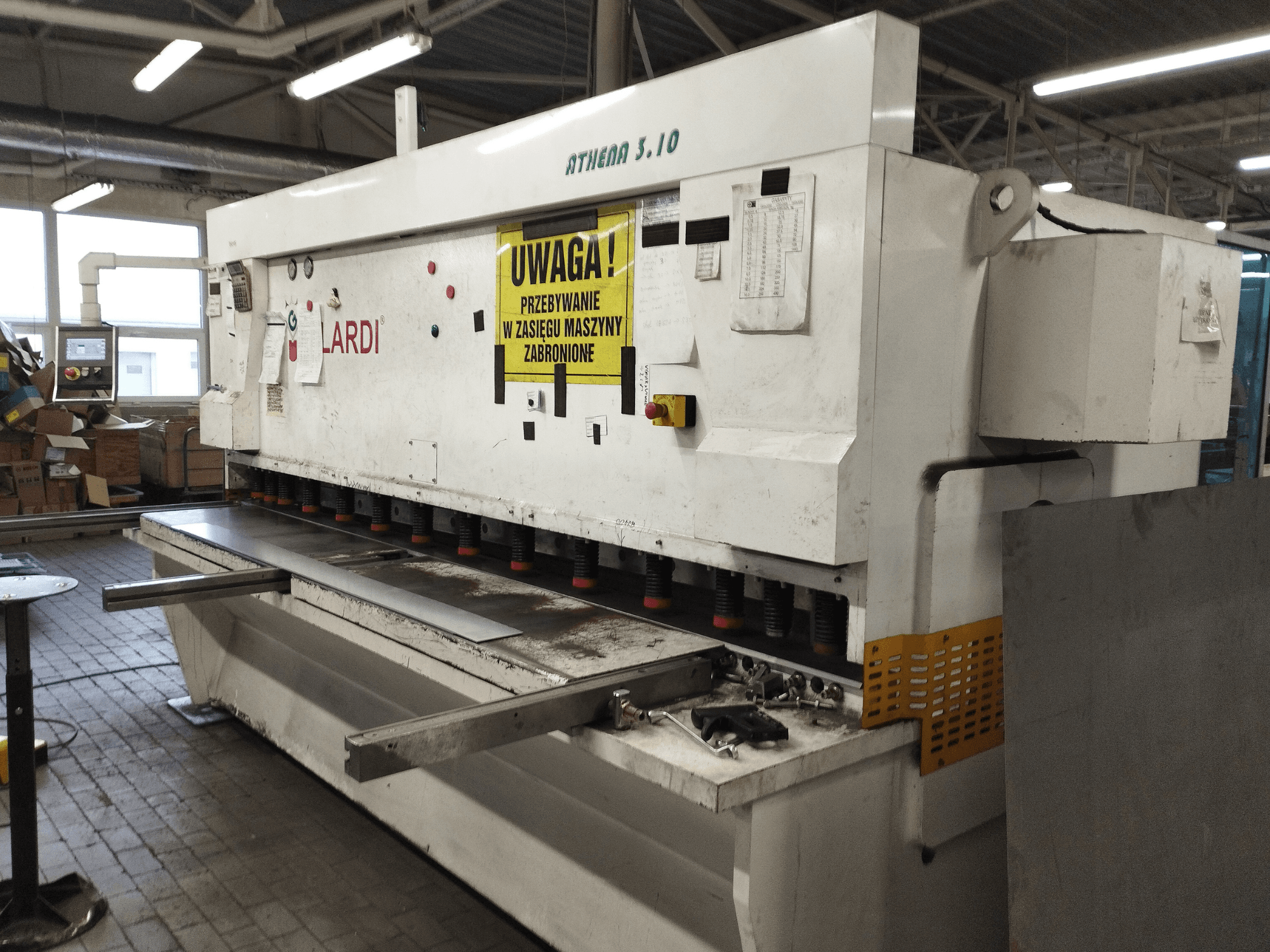

CNC shearing machine manufactured in 2019. This GILARDI ATHENA 3.10 features a working length of 3,100 mm and a cutting capacity of 10 mm at 42 kg/mm². It includes a CYBELEC CybTouch 6 CNC control, automatic blade gap adjustment, and a robust steel frame. If you are looking to get high-quality shearing capabilities, consider the GILARDI ATHENA 3.10 machine we have for sale. Contact us for further details.

Overview

  • brand: GILARDI
  • year: 2019
  • MODEL: ATHENA 3.10
  • application type: Shearing
  • Location: Poland
  • machine type: CNC Shearing Machine
  • control unit brand: CYBELEC

Technical Information - GILARDI ATHENA 3.10

Control Unit

  • Control Brand: CYBELEC
  • Control Model: CybTouch 6

Dimensions

  • Machine Height: 2060 mm
  • Machine Length: 4000 mm
  • Machine Weight: 11600 kg
  • Machine Width: 2080 mm

Technical Specification

  • Max. Cutting Length: 3100 mm

Additional Information

  • Cutting capacity:

    • 10 mm at 42 kg/mm²

    • 6 mm at 70 kg/mm²

  • Adjustable cutting angle: 0.5°–2.5°

  • Cutting rate: 6–14 strokes/min

  • Back gauge travel: 1,000 mm

  • Number of hold-downs: 14

  • Main motor power: 11 kW

  • Throat depth: 175 mm

  • Control: CYBELEC CybTouch 6 CNC with color display

  • Features:

    • Automatic blade gap adjustment

    • Automatic blade stroke adjustment

    • Adjustable blade cutting angle

    • Hardened 4-edge cutting blades (54–60 HRC), divided into 835 mm sections

    • Front sheet supports

    • Operator hand protection guards

    • Sheet hold-down system

    • Rigid welded ST44A1 steel frame

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
