Durma - VS 4006AT-SHE-DUR-2023-00001

Rs. 5,718,661
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

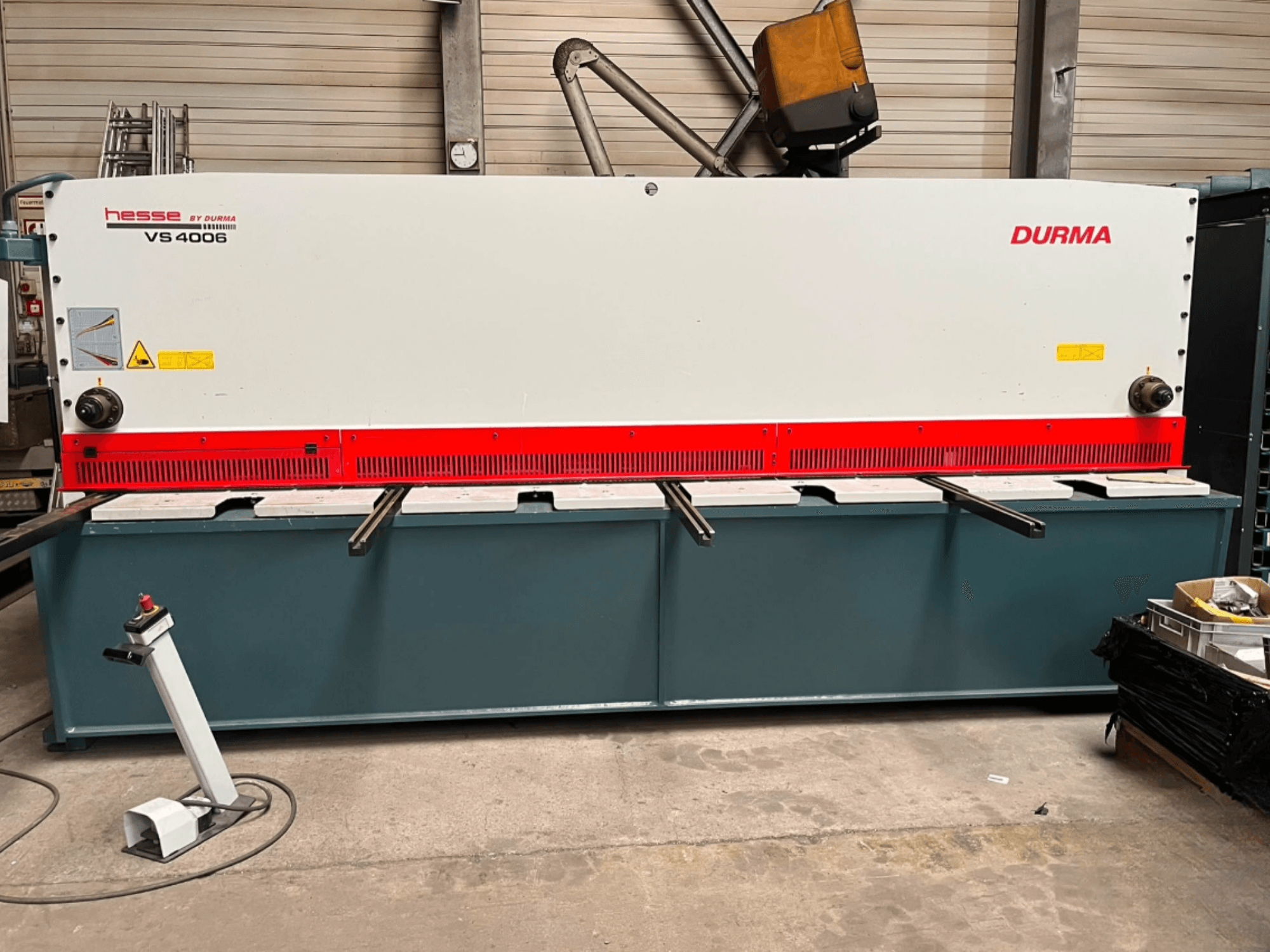

CNC shearing machine manufactured in 2023. This Durma VS 4006 features a cutting length capacity of 4100 mm and can handle a maximum sheet thickness of 6 mm for structural steel. It includes a powerful 11 kW motor and a rear stop/back gauge range of 1000 mm. If you are looking to get high-quality shearing capabilities, consider the Durma VS 4006 machine we have for sale. Contact us for further details.

Overview

  • brand: Durma
  • year: 2023
  • MODEL: VS 4006
  • application type: Shearing
  • Location: Austria
  • machine type: CNC Shearing Machine

Technical Information - Durma VS 4006

Dimensions

  • Machine Height: 2230 mm
  • Machine Length: 4890 mm
  • Machine Weight: 11070 kg
  • Machine Width: 3850 mm
  • Table Width: 494 mm

Technical Specification

  • Max. Cutting Length: 4100 mm

Additional Information

- Cutting Length / Capacity: 4100 x 6 mm

- Max. Sheet Thickness (Structural Steel): 6 mm

- Max. Sheet Thickness (Stainless Steel): 4 mm

- Work Area X / Cutting Length: 4080 mm / 4100 mm

- Stroke: 165 mm

- Stroke Rate: 10 - 20 per minute

- Cutting Angle: 0.5 - 2°

- Hold-down Force: 20 metric tons

- Rear Stop / Back Gauge Range: 1000 mm

- Rear Stop Speed: 200 mm/s

- Motor Power: 11 kW

- Voltage: 400 V

- Frequency: 50 Hz

- Current: 22 A

- Intermittent Current: 32 A

- Short Circuit Breaking Capacity: 10 kA

- Lubricant / Oil Tank Capacity: 180 liters

- Projection in Side Column / Throat Depth: 350 mm

- Number of Support Arms: 3 pcs

- Table Height: 820 mm

- Control Unit: D-touch 7 CNC touchscreen control for rip fence, cutting angle, kerf, cutting length, and piece count

- Additional Features: USB port, cutting line illumination, fold-up ball screw for rip fence, ball bearings in table, 1,000 mm fold-up finger guard, side stop with T-slots, tilting stop, scale, oil filling, rear light barriers

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
