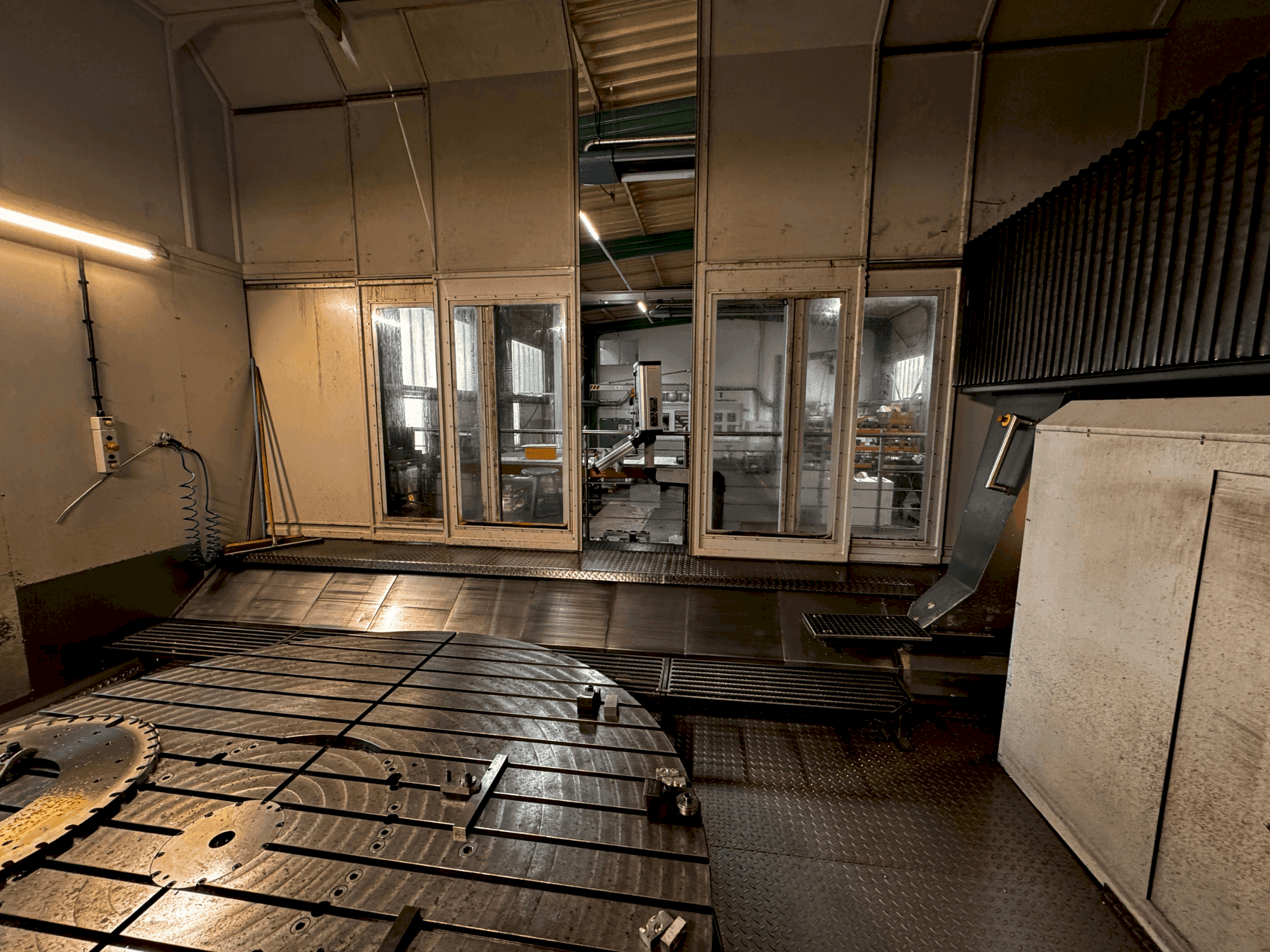

AXA - VPC 2800-UDE-MIL-AXA-2013-00001

Name: AXA VPC 2800-U
Brand: AXA
SKU: DE-MIL-AXA-2013-00001
Price: 21595303 INR
Availability: InStock

Rs. 21,595,303

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used AXA VPC 2800-U Gantry Mill For Sale | gindumac.com

Show in original language

This 5-axis AXA VPC 2800-U gantry milling machine was manufactured in 2013. It features a robust spindle speed range of 30 – 6000 rpm, a powerful main spindle drive of 140 kW, and a large rotary table with a diameter of 2800 mm. The machine includes a tool changer and is equipped with a high-torque drive capable of handling significant loads. If you are looking to get high-quality milling capabilities, consider the AXA VPC 2800-U machine we have for sale. Contact us for more information.

Overview

brand: AXA
year: 2013
MODEL: VPC 2800-U
production hours: 42970
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
control unit brand: HEIDENHAIN

Technical Information - AXA VPC 2800-U

Control Unit

Control Brand: HEIDENHAIN

Dimensions

Machine Depth: 8960 mm
Machine Height: 5000 mm
Machine Weight: 55000 kg

Movement

Number of Axes: 5
X-axis Travel: 3900 mm
Y-axis Travel: 2940 mm
Z-axis Travel: 1100 mm

Technical Specification

Spindle Power: 63 kW
Spindle Speed: 6000 RPM

Additional Information

Additional equipment

Operating mode 3
RMP 60 3D measuring probes, Renishaw
2 handguns
Work area lights
HR 410 electric handwheel, Heidenhain
Collision monitoring system, type: CMS, Brankamp

Machine Benefits

Technical Machine Benefits

Connection voltage: 3x400v/230v/n/pe 50hz // control voltage: 24 v
Max. Back-up fuse: 160 a
Spindle design: hollow shaft motor, water-cooled
Max. Torque at 100% duty cycle: 200. 5 nm
Nominal speed: 3000 rpm
Rotary table: rta8 - 2800
Table diameter with vertical rotation axis: 2800 mm
Max. Transport load with vertical axis of rotation: 18000 kg
Max. Axial force with vertical axis of rotation: 300000 n
Max. Clamping pressure for hydraulic clamping: 63 bar

Extra Information

Machine still under power // The machine has 32 tool positions and is prepared for an additional 32, with SK 50. It has approximately 37,000 operating hours, so we can take a closer look. The NC rotary table has a diameter of 28,000 mm and a load capacity of 15 t. The main spindle has a maximum torque of 200 Nm and 55 kW. /The Axa has linear guides, which were replaced in 2022. with spindle cooling, glass scales, tool calibration.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
