AWEA - AF-1000IT-MIL-AWE-2017-00001

Name: AWEA AF-1000
Brand: AWEA
SKU: IT-MIL-AWE-2017-00001
Price: 6138050 INR
Availability: InStock

Rs. 6,138,050

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used AWEA AF-1000 For Sale | gindumac.com

Show in original language

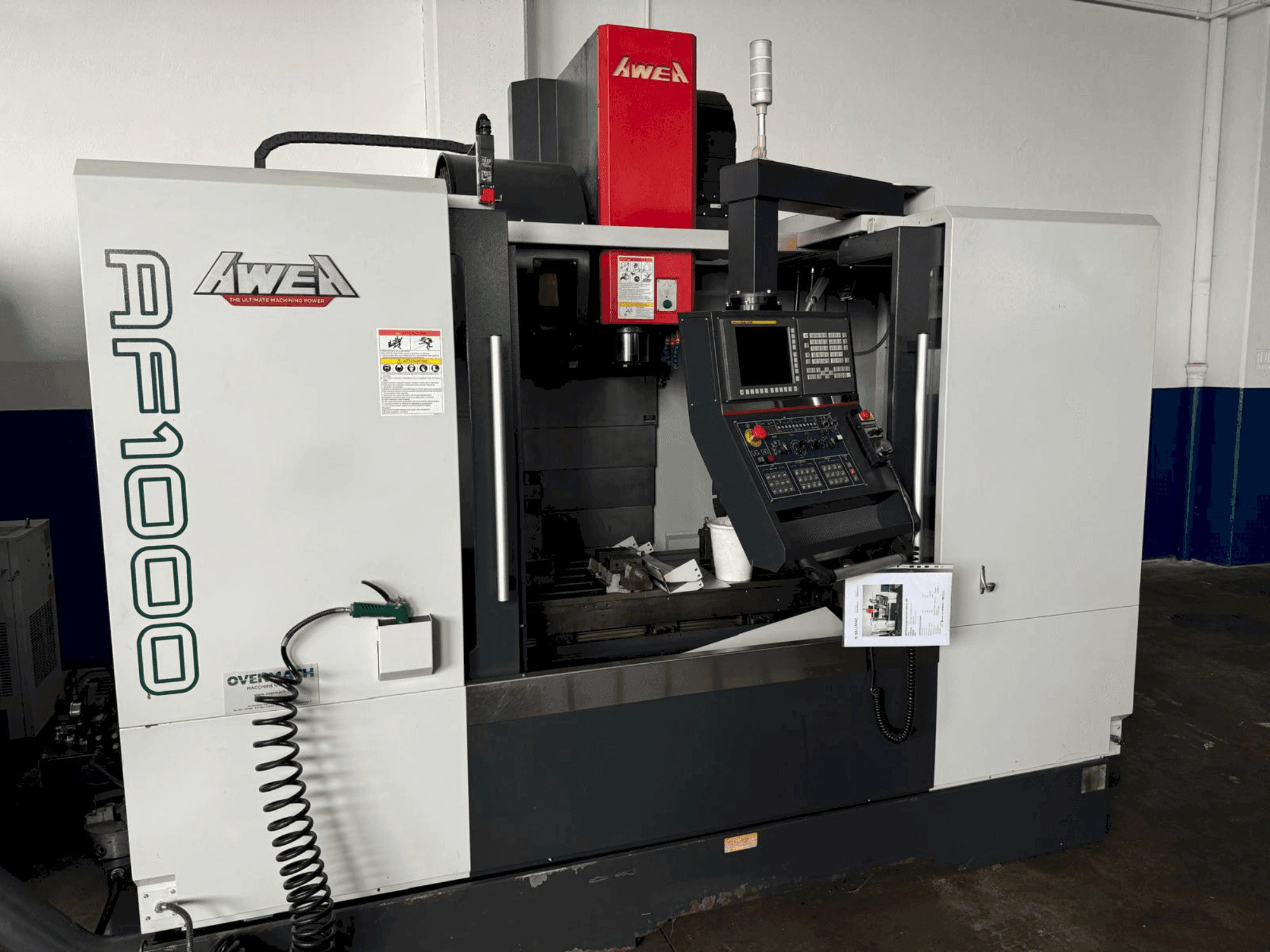

This 4-axis AWEA AF-1000 vertical machining center was manufactured in 2017. It features a 1020 mm X-axis travel, 550 mm Y-axis travel, and 635 mm Z-axis travel. Equipped with a high-speed 12,000 rpm spindle, ISO 40 taper, and a 24-tool arm changer. Includes a 4-axis continuous table and chip conveyor. Ideal for complex machining tasks. Contact us for more information about this machine.

Overview

brand: AWEA
year: 2017
MODEL: AF-1000
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - AWEA AF-1000

General Data

Measurements width: 2140 mm
Measurements depth: 3590 mm
Measurements height: 2630 mm
Machine weight: 7000 kg

Main drive

Spindle speed range: 12000 1/MIN
Tool taper: ISO 40
Number of axis: 4

Movement

X-AXIS Movement: 1020 mm
X-AXIS Rapid traverse: 36000 mm/min
Y-AXIS Movement: 550 mm
Y-AXIS Rapid traverse: 36000 mm/min
Z-AXIS Movement: 635 mm
Z-AXIS Rapid traverse: 30000 mm/min

Table

TSlots size: 18 mm
Number of tslots: 5
Table load: 500 kg

Tools

Max weight: 7 kg
Max tool diameter: 80 / 150 mm
Max tool length: 250 mm

Additional Information

Table dimensions: 1200 × 550 mm
Distance from table surface to floor: 915 mm
Working feed: 10,000 mm/min
Spindle nose to table distance: 100–735 mm
Spindle center to column distance: 640 mm
Axis motors (X/Y/Z) kW/HP: 3.0/4.0; 3.0–4.0/5.4
ATC type: Arm changer
Tool magazine capacity: 24 tools
Required power: 30 kVA

Additional equipment

4-axis continuous table
Chip conveyor (screw type)
Remote handwheel
Supplied with manual and CE certification

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
