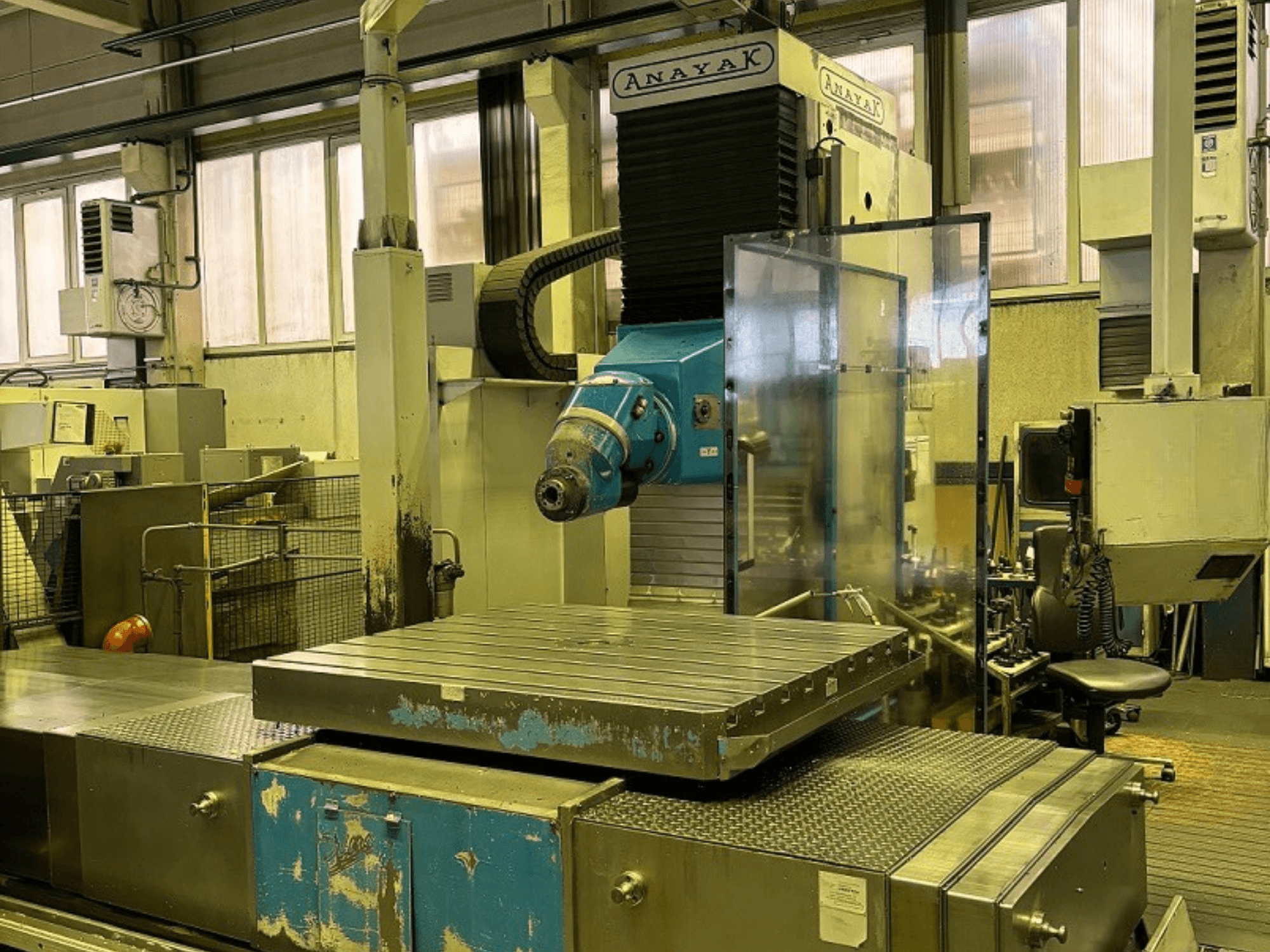

This 4-axis ANAYAK VH plus-2000 was manufactured in 1999. It features an X-axis travel of 2000 mm, Y-axis travel of 1500 mm, and Z-axis travel of 1460 mm. The machine is equipped with a powerful spindle offering a speed range of 24 - 3000 rpm and a maximum table load of 6 t. If you are looking to get high-quality milling capabilities, consider the ANAYAK VH plus-2000 bed type milling machine we have for sale. Contact us for further details.
Overview
- brand: ANAYAK
- year: 1999
- MODEL: VH plus-2000
- application type: Milling
- Location: Germany
- machine type: Bed Type Milling Machine
Additional Information
- Control Unit: Heidenhain TNC426CB
- X-Axis Travel: 2000 mm (over rotary table)
- Y-Axis Travel: 1500 mm (Milling capacity approx. 1200 mm)
- Z-Axis Travel: 1460 mm (Vertical head milling capacity approx. 1295 mm / Horizontal approx. 1360 mm)
- Spindle Power: 35 / 30 kW
- Torque: 1337 / 1146 Nm
- Spindle Speed Range: 24 - 3000 rpm
- Feed Range (X-Y-Z): 10 - 3000 mm/min
- Feed Range (B-Axis): 0.1 - 1.5 rpm (min⁻¹)
- Rapid Traverse (X-Y-Z): 10000 mm/min
- Rapid Traverse (B-Axis): 3 rpm (min⁻¹)
- Tool Taper: SK50 DIN2080
- Machine Weight: approx. 24 t
- Rotary Table Clamping Surface: 1350 x 1550 mm
- T-Slots: 9 x T28h7 / 150 mm distance
- Max. Table Load: 6 t
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
