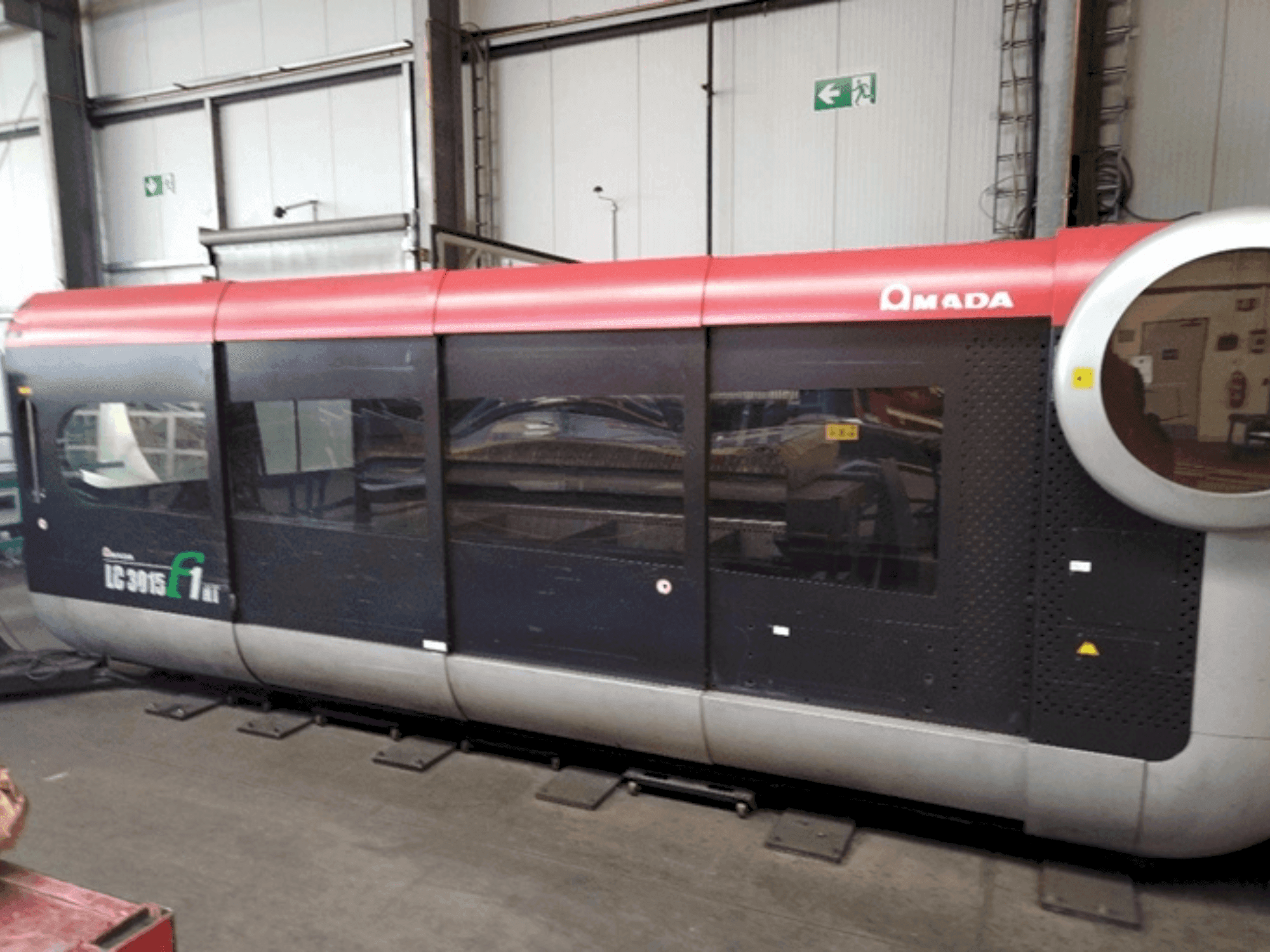

AMADA - LC 3015 F1 NTDE-CUT-AMA-2009-00001

Machine Benefits

Technical Machine Benefits

• Power required: 98 kva
• Capacity: 4 kw
• Laser resonator: af4000i-b
• Transformer: marx tg 516

Extra Information

Machine with transport box (L x W x H): 7120×3150×2370 mm Weight (with transport box): 13,500 kg Laser Resonator (L x W x H): 2460×1140×1965 mm Laser Resonator Weight: 1,300 kg Combined Unit (L x W x H): 2332×1638×2201 mm Combined Unit Weight: Approximately 1,750 kg Transformer (L x W x H): 950×800×950 mm Transformer Weight: 484 kg Pallet Changer (L x W x H): 3868×2352×1010 mm Pallet Changer Weight (without liftable ball supports): 2,450 kg Pallet Changer Weight (with liftable ball supports [option]): 3,500 kg Electrical Connections Total Power Connection of the System: 400 V / 127 KVA Transformer Power Connection: 400 V / 89 kVA / 160 A Combined Unit Power Connection: 400 V / 38 kVA /55A Laser Resonator Power Connection: 200 V / 55 KVA Control and Drives Power Connection: 200 V / 34 kVA Operating Voltage: 3×400 V(±10%)/PE/50 Hz Max. Current Draw: 55 A Transformer Rated Power: 89 KVA Transformer Rated Primary Voltage: 3×400 V(±10%) Transformer Rated Secondary Voltage: 3×200 V Transformer Rated Primary Current: 132 A Transformer Rated Secondary Current: 257 A Compressed Air and Gas Requirements Total Compressed Air Requirement (air not used as cutting gas): 7 bar; 69.6 m 3/h Total Compressed Air Requirement (air used as cutting gas): Max. 9.7 bar; 132.6 m 3/h Compressed Air for Machine Functions ("Cooling Cut" and "Oil Shot"): 6 bar; 18 m 3/h Compressed Air for "ECO CUT": 6 bar; 18 m 3/h Compressed Air for Fume Extraction System DELTAComp 1500-8/9: 5 bar; 5.6 m 3/h Laser Gas Consumption: 10 liters per hour Cutting Gases: Oxygen, Nitrogen, and compressed air (if used as cutting gas) are required. Environmental and Location Requirements Operating Room Temperature: +15 to +35 °C Room Height: At least 4 m Lighting: At least 500 Lux Humidity: Less than 75% (without dew condensation) Vibrations: Must be resistant to seismic acceleration below 0.05 G (0.49 m/s 2) with an amplitude below 5 µm. Foundation Load Capacity: ≥49 kN/m 2
