AMADA - ASTRO 100NTFR-BEN-AMA-2007-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- AMADA ASTRO 100NT Bending machine

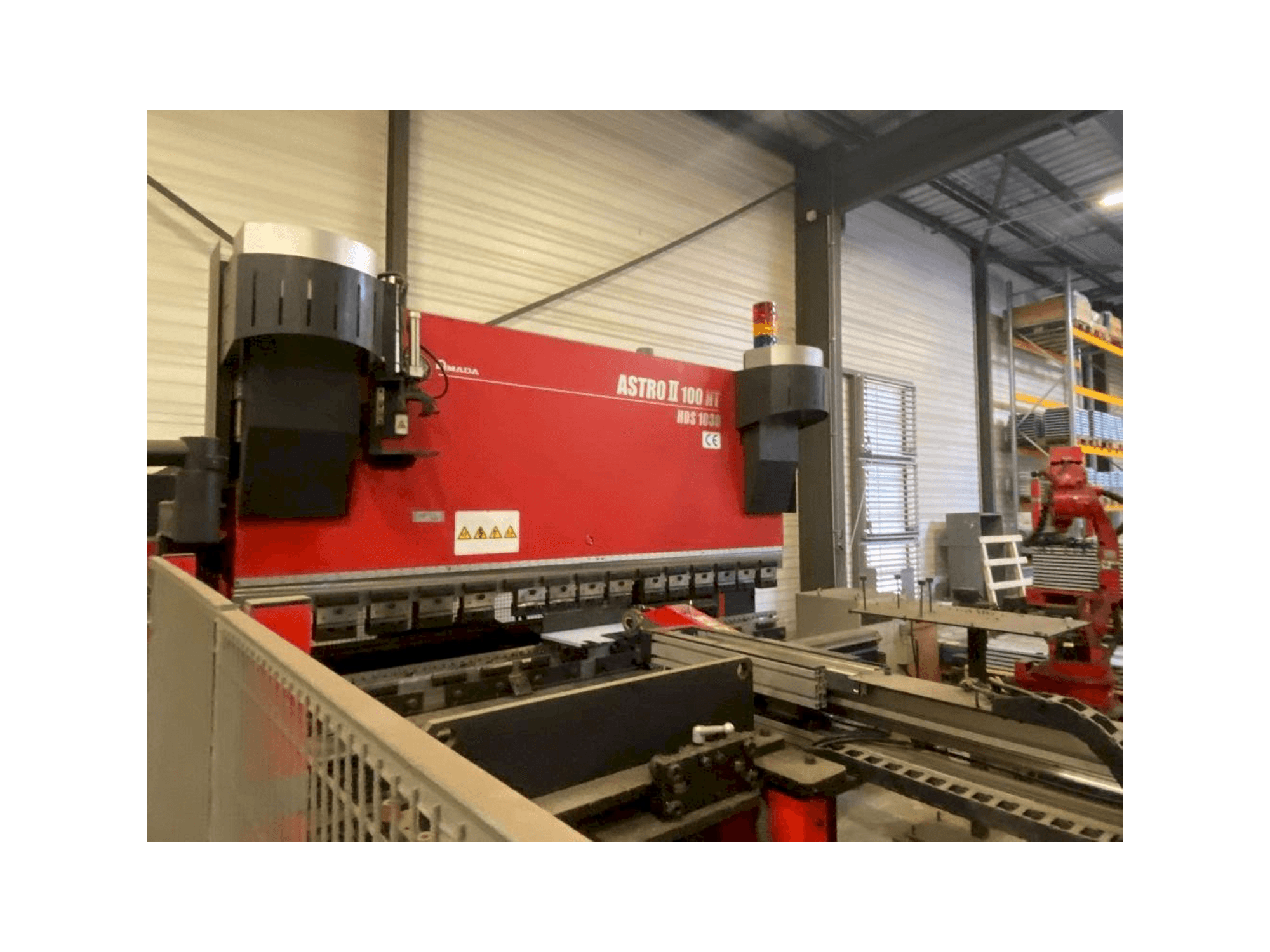

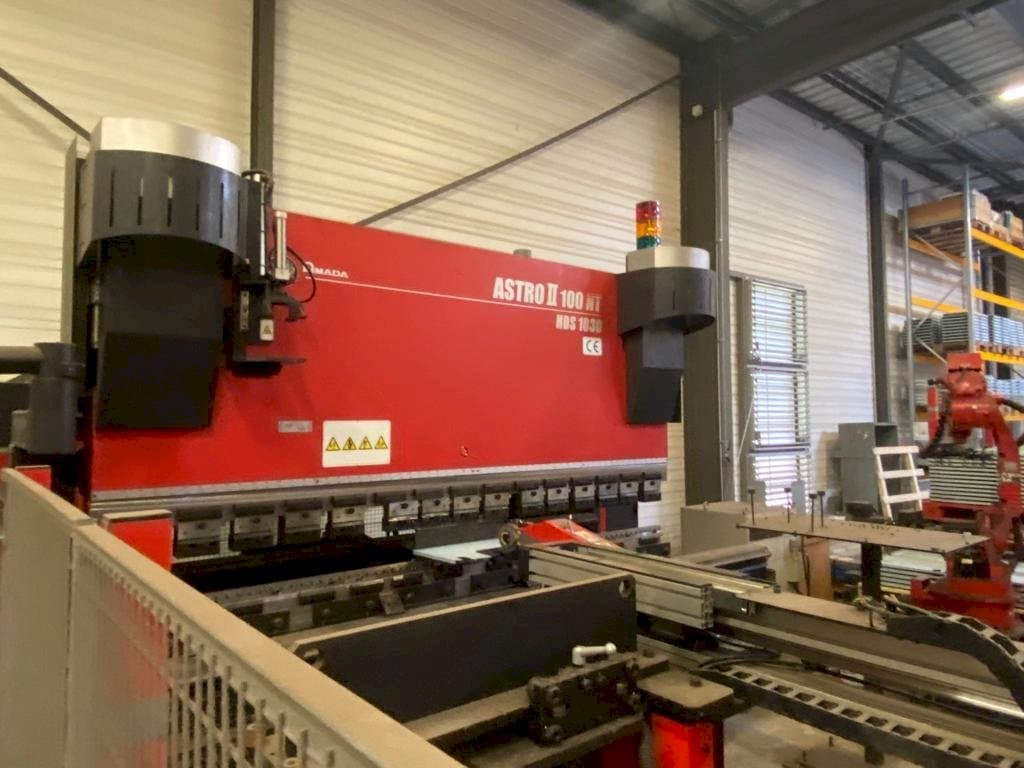

This AMADA ASTRO 100NT Bending machine was manufactured in the year 2007 in Japan. It is equipped with an AMADA AMNC II control unit and has 5 axis. The machine has a pressing force of 1000 kN.
Overview
- brand: AMADA
- year: 2007
- MODEL: ASTRO 100NT
- application type: Bending
- Location: France
- machine type: Press Brake
- availability: Sold
- control unit brand: AMADA
Technical Information - AMADA ASTRO 100NT
General Data
- Measurements width: 8035 mm
- Measurements depth: 4455 mm
- Measurements height: 2971 mm
Control Unit
- Model: AMNC II
- Brand: AMADA
Main drive
- Pressing force: 1000 kN
- Number of axis: 5
Additional Information
- Technical Machine Benefits:
- - Folding length capacity 3 meters
- - 415mm gooseneck
- - Distance between uprights: 2,700mm
- - Versatile split tooling different part sorts
- - With magazine of 5 pallets of tools
- - Minimum thickness: 0. 6mm, maximum thickness: 2. 5mm
- - Maximum room dimensions: blanks 800x1000 mm – profiles 300x1800 mm
- - Dimension mini pieces: 150 x 150 mm
- - Load capacity 20kg
- - Program sequence: 20 max
- Qualitative Machine Benefits:
- - Gripping system: pliers or suction cup
- - Astro mp20 loading/unloading robot
- - Gripping system: suction cups
- - Loading capacity: horizontal 450 mm – vertical 120 pieces
- - Thickness control: detector
- - Detection capacity: from 0. 3 to 4. 4 mm
- - Press brake/robot control: amnc ii-pc
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
