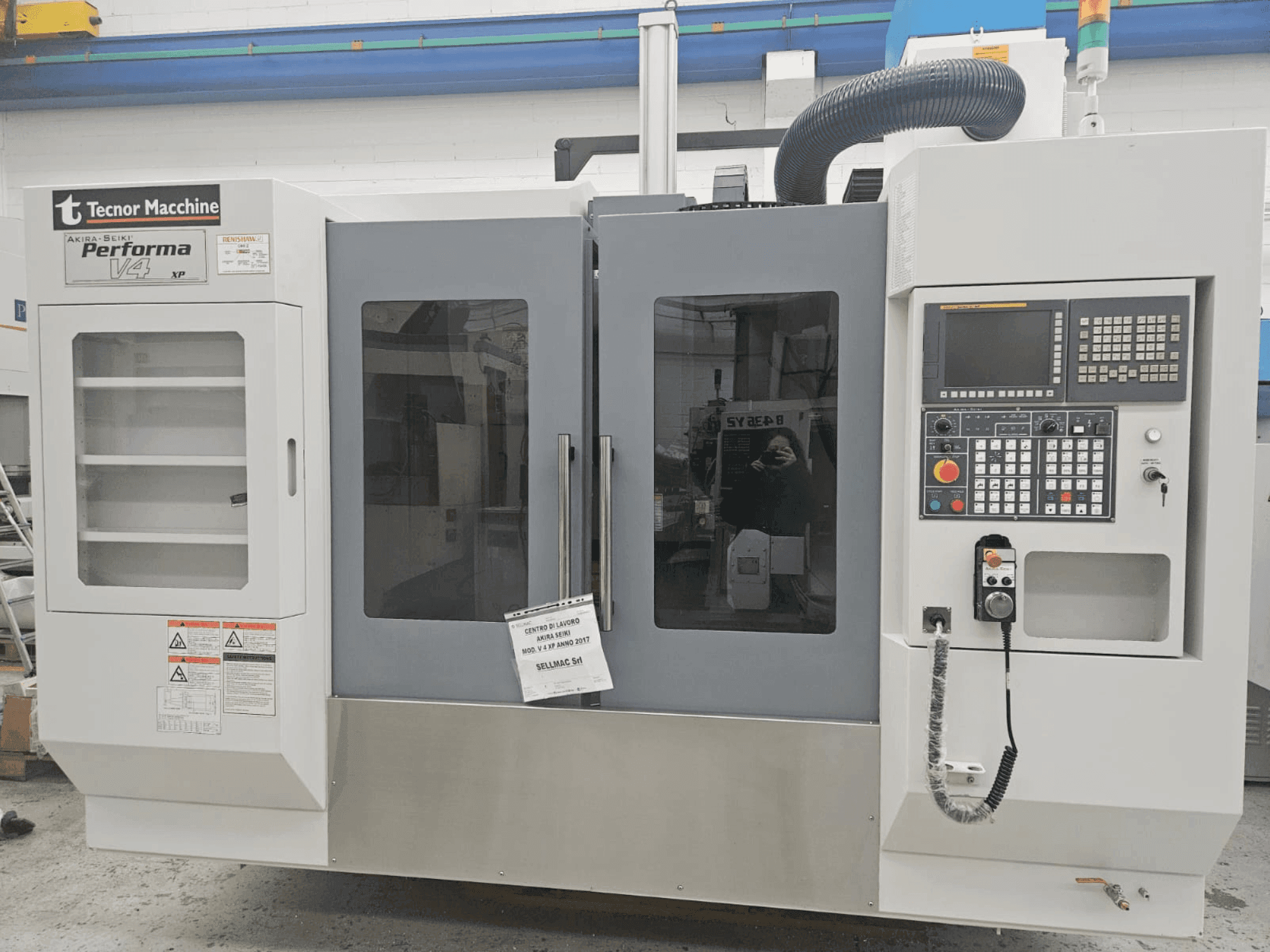

Akira Seiki - Performa V 4 XPIT-MIL-AKI-2017-00001

Additional equipment

• Chip conveyor: included

• Spindle head cooling system: high pressure 20 bar

• Tool presetting with sensor on table TS 27R

• 4-axis table TJR model AR210 with tailstock

• Fume extractor: included

• Renishaw probe OMP 60

Extra information

• Distance from table surface to spindle nose: 75–635 mm

• Distance from column to spindle center: 550 mm

• Working feed X/Y/Z axes: 12,000 mm/min

• Table dimensions: 1200 × 480 mm

• Table surface configuration (T-slots): 18 × 80 × 5 mm

• Maximum load on table (part + fixture): 1,300 kg

• Standard load on table (part + fixture): 850 kg

• Positioning accuracy: ±0.015 mm

• Repeatability: ±0.01 mm

• Tool magazine (ATC) capacity: 28 tools

• Cooling pump motor: 700 W

• Cooling tank capacity: 200 L

• Rigid tapping with double-speed return
