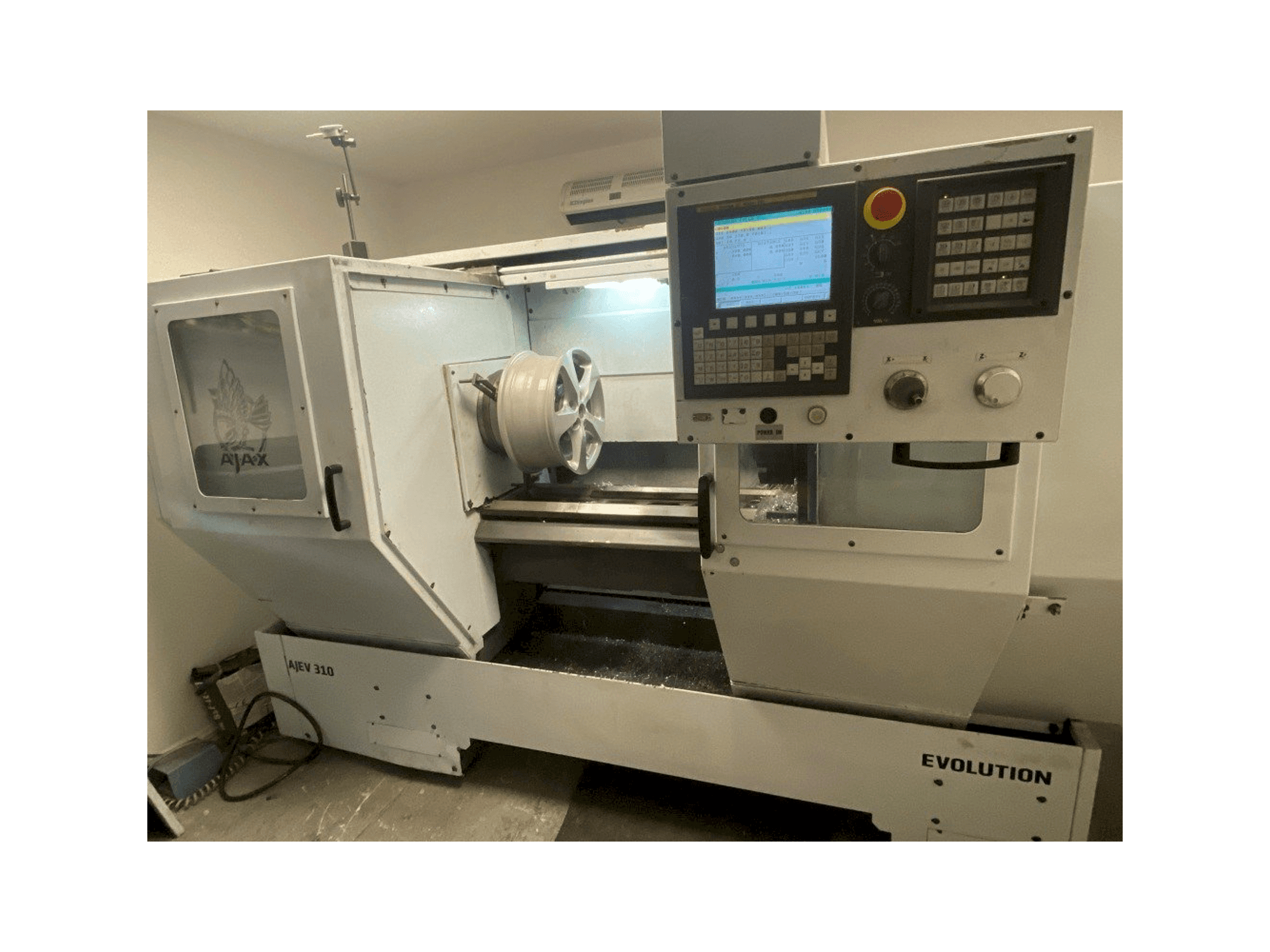

Front view of AJAX EVOLUTION AJEV 310 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

AJAX EVOLUTION AJEV 310

Photo Gallery

AJAX - EVOLUTION AJEV 310IE-TUR-AJA-2014-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
AJAX EVOLUTION AJEV 310

Show in original language

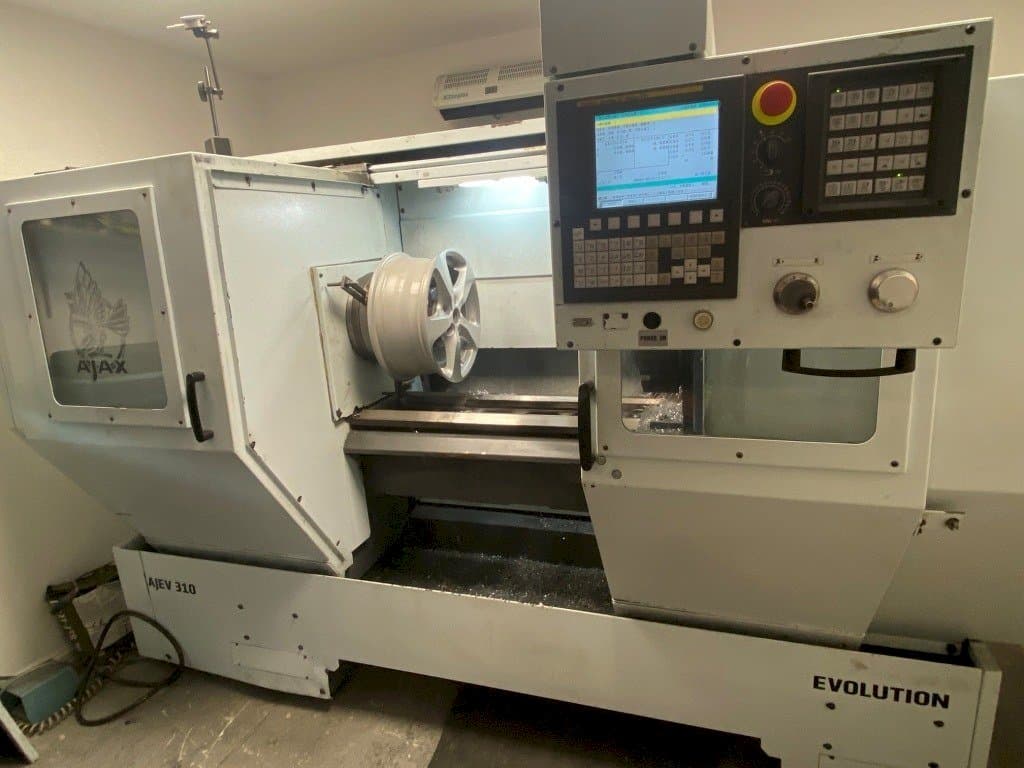

This AJAX EVOLUTION AJEV 310 Lathe was manufactured in the year 2014 in the United Kingdom. It is operated through a FANUC Series Oi Mate-TD control unit. This 2 axis machine works with a spindle speed up to 2500 rpm and a hydraulic chuck 310 mm. It includes some additional equipment as a Pragati BTP-80 8 station turret. This machine has mainly worked in the allow wheel repairs industry

Overview

brand: AJAX
year: 2014
MODEL: EVOLUTION AJEV 310
application type: Turning
Location: Ireland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - AJAX EVOLUTION AJEV 310

General Data

Measurements width: 2800 mm
Measurements depth: 1350 mm
Measurements height: 1850 mm
Machine weight: 2300 kg

Control Unit

Model: Series Oi Mate-TD
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 2500 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 310 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece drm over bed: 610 mm
Workpiece z: 1000 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 8
Max tool diameter: 40 mm
Type of tool holder: Pragati BTP-80

Media

Main electronic connection: 415V 3PH 50Hz

Additional equipment

- Pragati BTP-80 8 Station Turret
- Selection of tool holders
- Tailstock
- 310mm Hydraulic Chuck

Additional Information

Machine history

Material type: Aluminium
End product: Allow wheels
Industries: Allow wheel repairs

Machine Benefits

Technical Machine Benefits:
- - null

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
