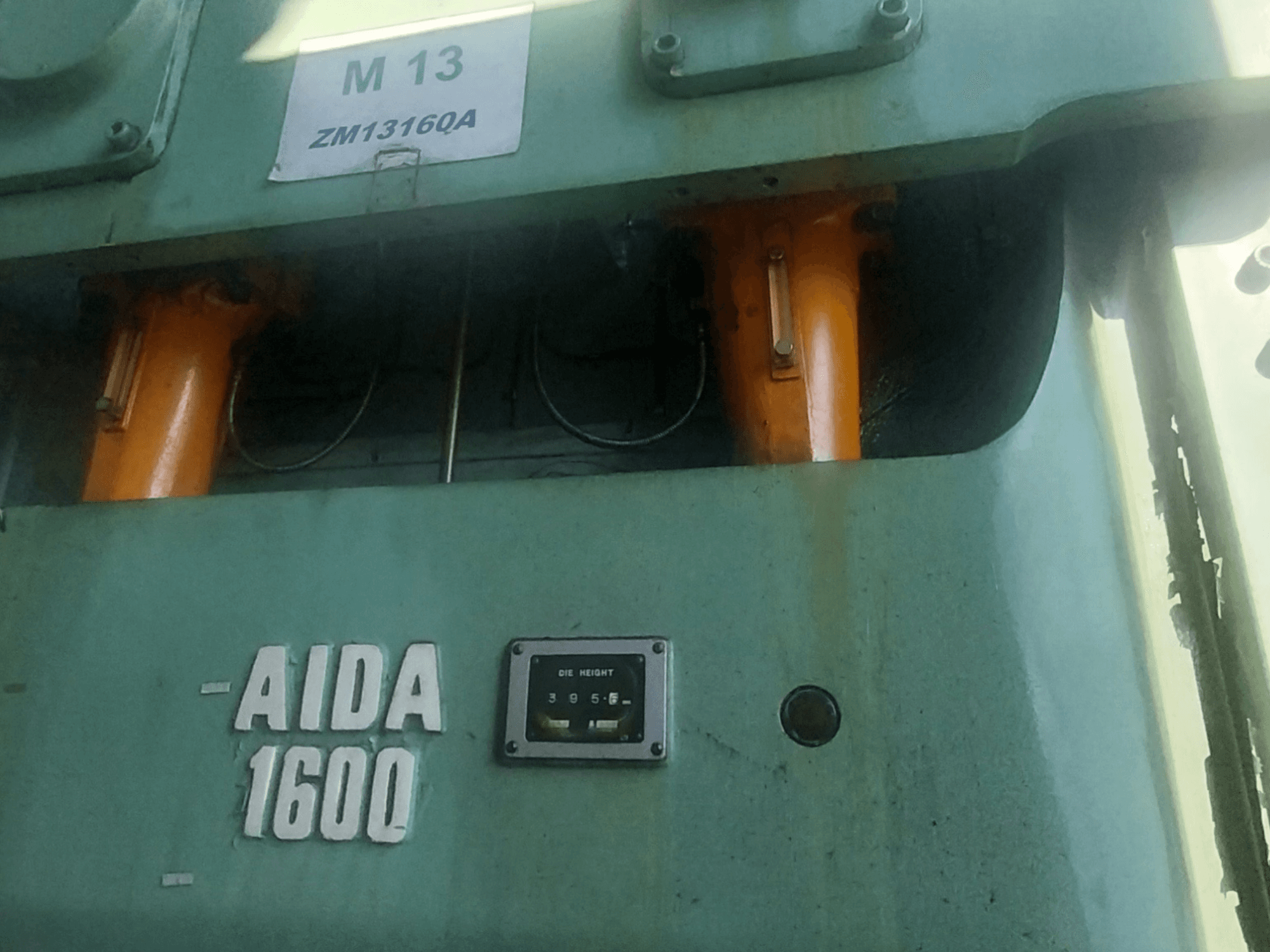

Mechanical stamping press manufactured in 2004. This AIDA NC2-1600(2) features a pressing force of 160 tons and a slide stroke of 200 mm. It has a slide area of 1500 x 580 mm and a bolster area of 2040 x 760 mm. If you are looking to get high-quality stamping capabilities, consider the AIDA NC2-1600(2) machine we have for sale. Contact us for further details.
Overview
- brand: AIDA
- year: 2004
- MODEL: AIDA NC2-1600(2)
- application type: Stamping
- Location: Czech Republic
- machine type: Mechanical Stamping Press
Technical Information - AIDA AIDA NC2-1600(2)
Technical Specification
- Max. Stroke: 200 mm
- Stamping Force: 1600 Kn
Additional Information
Strokes per minute: 30–55 spm
Die height: 450 mm
Slide adjustment: 100 mm
Slide area: 1500 x 580 mm
Bolster area: 2040 x 760 mm
Main motor: 15 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
