- ➤ Used AgieCharmilles FI 640 CC For Sale | gindumac.com

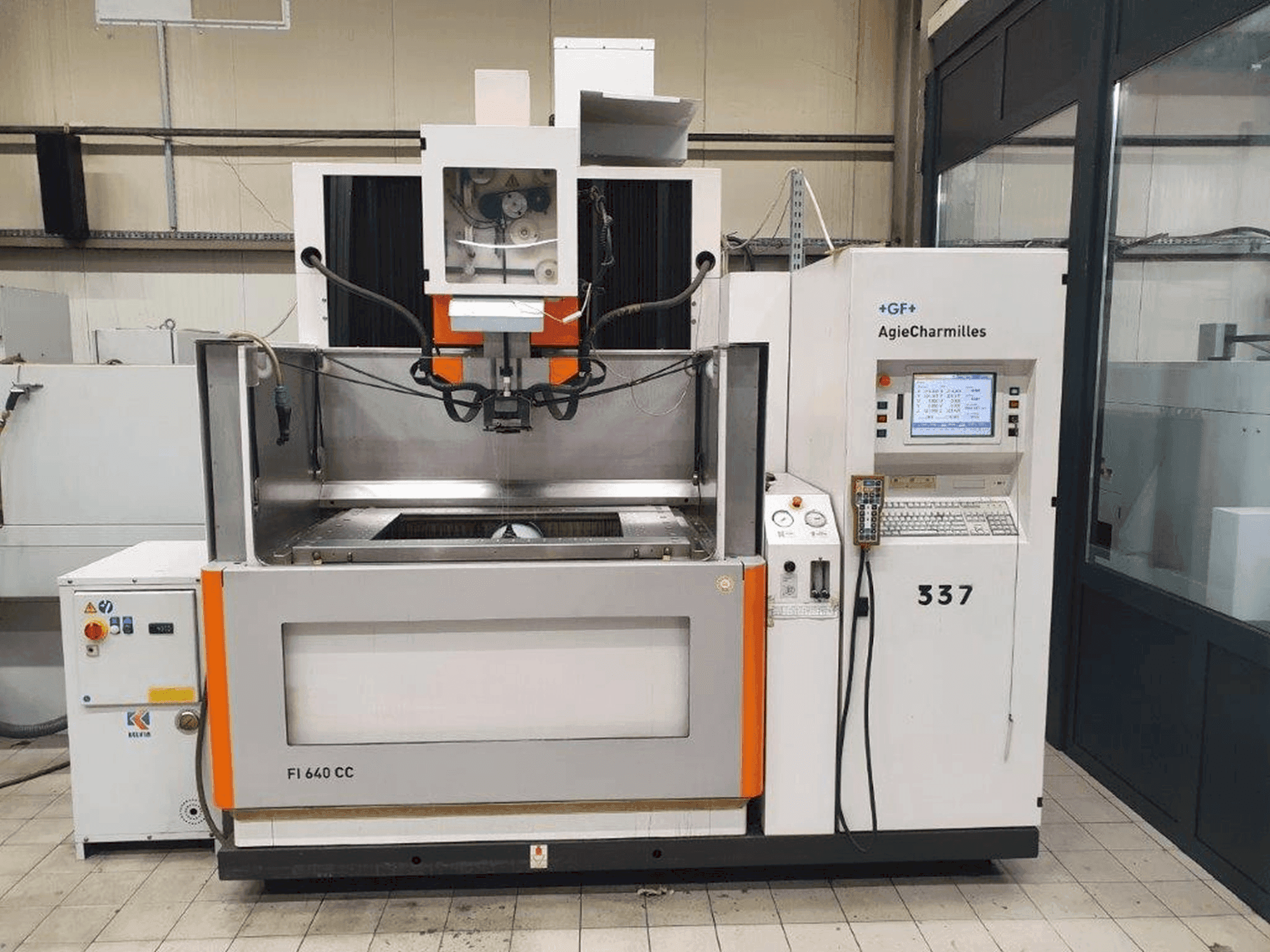

This 5-axis AgieCharmilles FI 640 CC was manufactured in 2008, featuring a robust design with machine dimensions of 2550 × 2700 × 2545 mm and a weight of 5500 kg. It supports a maximum workpiece weight of 3000 kg and dimensions up to 1300 × 1000 × 510 mm. Equipped with collision protection and automatic wire threading, it's ideal for precise wire EDM tasks. Contact us for more information about this machine.
Overview
- brand: AgieCharmilles
- year: 2008
- MODEL: FI 640 CC
- production hours: 9220
- application type: EDM
- Location: Poland
- machine type: Wire EDM Machine
- control unit brand: FANUC
Technical Information - AgieCharmilles FI 640 CC
Control Unit
- Control Brand: FANUC
- Control Model: PC
Dimensions
- Machine Depth: 2550 mm
- Machine Height: 2545 mm
- Machine Weight: 5500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 800 mm
- Y-axis Travel: 550 mm
- Z-axis Travel: 510 mm
Additional Information
Machine Benefits
Technical Machine Benefits
- Max. Wire tilt angle: ±30°
- Feed rate: 0 – 1500 mm/min
- Maximum workpiece dimensions: 1300 × 1000 × 510 mm
- Maximum cutting height (in immersion): 510 mm
- Standard supply voltage: 380 or 400 v
- Frequency: 50 or 60 hz
- Collision protection: x, y, z, u, v
Extra Information
Tools Standard wire guide diameter: 0.25 mm Optional wire guide diameters: 0.1, 0.15, 0.2, 0.3, 0.33 mm Automatic wire threading Automatic re-threading Max. threading height: 510 mm Min. hole diameter for threading: 0.6 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
