YCM FV102A

Photo Gallery

YCM - FV102AIL-MIL-YCM-2008-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
YCM FV102A Milling

Show in original language

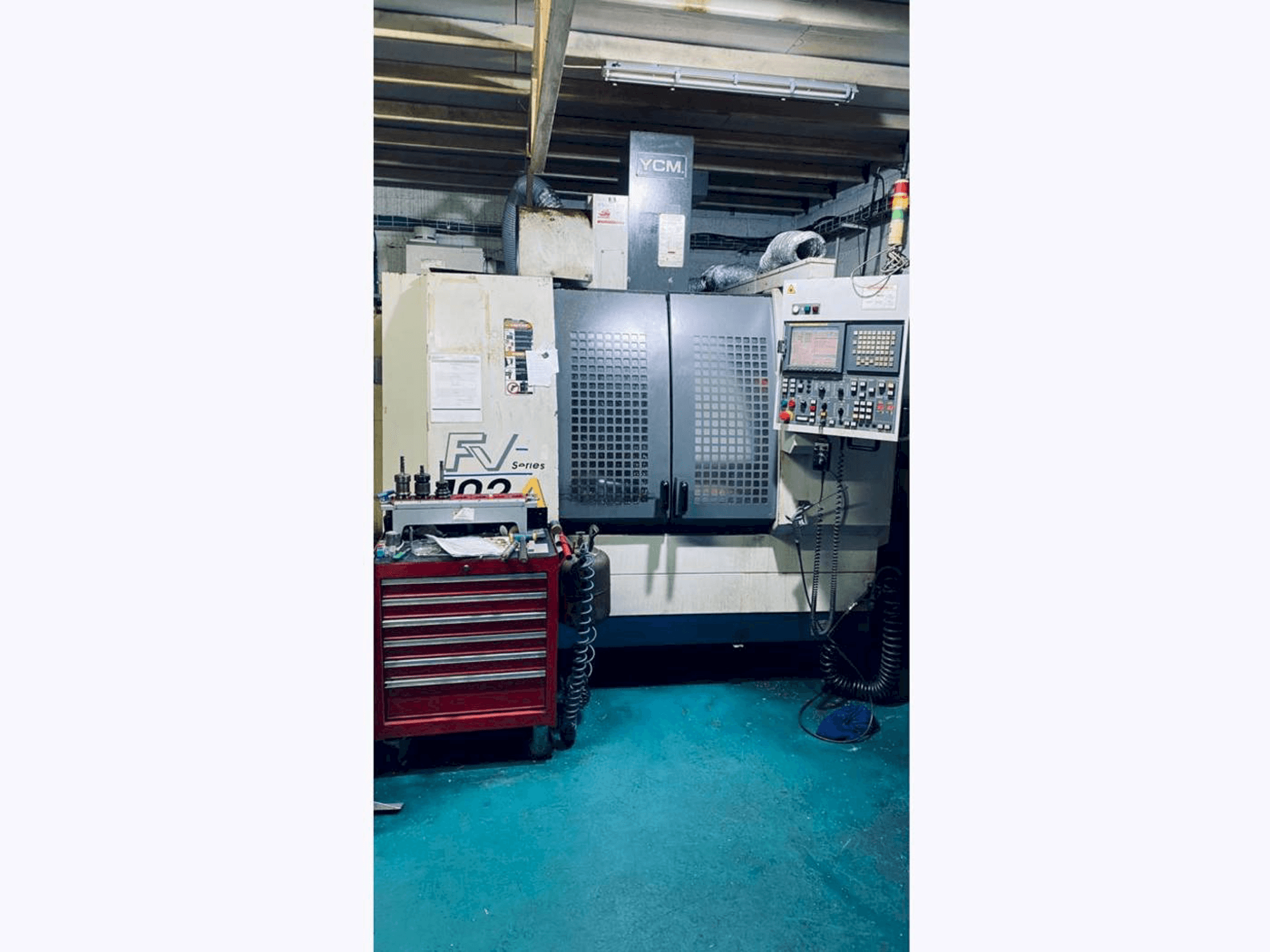

This YCM FV102A Vertical Machining Center was built in the year 2008. It is equipped with a YCM Fanuc control unit and a MXP-200FC control system. This 3 axis machine can operate with a speed up to 12000 rpm.

Overview

brand: YCM
year: 2008
MODEL: FV102A
application type: Milling
Location: Israel
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - YCM FV102A

General Data

Measurements width: 3500 mm
Measurements depth: 3000 mm
Measurements height: 3000 mm
Machine weight: 5350 kg

Control Unit

Model: MXP-200FB
Brand: FANUC

Controller

Brand: CNC MXP-200FB
Model: MXP-200FB

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 15 kW
Tool taper: BBT40
Number of axis: 3

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 1020 mm
Z-AXIS Movement: 540 mm

Table

Outer length: 1120 mm
Outer width: 520 mm
Min distance between vertical spindle and table: 690 mm
Table load: 500 kg

Tools

Max weight: 6 kg
Max tool length: 90 x 300 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
