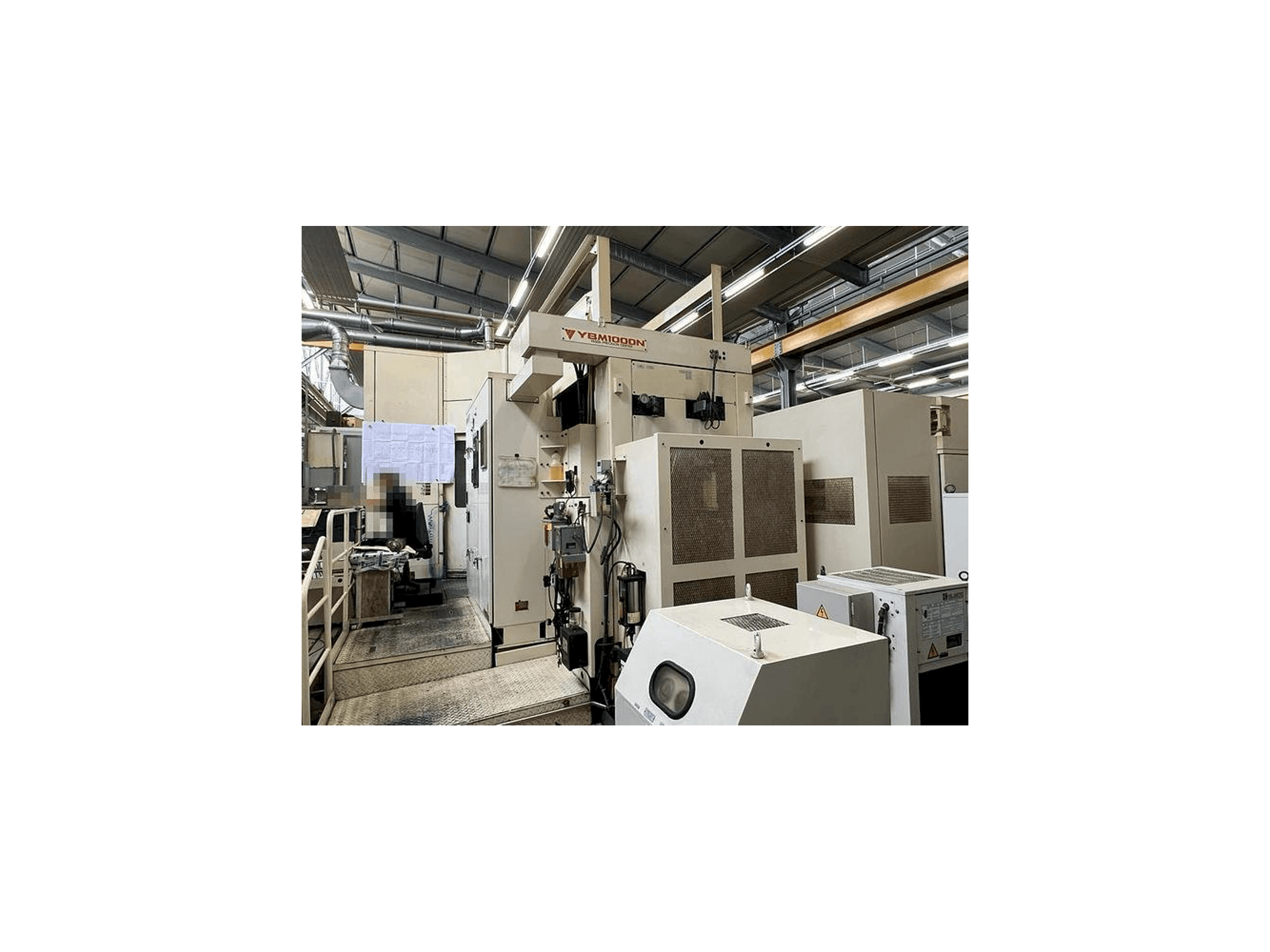

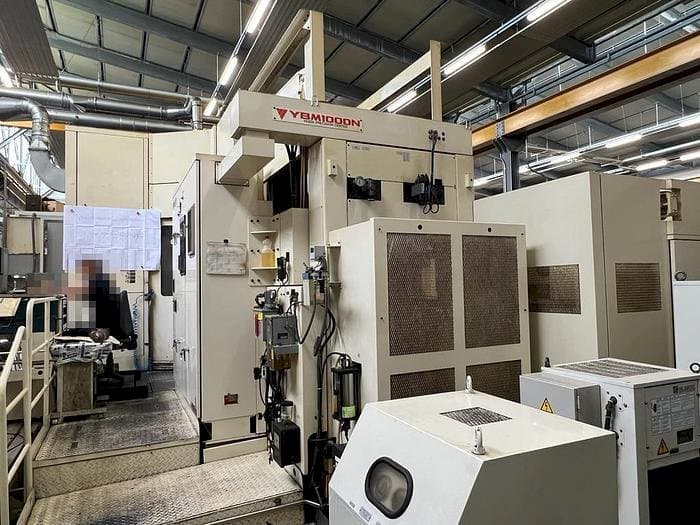

YASDA YBM 1000N Horizontal Machining center

Show in original language

This YASDA YBM 1000N Horizontal Machining center was manufactured in the year 2000. The machine has a spindle speed of 10-15000 rpm.

Overview

brand: YASDA
year: 2000
MODEL: YBM 1000N
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre

Technical Information - YASDA YBM 1000N

Main drive

Number of spindles: 1
Spindle speed range: 50-15000 1/MIN

Movement

X-AXIS Movement: 2100 mm
Y-AXIS Movement: 1400 mm
Z-AXIS Movement: 1700 mm

Tools

Max weight: 20 kg
Max tool diameter: 300 mm
Max tool length: 550 mm
Type of tool holder: BT 50 (7/24 Taper)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tank capacity: 2,7 l
- - Spindle bearing inner diameter: 90 mm
- - Distance from pallet top to spindle center: o mn to 1400 mm
- - Spindle tool holder: mas403 p50t- type retention knob
- - Pump discharge :200 cc/min
- - Tool storage capacity: 240
- - Pallet surface configuration: 1250x1250 mm
- - Weight of pallet :175 mm.
- - Edge locator: 1400 kg
- - Chip conveyor ts type

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
