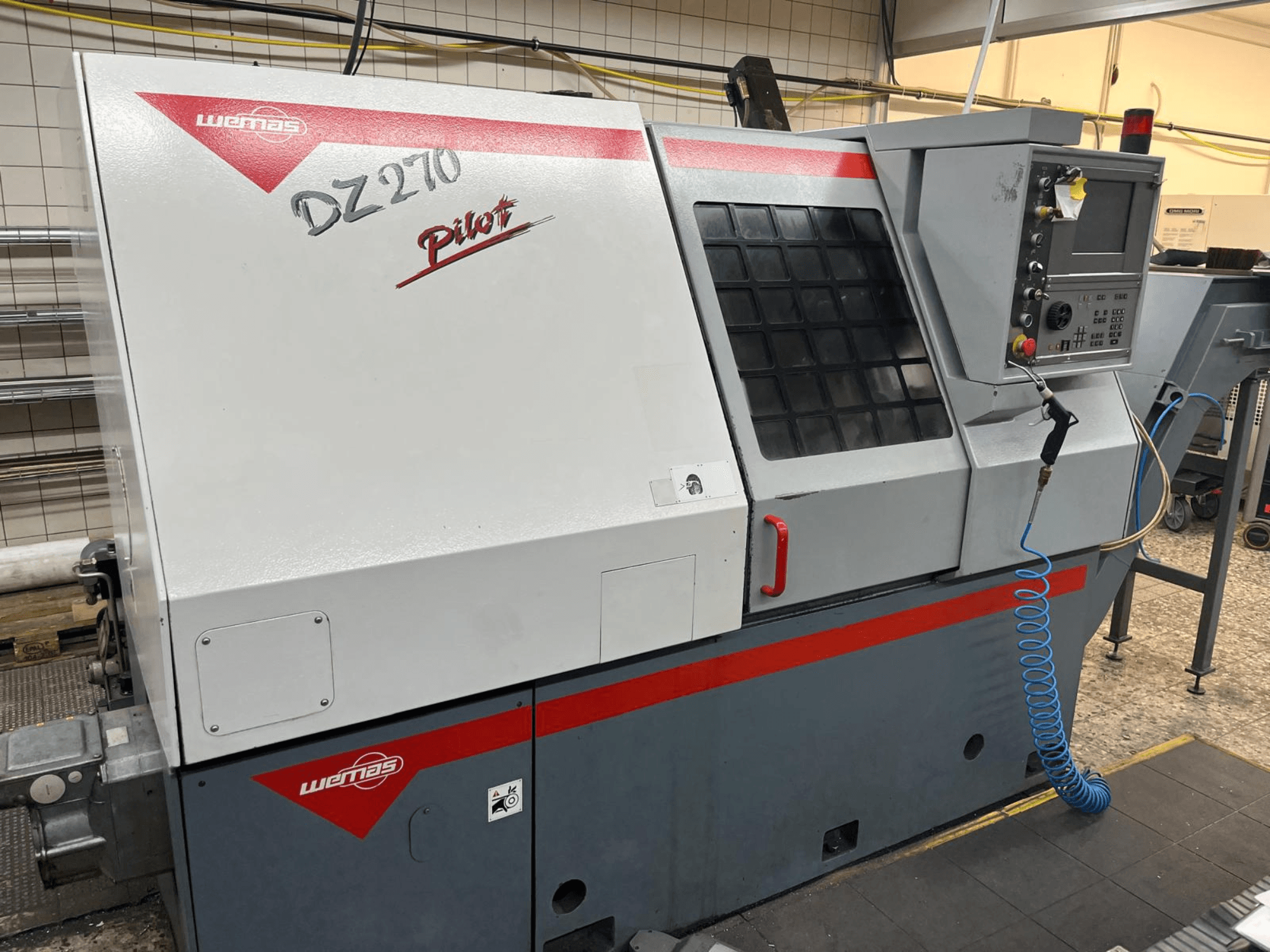

This 3-axis WEMAS DZ 270 was manufactured in 2002. It features a turning diameter of 300 mm and a turning length of 754 mm. The machine is equipped with a HEIDENHAIN control unit and a 12-station disc turret from DUPLOMATIC, allowing for efficient tool management. If you are looking to get high-quality turning capabilities, consider the WEMAS DZ 270 horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: WEMAS
- year: 2002
- MODEL: DZ 270
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: HEIDENHAIN
Technical Information - WEMAS DZ 270
Control Unit
- Control Brand: HEIDENHAIN
Movement
- Number of Axes: 3
- X-axis Travel: 300 mm
- Z-axis Travel: 754 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
Additional Information
Turning diameter: 300 mm
Turning length: 754 mm
Turret brand: DUPLOMATIC (Italy)
Turret positions: 12-station disc turret
Driven tools: Yes (axial and radial tool holders visible)
Main voltage: 3x 400 V ~
Frequency: 50 Hz
Total power requirement: 19 kVA
Nominal current: 50 A
Control voltage: 230 V ~ / 24 V =
Lighting: 230 V / 40 W
Additional equipment
Chip conveyor: Integrated inclined belt type
Tooling included: Assorted Garant tool holders, VDI holders, ER collet chucks
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
