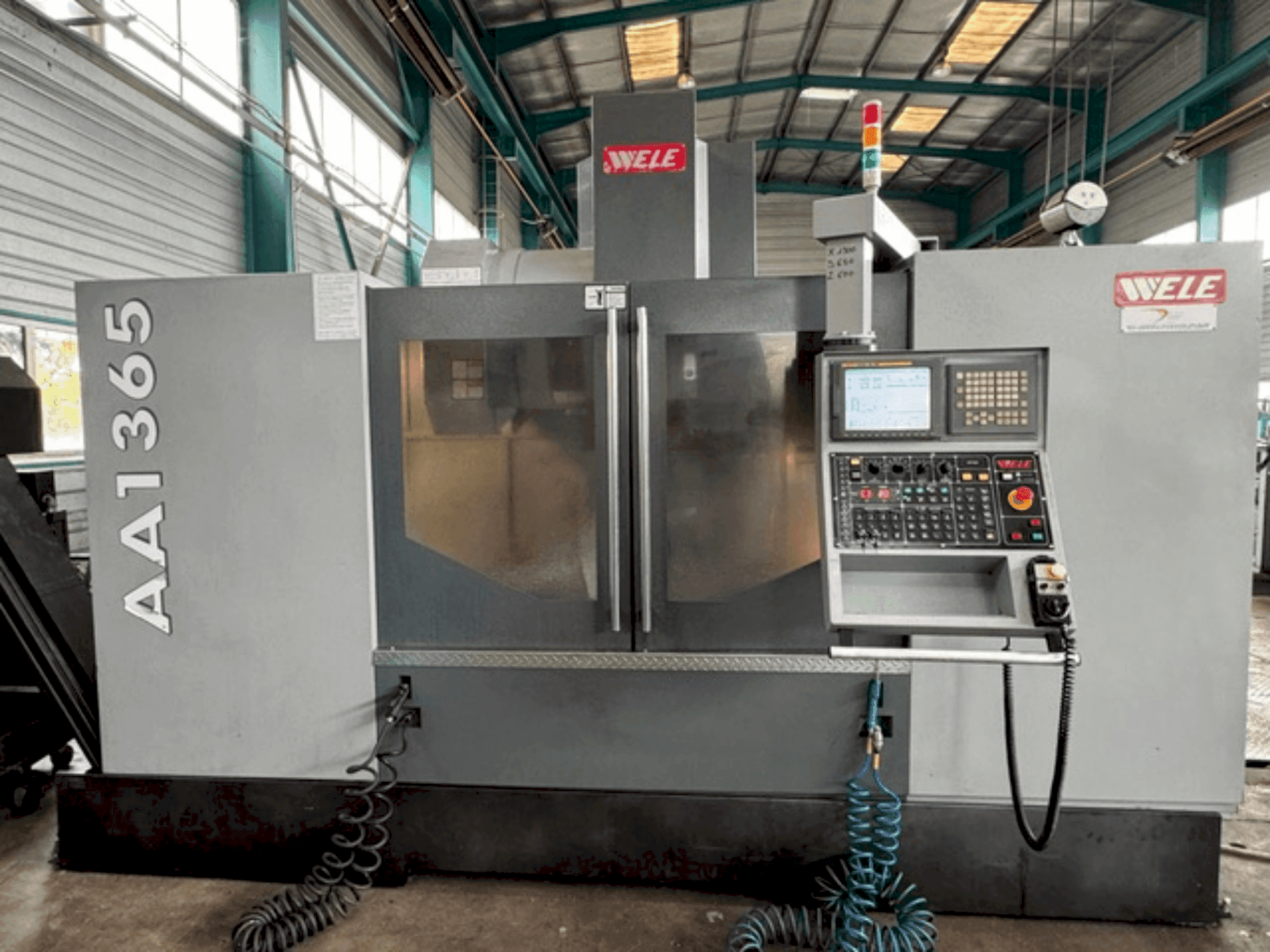

Front view of Wele AA1365  machine

Wele AA1365

Wele - AA1365

2008

Rs. 5,878,150
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-Axis vertical machine centre was manufactured in 2008. With travels of X1300-Y650-Z600 mm, and a 24-station tool magazine, it ensures efficient machining operations. Equipped with a CNC FANUC 18i-MB system and an electronic handwheel, precision is at the forefront. The 20-bar high-pressure hole trough spindle coolant and spindle cooler enhance performance. With visible operation under power and a set of 70 ER & Weldon collet holders included. Consider this WELE AA1365 machine for versatile machining capabilities. Contact us for further information.

Overview

  • brand: Wele
  • year: 2008
  • MODEL: AA1365
  • production hours: 11100
  • application type: Milling
  • Location: France
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: FR-MIL-WEL-2008-00001

Technical Information

General Data

  • Measurements width: 2340 mm
  • Measurements depth: 3650 mm
  • Measurements height: 2940 mm
  • Machine weight: 7600 kg

Control Unit

  • Brand: FANUC
  • Model: 18i-MB

Main drive

  • Number of spindles: 1
  • Spindle speed range: 8000 1/MIN
  • Spindle motor power: 15 KW
  • Tool taper: ISO 40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1300 mm
  • X-AXIS Rapid traverse: 24 m/min
  • Y-AXIS Movement: 650 mm
  • Y-AXIS Rapid traverse: 20 m/min
  • Z-AXIS Movement: 600 mm
  • Z-AXIS Rapid traverse: 20 m/min

Table

  • Table load: 1300 kg

Tools

  • Number of stations: 24
  • Type of tool holder: BT40

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Set of 70 ER & Weldon collet holders, boring bars, milling cutter holders, etc.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Electronic handwheel
        • - Table dimensions: 1450x650 mm
        • - 2-speed gearbox
        • - 20-bar high-pressure hole trough spindle coolant
        • - Air-conditioned cabinet
        • - Chip conveyor + bucket
        • - Spindle cooler
      • Qualitative Machine Benefits:
        • - Visible under power
        • - Very good condition

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
