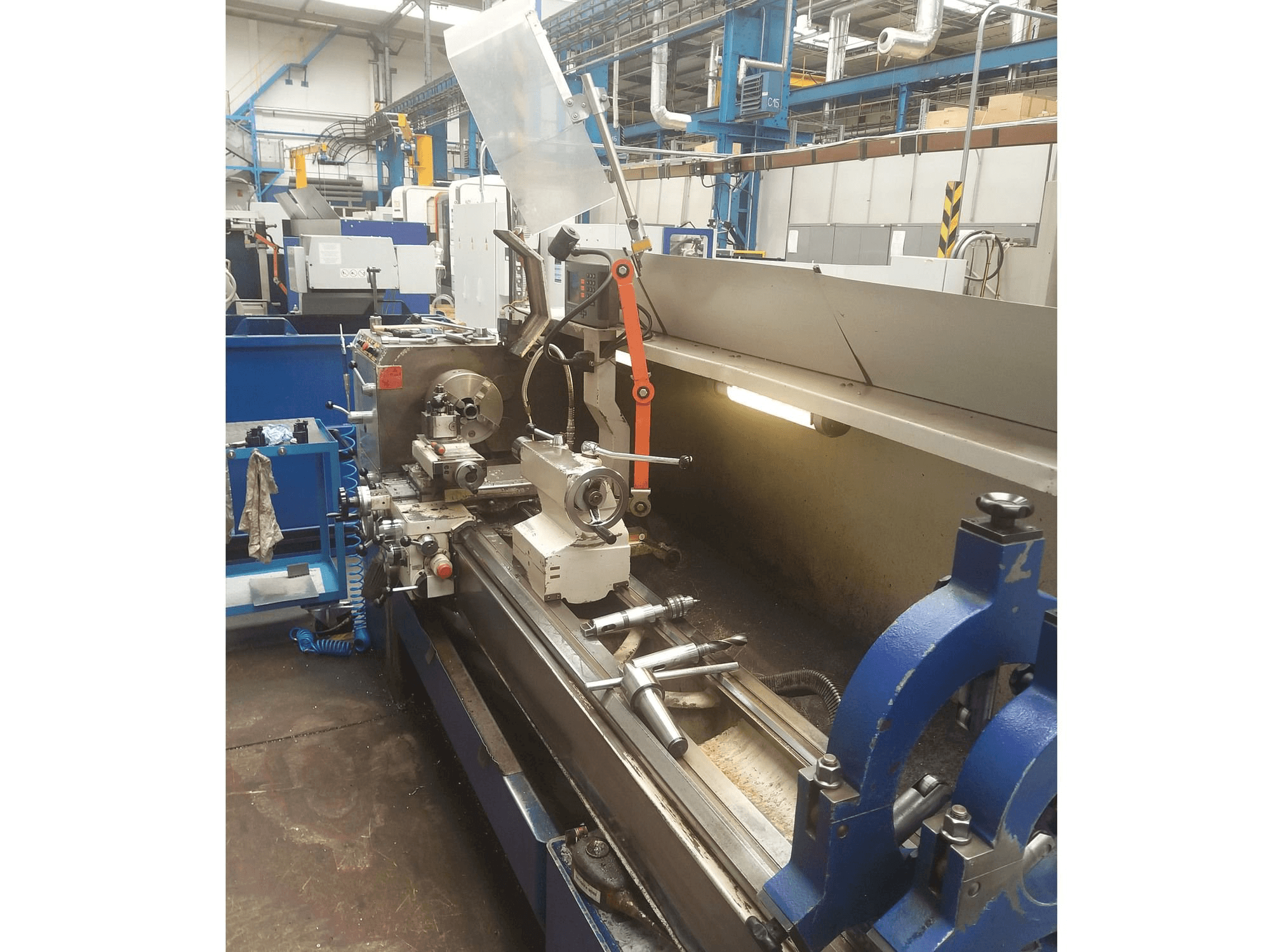

Right side view of Weiler DA 260 AC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Weiler DA 260 AC

Photo Gallery

Weiler - DA 260 ACCZ-TUR-WEI-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Weiler DA 260 AC Lathe

Show in original language

This Weiler DA 260 AC Lathe from 2012 was manufactured in Germany. It is equipped with a Heidenhain control unit. This machine comes with 1 spindle and a spindle speed up to 2000 rpm. It presents very good conditions and a machine manual is included.

Overview

brand: Weiler
year: 2012
MODEL: DA 260 AC
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - Weiler DA 260 AC

General Data

Machine weight: 2200 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 2000 1/MIN

Workpiece

Workpiece weight: 700 kg

Media

Main electronic connection: 3 x 400V/ 50 Hz
Power consumption: 15 kVa

Additional Information

Additional equipment

2x steady rest

Machine Benefits

Qualitative Machine Benefits

Very good condition.

Technical Machine Benefits

Center height 260 mm
Bed width 330 mm
Max. Diameter over bed 535 mm
Max. Diameter over cross-slide 345 mm
Distance between centers 2000 mm
Main motor power 5. 5 kw
Heidenhain digital read-out
Spindle bore 71 mm
Tailstock quill movement 120 mm
Steady rest

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
