➤ Used Weeke Optimat BHP Vantage 34M | CNC Router For Sale

Show in original language

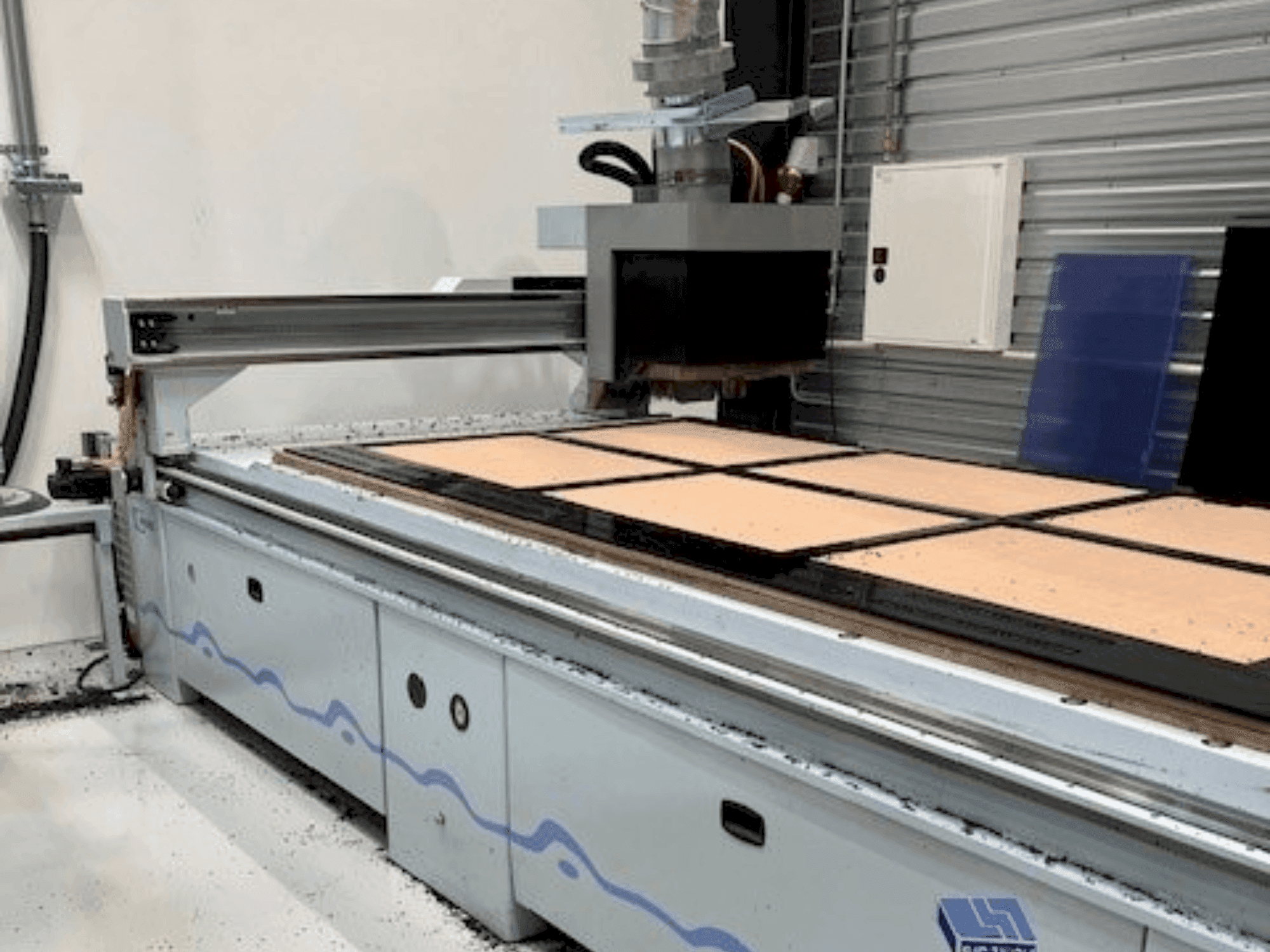

This 3-axis Weeke Optimat BHP Vantage 34M was manufactured in 2008. Ideal for precision CNC routing, this machine offers robust construction and reliable performance. If you are looking to get high-quality routing capabilities, consider the Weeke Optimat BHP Vantage 34M machine we have for sale. Contact us for more information.

Overview

brand: Weeke
year: 2008
MODEL: Optimat BHP Vantage 34M
application type: CNC Wood Machining
Location: Denmark
machine type: CNC Router

Technical Information - Weeke Optimat BHP Vantage 34M

Main drive

Number of spindles: 2
Number of axis: 3

Movement

X-AXIS Movement: 3780 mm
X-AXIS Rapid traverse: 96 m/min
Y-AXIS Movement: 1951 mm
Y-AXIS Rapid traverse: 96 m/min
Z-AXIS Movement: 155 mm
Z-AXIS Rapid traverse: 25 m/min

Additional Information

Machine Benefits

Technical Machine Benefits

Work table dimensions: 3100 x 1550 mm
Max workpiece thickness: 80 mm
Design: stable gantry design with dust-protected linear guide system
Drive technology: maintenance-free motors and automatic central lubrication

Extra Information

Tools Drilling Unit Specs: Spindle Speed: 1500 - 7500 rpm Drive Power: 2.7 kW Max Drill Diameter: 35 mm Milling Spindle Specs: High Spindle Speed: 1250 - 24000 rpm Max Power: up to 7.5 / 9 kW in continuous/intermittent operation (S1/S6-50%) Control Unit Control System: Modern PC-based control Hardware: Operating System: Windows XP Embedded TFT Flat Screen: 17 inches Connectivity: USB, EtherNet 10/100 MBIT RJ45 Table Matrix Table: 10'/5', with grooves for templates and vacuum suction cups Vacuum System: 500/600 m³/h, 50/60 Hz Finally, the machine offers a comprehensive software suite for CNC programming and operation, including woodWOP and 3D NC simulation capabilities.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
