PELCO MECCANICA - MECCANICA CLOUD IT-CNC-OTH-2015-00001

Name: PELCO MECCANICA MECCANICA CLOUD
Brand: PELCO MECCANICA
SKU: IT-CNC-OTH-2015-00001
Price: 2087498 INR
Availability: InStock

Rs. 2,087,498

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used PELCO MECCANICA CLOUD For Sale | gindumac.com

Show in original language

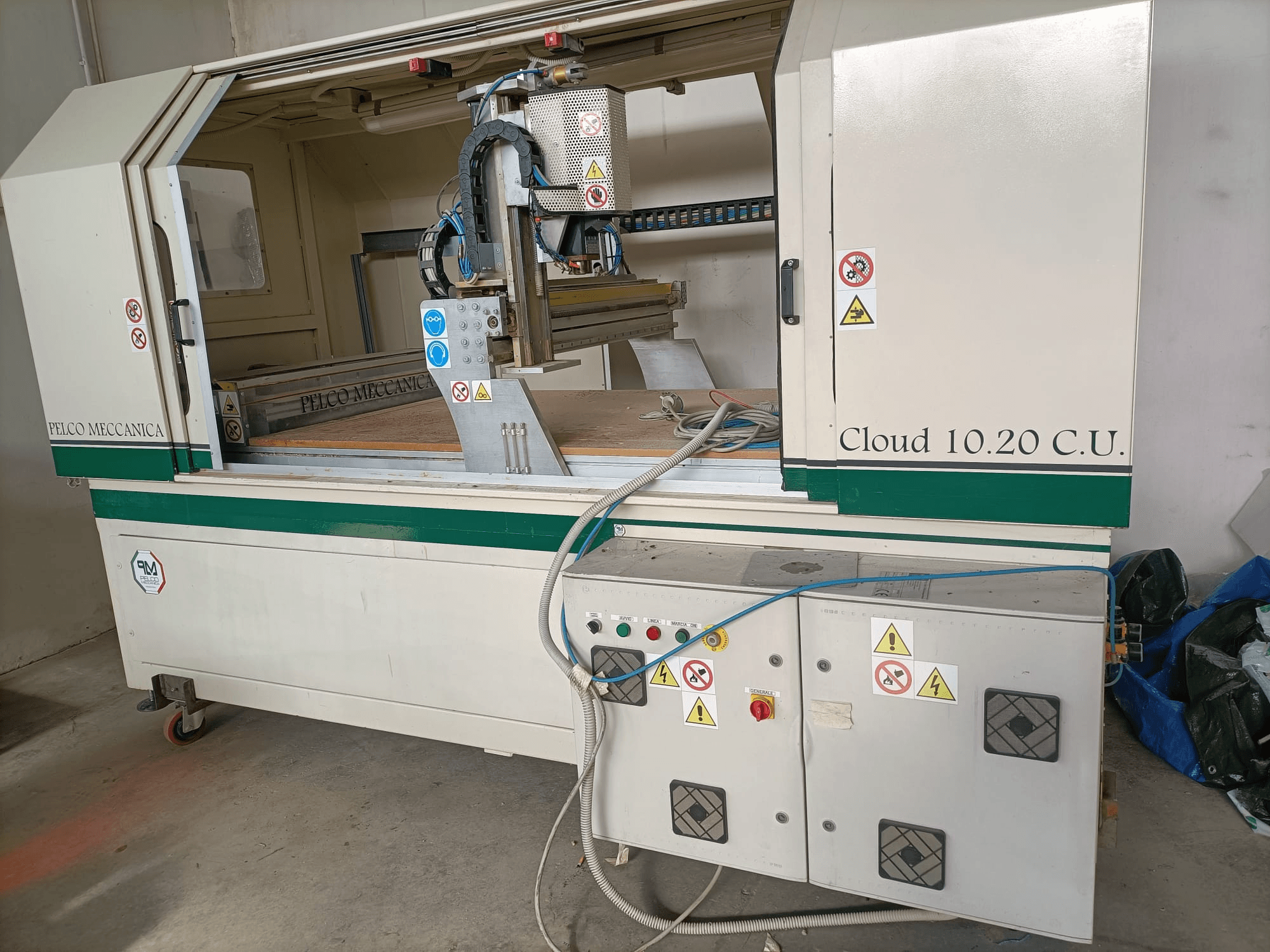

This 3-axis PELCO MECCANICA CLOUD was manufactured in 2015. It features a working area of 2000 × 1000 mm and a Z-axis travel of 250 mm. The machine is equipped with a 12-position tool changer and an electrospindle speed ranging from 2000 to 18,000 rpm. If you are looking to get high-quality machining capabilities, consider the PELCO MECCANICA CLOUD CNC router we have for sale. Contact us for further details.

Overview

brand: PELCO MECCANICA
year: 2015
MODEL: MECCANICA CLOUD
application type: CNC Wood Machining
Location: Italy
machine type: CNC Router

Technical Information - PELCO MECCANICA MECCANICA CLOUD

Movement

Number of Axes: 3
X-axis Travel: 2000 mm
Y-axis Travel: 1000 mm
Z-axis Travel: 250 mm

Technical Specification

Spindle Speed: 18000 RPM

Additional Information

Suitable materials: wood, PVC, plexiglass, polycarbonate, polymers, high-density polyurethane (model making), soft metals
Applications: fast interpolations ideal for 3D machining, cutting, shaping
Feed rate (interpolated): 10 m/min
Tool changer: 12 positions, ISO20
Electrospindle speed: 2000–18,000 rpm
Controls: handwheel for precise positioning; handwheel for feed rate adjustment during machining
Coolant: prepared for mist cooling system (unit not included)
Certification/year: CE, 2015
Power supply: 400 V, 3-phase + neutral
Power consumption: 3.5 kW
Compressed air requirement: minimum 6 bar

Additional equipment

Tool length preset probe
Chip collection tray/conveyor under the table with extraction outlet

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
