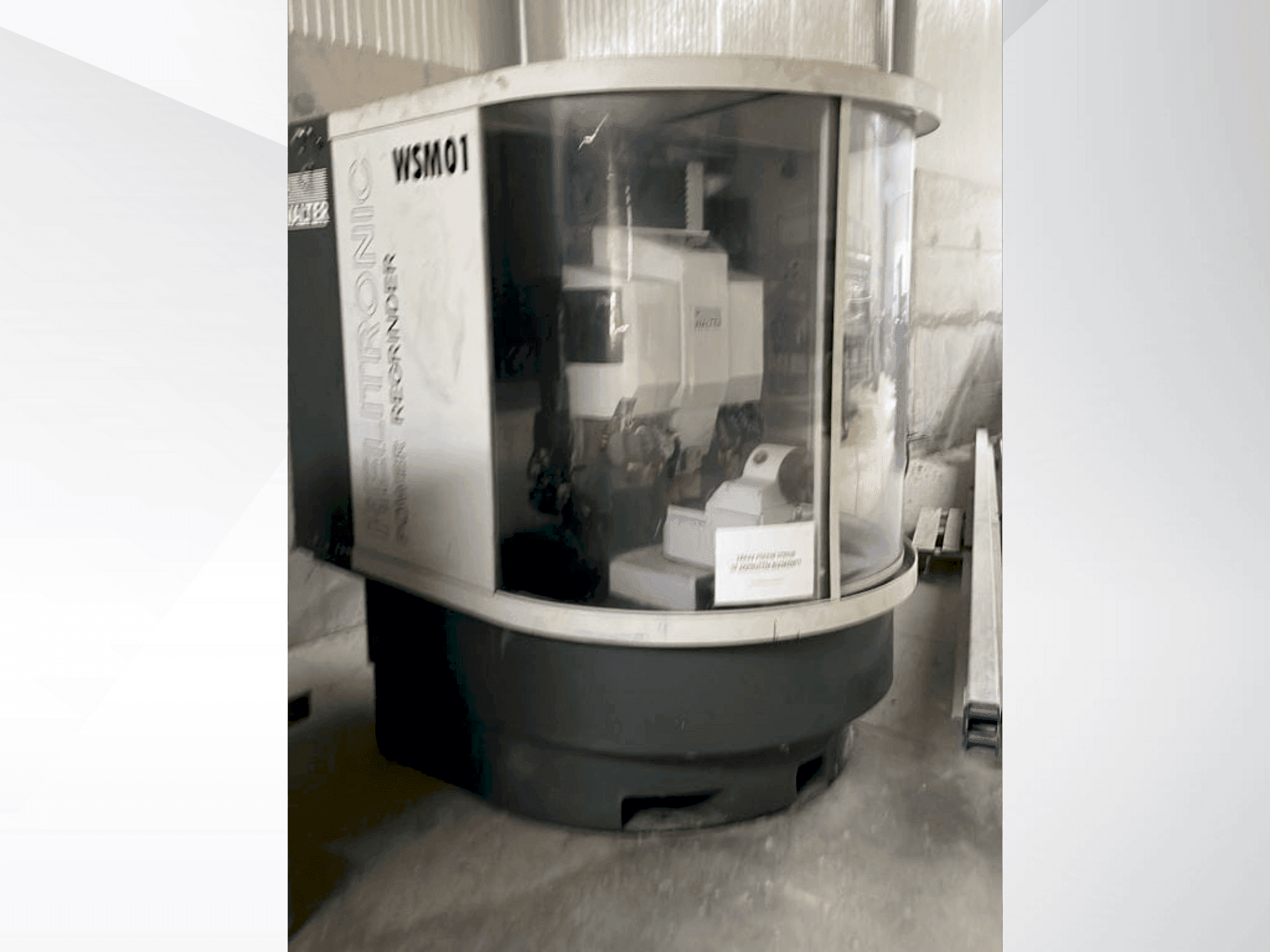

This 5-axis WALTER Helitronic Power Regrinder was manufactured in 2002. It features a robust CNC controller (HMC 500), a grinding wheel speed range of 0 – 9500 rpm, and a spindle speed also up to 9500 rpm. Capable of handling workpieces up to 320 mm in diameter and 350 mm in length for peripheral grinding. Ideal for detailed and precise grinding tasks. If you are looking to get high-quality grinding capabilities consider the WALTER Helitronic Power Regrinder machine we have for sale. Contact us for more information.
Overview
- brand: WALTER
- year: 2002
- MODEL: Helitronic Power Regrinder
- application type: Grinding
- Location: Czech Republic
- machine type: Grinding Machine
- availability: Sold
Technical Information - WALTER Helitronic Power Regrinder
General Data
- Measurements width: 2930 mm
- Measurements depth: 2427 mm
- Measurements height: 2273 mm
- Machine weight: 4600 kg
Controller
- Model: HMC 500
Main drive
- Spindle speed range: 9500 rpm 1/MIN
- Spindle motor power: 25 kW
- Number of axis: 5
Movement
- X-AXIS Movement: 470 mm
- Y-AXIS Movement: 320 mm
- Z-AXIS Movement: 660 mm
Additional Information
- Technical Machine Benefits:
- - Maximum diameter of the workpiece: 320 mm
- - Maximum workpiece length in peripheral grinding: 350 mm
- - Maximum workpiece length in face grinding: 280 mm
- - Grinding wheel speed range: 0 – 9500 rpm
- - Height in the center of the machine (with / without worktable): 145/190 mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
