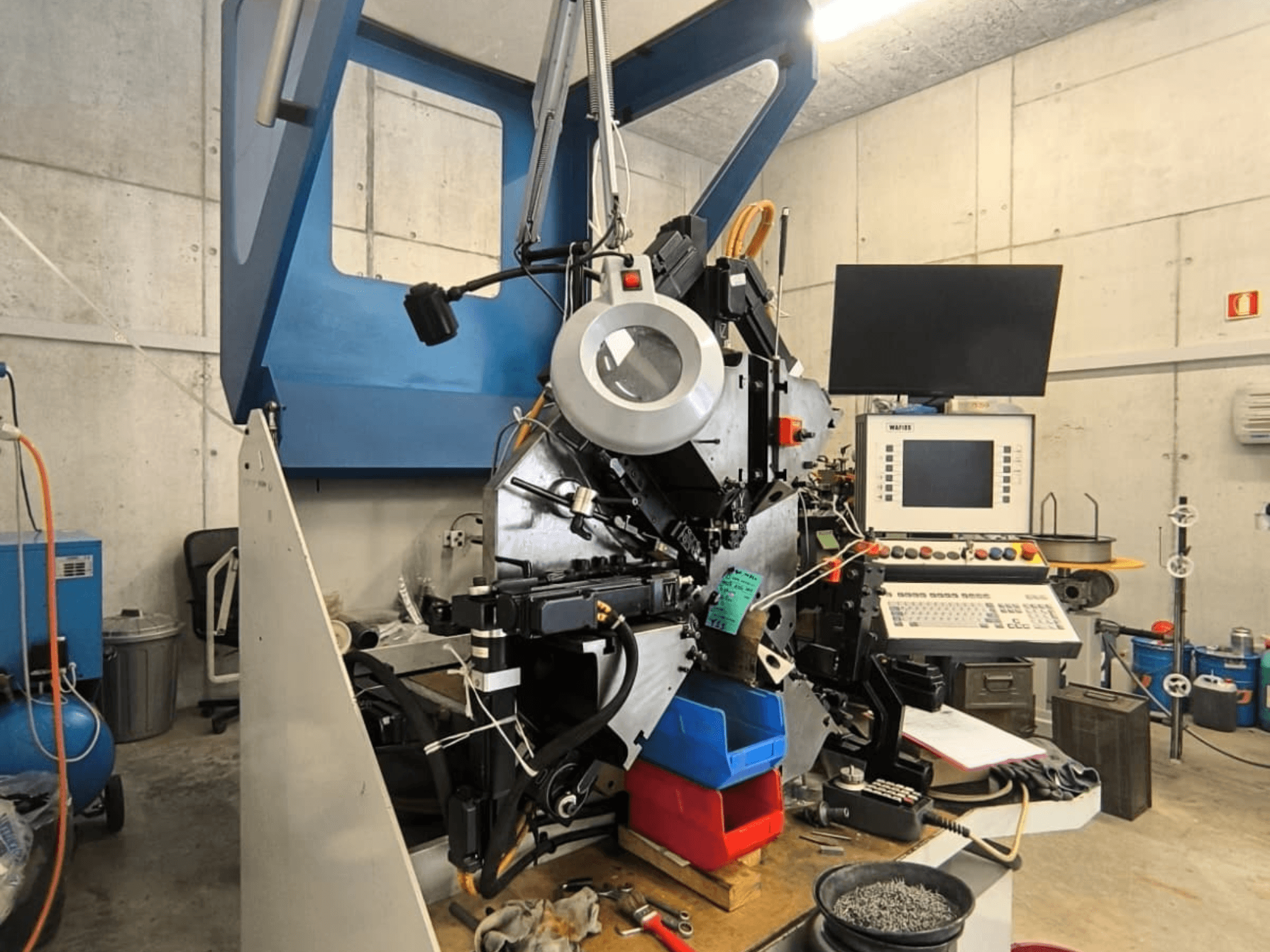

This 3-axis WAFIOS Fmu1 CNC wire coiling and bending machine was manufactured in 2000. It features an integrated CNC control panel with a full physical QWERTY keyboard and a secondary overhead display monitor. The machine includes a circular multi-tooling slide configuration and an integrated wire straightener feed mechanism. If you are looking to get high-quality bending capabilities, consider the WAFIOS Fmu1 machine we have for sale. Contact us for further details.
Overview
- brand: WAFIOS
- year: 2000
- MODEL: Fmu1
- application type: Other Sheet Metal Machinery
- Location: Switzerland
- machine type: Sheet Metal Machine
Technical Information - WAFIOS Fmu1
Dimensions
- Machine Height: 1650 mm
- Machine Length: 1300 mm
- Machine Weight: 1400 kg
- Machine Width: 1600 mm
Movement
- Number of Axes: 3
Technical Specification
- Laser Power: 8 kW
Additional Information
- Phase/Connection: 3 ~
- Voltage: 400 V
- Frequency: 50 Hz
- Control Voltage: 24 V DC / 230 V AC
- Fuse Protection (Amps): 35 A (Main) / 25 A
- Control Interface: Integrated CNC control panel with full physical QWERTY keyboard, function keys, and secondary overhead display monitor.
- Included/Attached Components: Circular multi-tooling slide configuration, integrated wire straightener feed mechanism, workpiece transfer/manipulator station, protective hood enclosure (blue), inspection magnifying lamp, status tower light (Red/Green)
- Application: Production of springs and bent parts
- Operation: Automatic CNC programmable command (7 to 12 axes)
- Wire Diameter Range: 0.4 - 1.6 mm
- Wire Feed Length: Freely programmable, unlimited
- Feed Speed: Max. 100 m/min
- Rotation Length: Max. 68 mm
- Coiling-Bending Unit Stroke: Max. 80 mm
- Programming Precision (Feed C-axis): 0.001 mm
- Programming Precision (Wire Rotation A-axis): 0.005°
- Programming Precision (Coiling Head Y-axis rotation): 0.01°
- Programming Precision (Coiling Head Z-axis longitudinal): 0.001 mm
- Programming Precision (CNC Slides): 0.005 mm
- Programming Precision (Raised CNC Spinner): 0.05°
- Working Height: 1200 mm (wire center)
- Production Rate: Max. 150 pcs/min
- Installed Power: 8 kW
- Air Consumption: Approx. 1 - 8 l/min at approx. 6 bar (depending on accessories)
- Noise Level: Approx. 70 dB/A
- Nominal Operating Voltage Tolerance: -10% / +6%
- Operating Ambient Temperature: +10°C to +50°C
- Transport and Storage Temperature: -10°C to +50°C
- Operating Humidity: Max. 70% relative humidity at 25°C (Spraying not allowed)
- Storage/Transport Humidity: Max. 90% relative humidity
- Height with Open Hood: 2500 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
