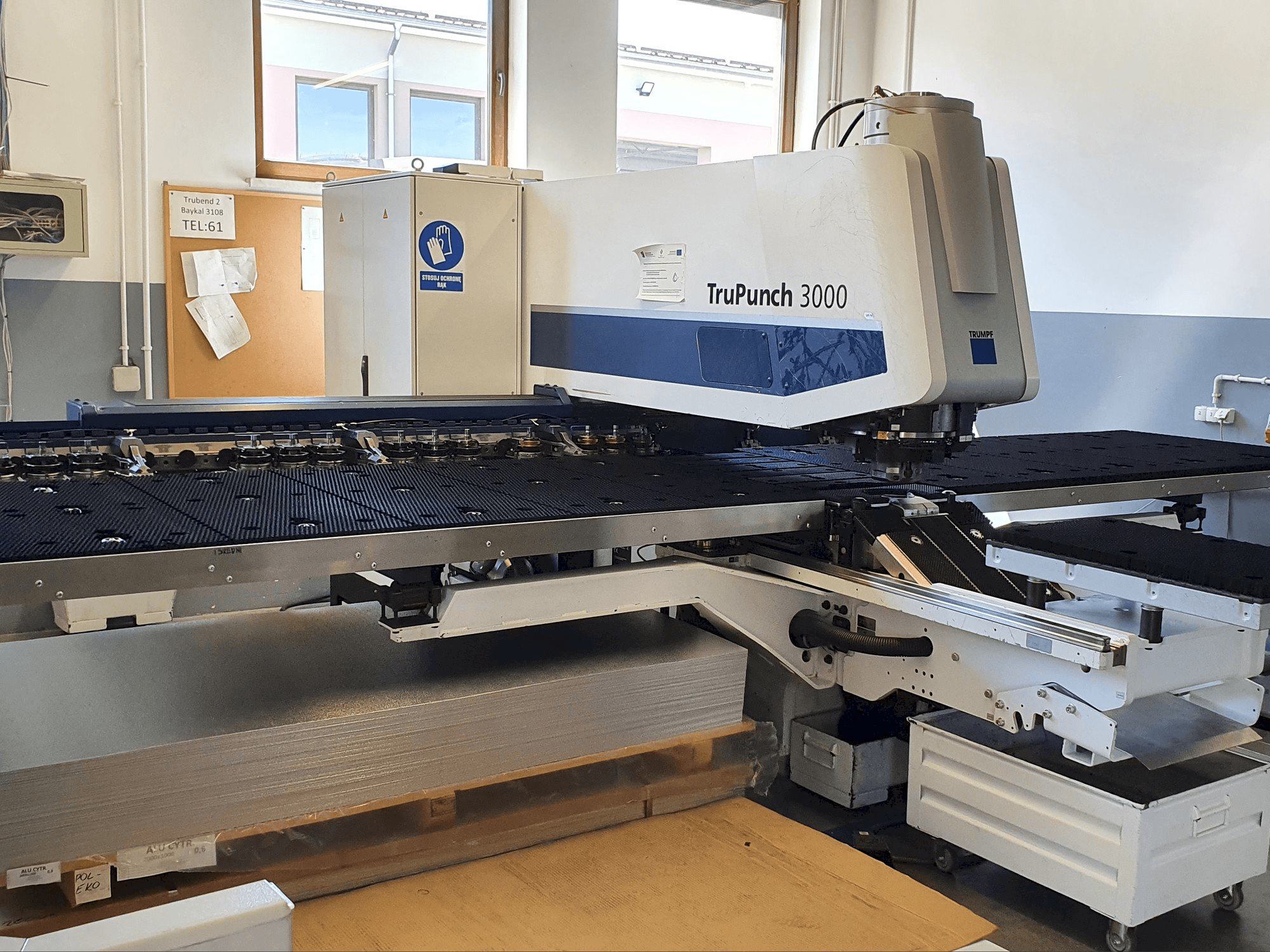

Front view of Trumpf TruPunch 3000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruPunch 3000

Photo Gallery

TRUMPF - TruPunch 3000PL-PUN-TRU-2014-00003

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Trumpf TruPunch 3000 | Punching Machine For Sale

Show in original language

This Trumpf TruPunch 3000 Punching Machine was made in the year 2014. It counts with approximately 15300 production hours since then. It is operated through a BOSCH MTX CMP70 control unit. This machine includes a punching force of 180 kN. During the past, it has mainly worked with material up to 6.4 mm of thickness. It presents very good conditions, it had been serviced by Trumpf.

Overview

brand: TRUMPF
year: 2014
MODEL: TruPunch 3000
production hours: 15300
application type: Punching
Location: Poland
machine type: CNC Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF TruPunch 3000

Control Unit

Model: MTX CMP70
Brand: BOSCH

Main drive

Punching force: 180 kN

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Table

Table load: 160 kg

Additional Information

Machine history

Material thickness: 6. 4 mm

Machine Benefits

Technical Machine Benefits:
- - Maximum speeds: x axis 90 m / min, y axis 60 m / min
- - X and y axes simultaneously 108m / min
- - Number of strokes with a 1 mm stroke when punching 1000 1 / min
- - Number of strokes with a 25mm stroke when punching 460 1 / min
- - 17 tool stations
- - 3 clamps for metal sheet fastening
- - 360 ° rotation of all tools (full rotation)
- - Tool change time single tool 3. 1 sec, multitool 0. 5 s
- - Max cutting diameter 76. 2mm for all tools
- - Max forming height 25mm
Qualitative Machine Benefits:
- - Perfect conditions
- - Always servicing by trumpf poland

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
