AMADA - Vipros 358 KingDE-PUN-AMA-1998-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used AMADA Vipros 358 King For Sale | gindumac.com

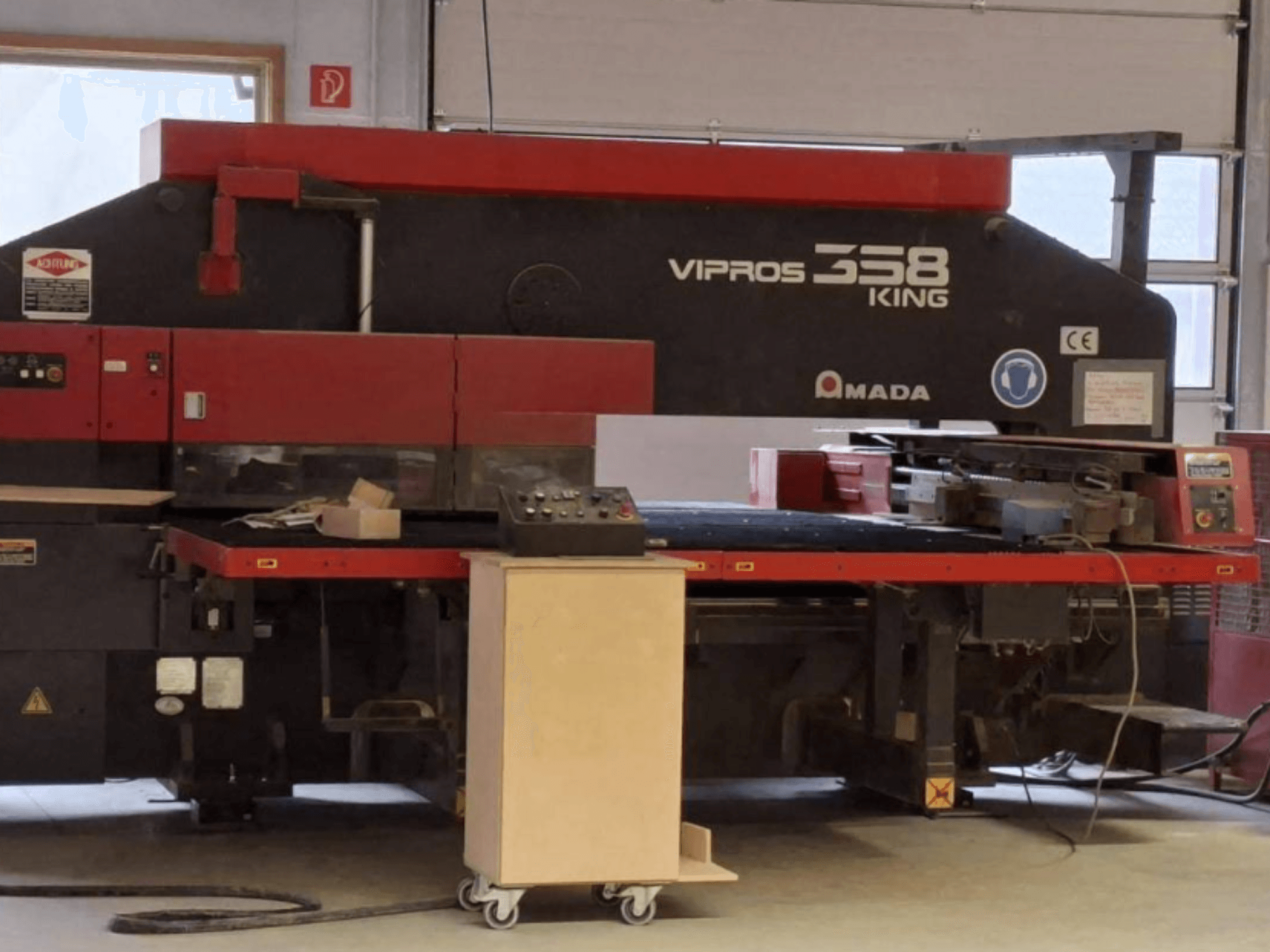

CNC punch press manufactured in 1998. This AMADA Vipros 358 King features a maximum workpiece length of 4,000 mm and a maximum workpiece width of 1,270 mm. It offers a punching force of 300 kN and a maximum stroke of 40 mm. If you are looking to get high-quality punching capabilities, consider the AMADA Vipros 358 King machine we have for sale. Contact us for further details.
Overview
- brand: AMADA
- year: 1998
- MODEL: Vipros 358 King
- application type: Punching
- Location: Germany
- machine type: CNC Punch Press
- control unit brand: FANUC
Technical Information - AMADA Vipros 358 King
Control Unit
- Control Brand: FANUC
Dimensions
- Machine Height: 3050 mm
- Machine Length: 8300 mm
- Machine Weight: 16000 kg
- Machine Width: 6500 mm
Movement
- Number of Axes: 2
- X-axis Travel: 4000 mm
- Y-axis Travel: 1270 mm
Technical Specification
- Max. Sheet Thickness: 3.2 mm
- Punching Force: 300 Kn
Additional Information
- Max. Workpiece Length: 4,000 mm
- Max. Workpiece Width: 1,270 mm
- Max. Workpiece Height: 3.2 mm
- Max. Punching Force: 300 kN
- Max. Stroke: 40 mm
- Max. Feed Rate: 80 m/min
- Infinitely Variable Feed Rate: Yes
- Control Unit: FANUC
- Declaration of Conformity: Yes
- Conformity Marking: CE Mark
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
