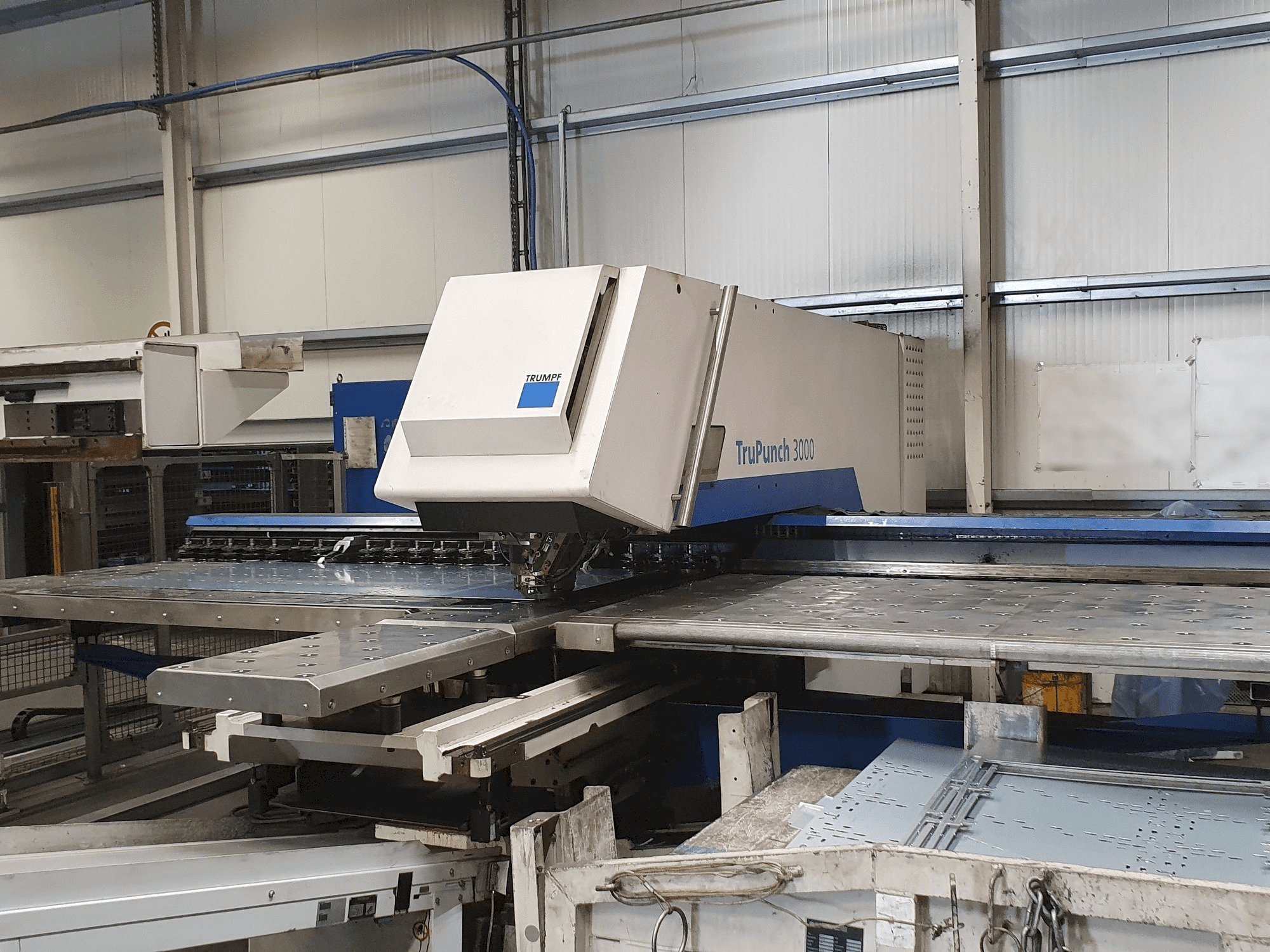

Front view of Trumpf TruPunch 3000 machine
Front view of Trumpf TruPunch 3000 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - TruPunch 3000PL-PUN-TRU-2007-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trumpf TruPunch 3000 Punching Machine was built in Germany in the year 2007. It has been working for 60951 hours. It is equipped with a control unit of the same brand. This machine work with a punching force of 180 kN. It can work with a maximum thickness of processed sheet metal 6.4 mm.

Overview

  • brand: TRUMPF
  • year: 2007
  • MODEL: TruPunch 3000
  • production hours: 60951
  • application type: Punching
  • Location: Poland
  • machine type: CNC Punch Press
  • control unit brand: TRUMPF

Technical Information - TRUMPF TruPunch 3000

Control Unit

  • Control Brand: TRUMPF

Dimensions

  • Machine Depth: 6500 mm
  • Machine Height: 2230 mm
  • Table Length: 2500 mm
  • Table Load: 150 kg
  • Table Width: 1250 mm

Technical Specification

  • Punching Force: 180 Kn

Additional Information

Machine Benefits

Technical Machine Benefits

  • Max. Number of strokes per min 900 1/min.
  • Max. Marking speed 2200 1/min.
  • Number of tool seats 19 pcs.
  • Tool change time 0. 5 sec.
  • Max thickness of processed sheet metal 6. 4 mm.
  • Active functions: sheet deformation sensor, tapping, marking, multibend, multishear
  • Tank heating with hydraulic oil
  • Softpunch functions
  • Stripline-programmable manually
  • Foundation are on damping elements

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
