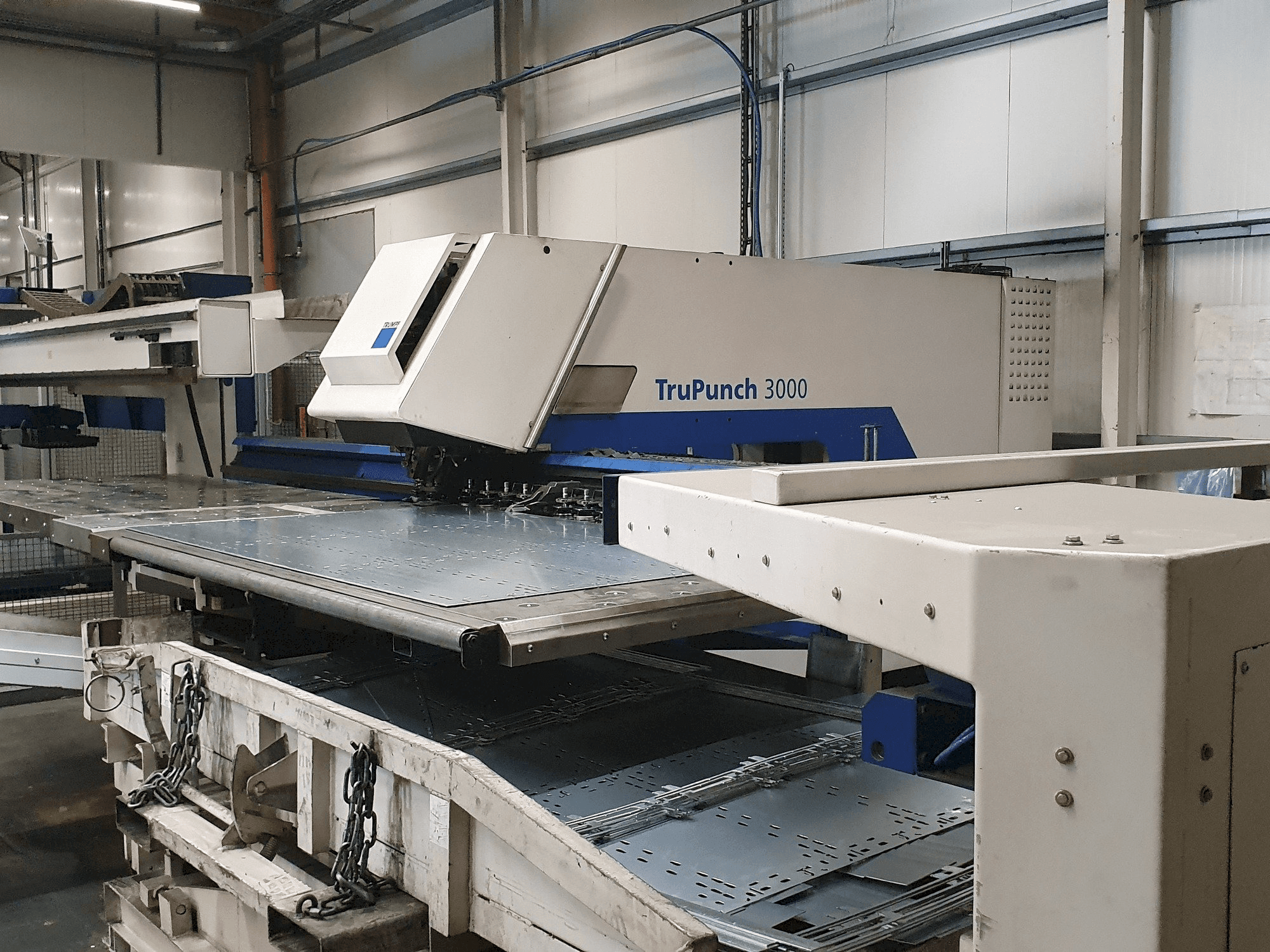

Front view of Trumpf TruPunch 3000 Sheet Master machine
Front view of Trumpf TruPunch 3000 Sheet Master machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - TruPunch 3000 Sheet MasterPL-PUN-TRU-2008-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trumpf TruPunch 3000 Sheet Master Punching Machine was made in Germany in the year 2008. It has 59704 working hours. It is cotrolled with a control unit of the same brand. This machine perform with a punching force of 180 kN. It include a sheet master, a double carriages for sheet master for sheets: 1250x2500mm, a sort master, a grip master, a chip conveyor with tipping container, and a conveyor for finished parts as additional equipment.

Overview

  • brand: TRUMPF
  • year: 2008
  • MODEL: TruPunch 3000 Sheet Master
  • production hours: 59704
  • application type: Punching
  • Location: Poland
  • machine type: CNC Punch Press

Technical Information - TRUMPF TruPunch 3000 Sheet Master

General Data

  • Measurements width: 6282 mm
  • Measurements depth: 6548 mm
  • Measurements height: 2200 mm

Main drive

  • Punching force: 180 kn

Table

  • Outer length: 2500 mm
  • Outer width: 1250 mm
  • Table load: 150 kg

    Additional Information

    Additional equipment

    • Sheet Master
    • Double carriages for Sheet Master for sheets: 1250x2500mm
    • Sort Master
    • Grip Master
    • Chip conveyor with tipping container
    • Conveyor for finished parts

    Machine Benefits

    Technical Machine Benefits

    • Max number of strokes per min 800 1/min
    • Max marking speed 1000 1/min
    • Number of tools: 18 pcs
    • Tool change time 0. 5 sec.
    • Max thickness of processed sheet metal 6. 4 mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
