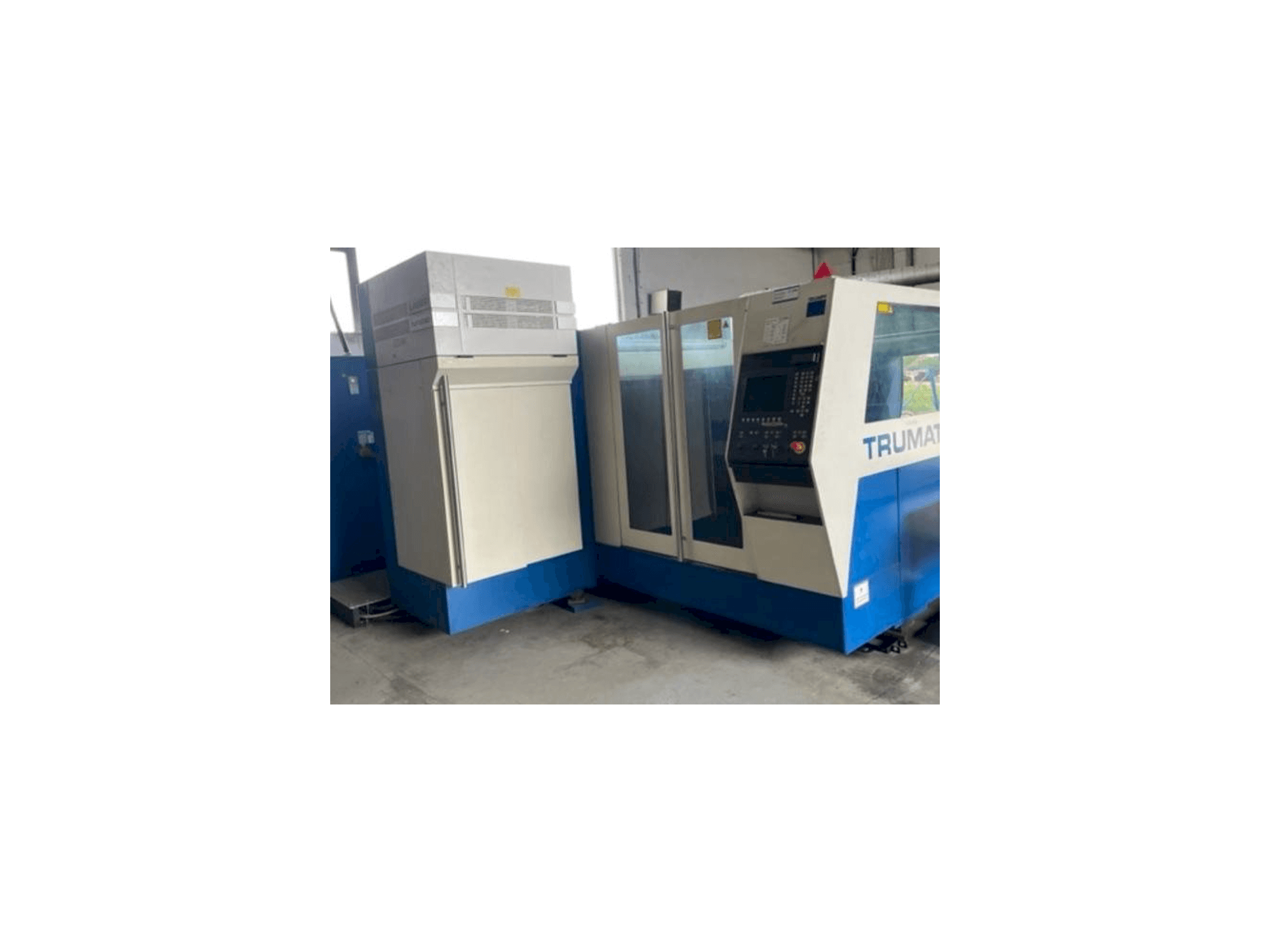

Front view of TRUMPF Trumatic L3050 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic L3050

Photo Gallery

TRUMPF - Trumatic L3050RS-LAS-TRU-2003-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ For Sale: Used Trumpf Trumatic L3050 Cutting Machine

Show in original language

This Trumpf Trumatic L3050 Laser Cutting machine was manufactured in the year 2003 in Switzerland and has 65101 production hours, of which 19579 are laser cutting hours. It is equipped with a TRUMPF CNC control unit and has 2 axis. The machine has a laser power of 5,0 kW.

Overview

brand: TRUMPF
year: 2003
MODEL: Trumatic L3050
production hours: 65101
application type: Cutting
Location: Serbia
machine type: CO2 Laser Cutting Machine
control unit brand: TRUMPF

Technical Information - TRUMPF Trumatic L3050

Control Unit

Control Brand: TRUMPF
Control Model: CNC

Dimensions

Machine Depth: 11100 mm
Machine Height: 2400 mm
Machine Weight: 12000 kg
Table Length: 3000 mm
Table Width: 1500 mm

Movement

Number of Axes: 2
X-axis Travel: 3000 mm
Y-axis Travel: 1500 mm

Technical Specification

Laser Power: 5 kW

Additional Information

Machine Benefits

Qualitative Machine Benefits

Average position spread: 0. 03 mm
Base: sinumerik 8400
Tlf co-laser
Guaranteed maximum power (programmable in 1% steps): tlf 5000 - 5000 w
Wavelength: 10. 6 μm
Beam mode: tem 00
Consumption: laser gas: n
Cutting gas: 61 h
Laser cooling: 131 h
Electric consumption of the entire system, approximately: 500-2000 kwh - closed cooling system: 33 - 72 kw

Technical Machine Benefits

Maximum workpiece weight: 900 kg
Maximum sheet thickness
Structural steel: 25 mm
Stainless steel: 20 mm
Aluminum: 12 mm
Maximum axis speeds:
Longitudinal axis: 200 m/min
Transverse axis: 300 m/min
Smallest programmable path: 0. 01 mm
Position deviation: 0. 1 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
